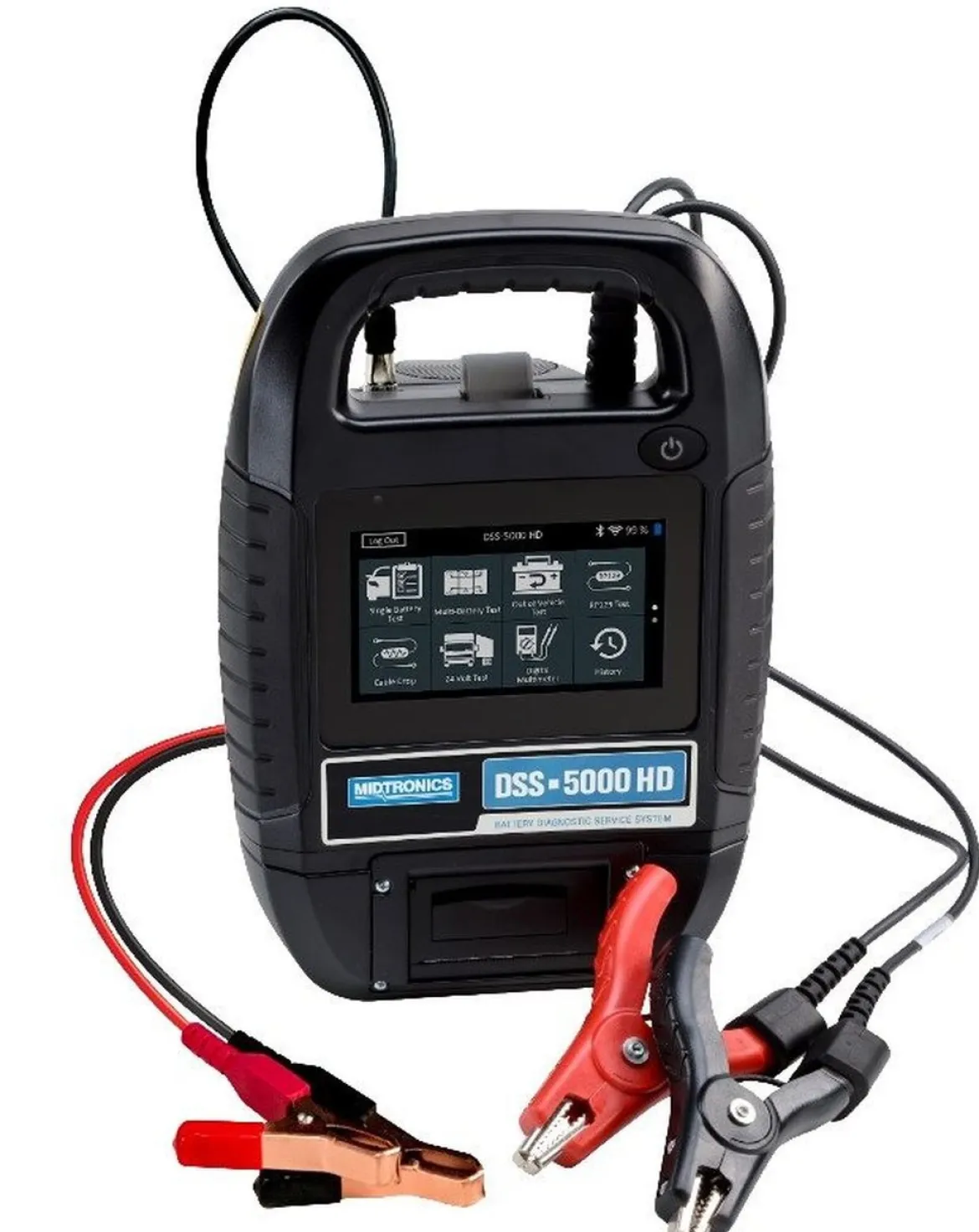

Midtronics Commercial Truck and Fleet Battery System Analyzer (DSS-5000)

Midtronics Commercial Truck and Fleet Battery System Analyzer (DSS-5000 HD) is a sophisticated tool designed for heavy-duty vehicle diagnostics. Equipped with advanced Conductance Profiling™ technology, it accurately assesses battery health and system performance for 12V and 24V systems. The device simplifies complex diagnostics with pre-programmed service apps and intuitive interfaces, improving accuracy and reducing time spent on testing.

• Models / Part Numbers
  • DSS-5000HD

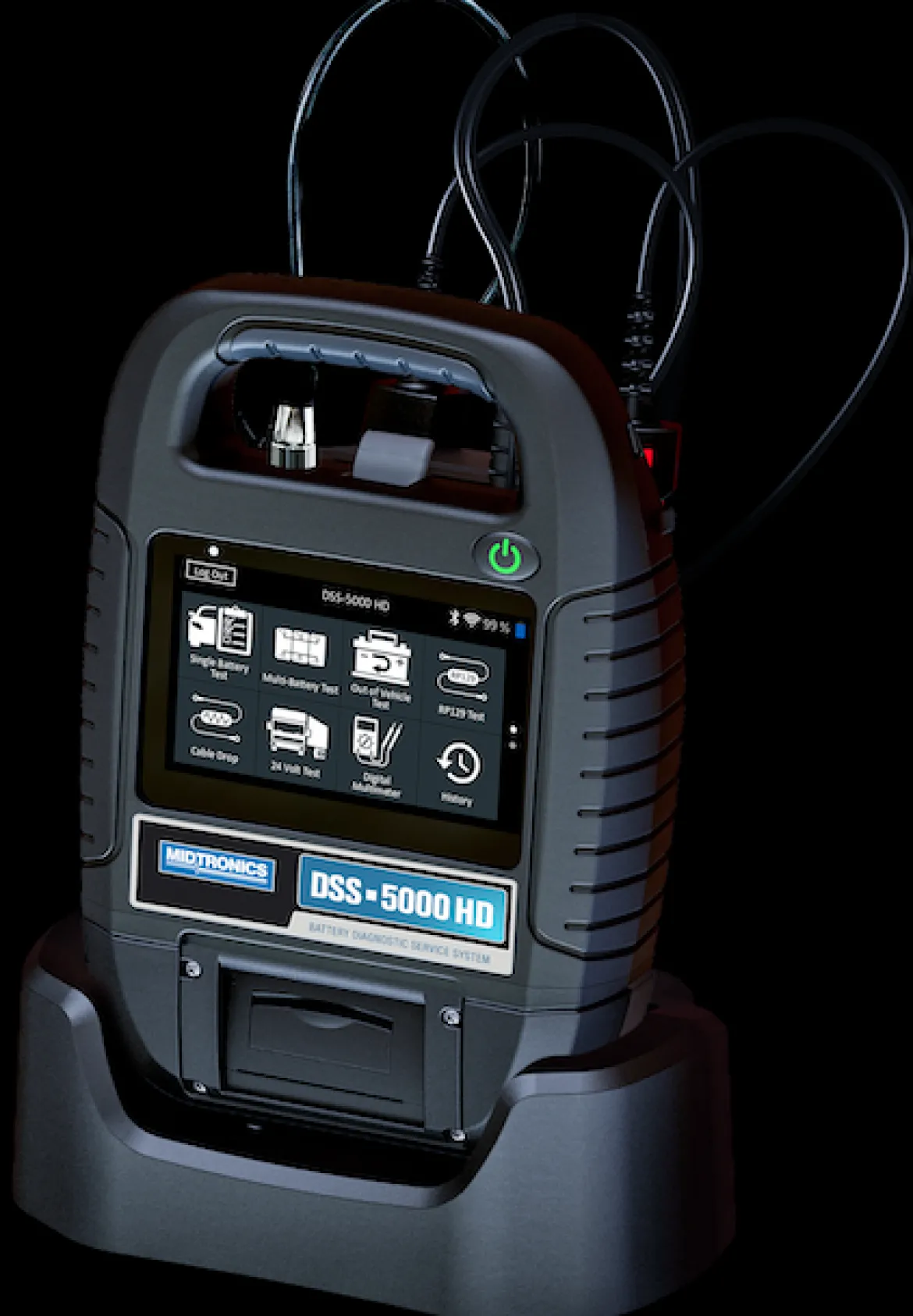

    • Includes Tester and Charging Dock
  • DSS-5000HD Kit
    • Includes tester, Charging Dock, and Amp Clamp
  • DSS-5000PHD Kit
    • Includes Tester with Integrated Printer, Charging Dock and Amp Clamp
• Specifications and Dimensions:
  • Supports RP 129 for electrical diagnostics
  • Battery Types Supported: Conventional lead acid, EFB, AGM, Pure Lead
  • Testing Capabilities: 12 and 24-volt systems, including battery pack, starter, and alternator diagnostics

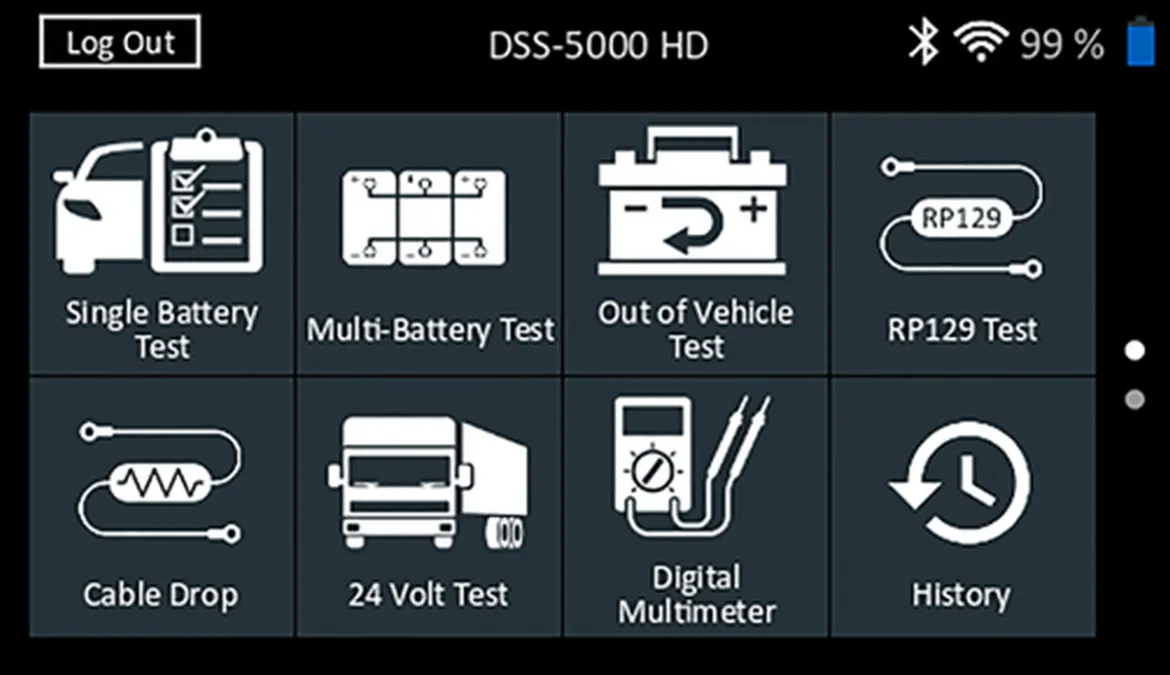

  • Display: 5-inch full-color touchscreen
  • Communication: Wi-Fi 2.4 GHz 802.11 b/g/n, Class 2 Bluetooth
  • Test Leads: 3-meter field-replaceable heavy-duty leads
  • Battery Ratings: CCA, CA, MCA, JIS, DIN, SAE, IEC, EN
• Benefits:
  • Reduces diagnostic times with on-vehicle battery pack testing
  • Delivers enhanced diagnostics, reducing the need for retests
  • Improves reliability with detailed battery reserve capacity warnings
• Features:
  • Conductance Profiling™ for loading and testing battery capabilities
  • Print test results via built-in Wi-Fi on a networked printer
  • Includes multimeter cable for accurate cable drop testing
  • Optional accessories: amp clamp, integrated printer, and more

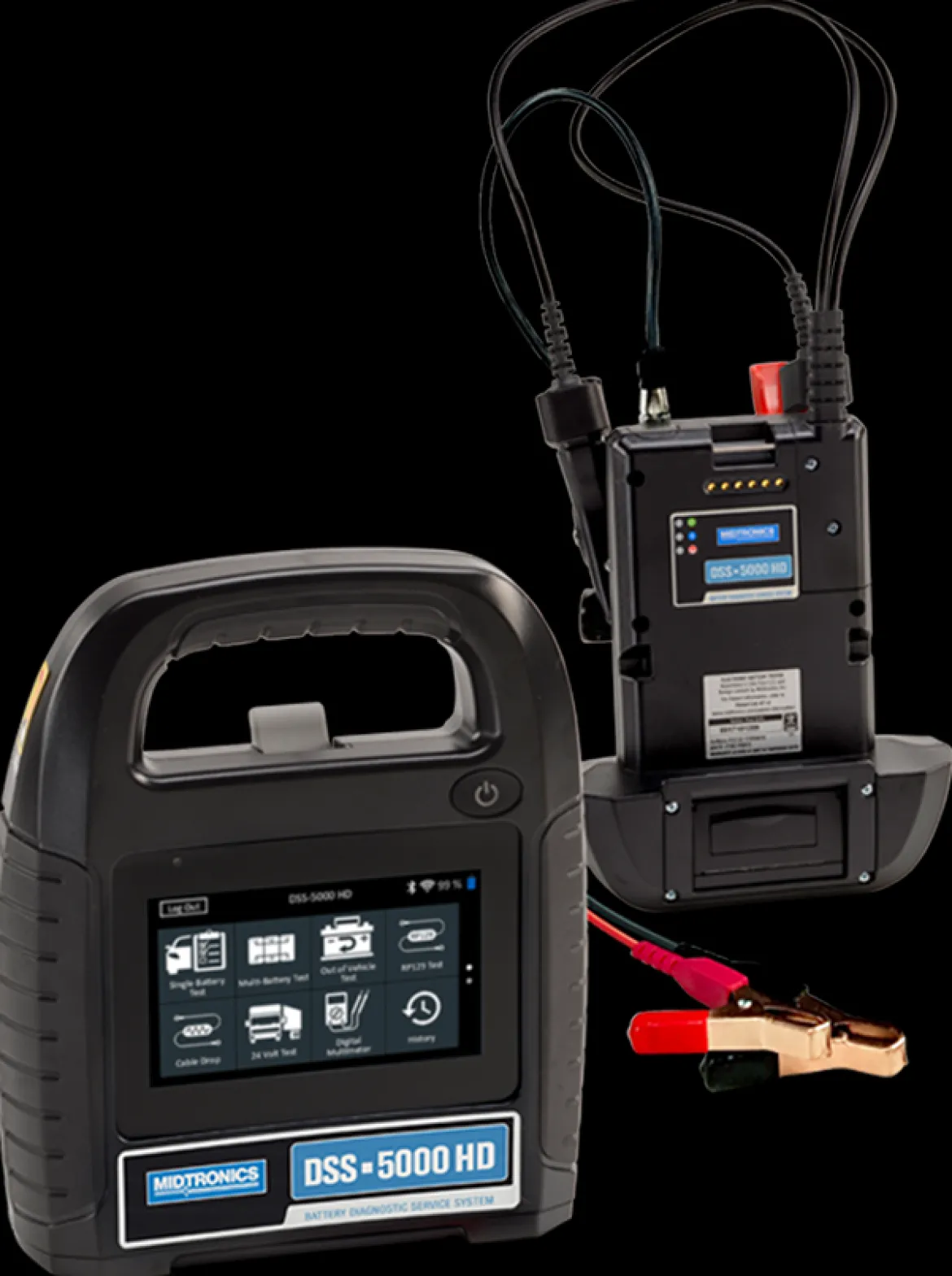

  • Durable design with a detachable controller, tester pod, and charging dock
