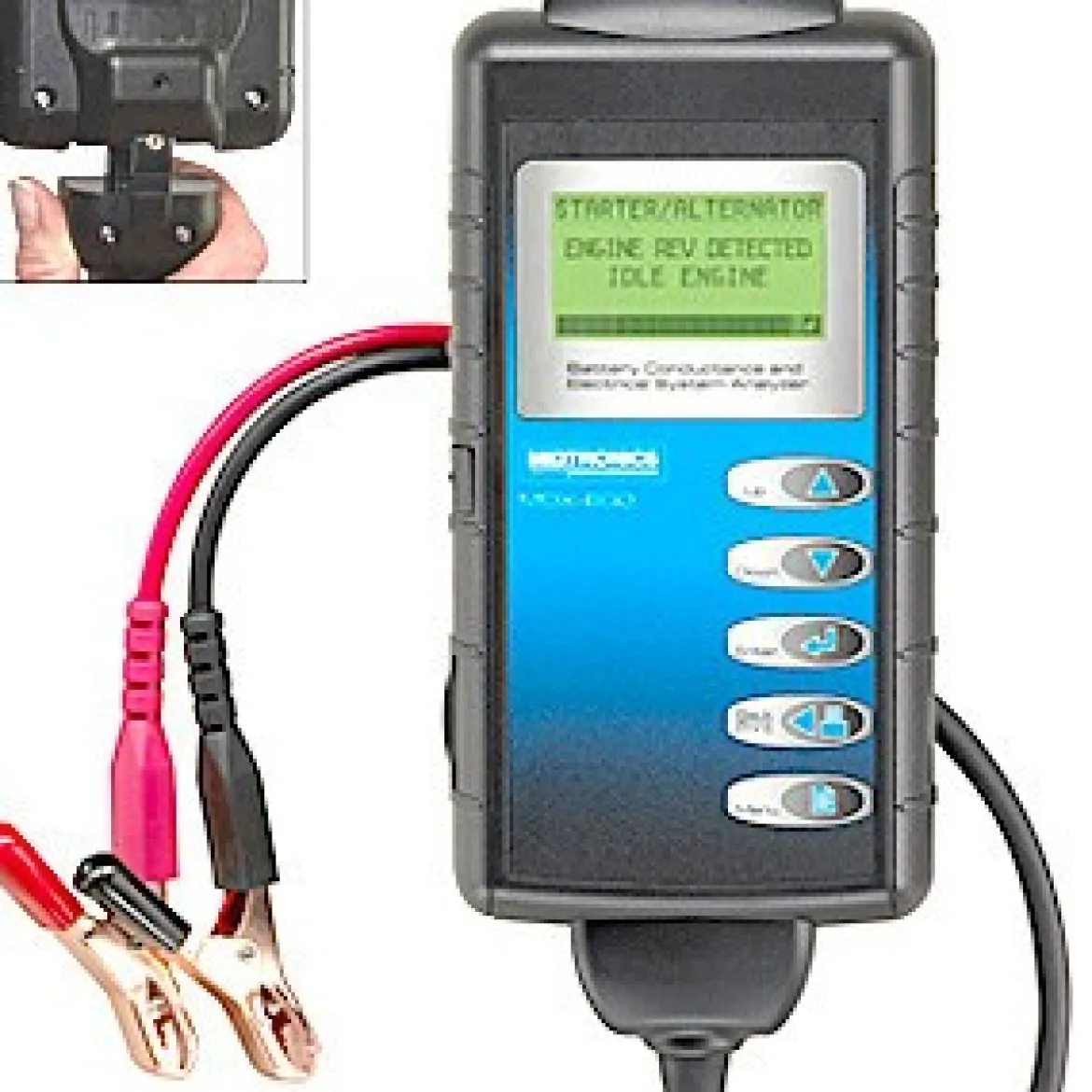

Midtronics 6/12V Battery and Electrical System Tester (MDX-650)

Midtronics MDX-650 6/12V Battery and Electrical System Tester offers quick starter analysis without disabling the ignition. Its advanced menu-driven interface enables complete charging system analysis in seconds, catering to automotive, motorcycle, marine, and lawn & garden applications. With versatile battery compatibility and global systems support, it’s a comprehensive diagnostic tool for professional use.

• Specifications and Dimensions:
  • Display: 5-line Text/Graphical Backlit Display
  • Operating Temperature: 0C to +50C (32F to +122F)
  • Voltage Range: 1Vdc – 30Vdc
  • Cable Length: 10/305cm
  • Power Requirements: Uses the power of the battery under test and 6 AA Internal Batteries
  • Languages: English, Spanish, French Canadian, Portuguese
  • Housing Material: Acid resistant ABS plastic
  • Dimensions: 27cm x 5cm (10.6 x 3.9 x 2.4)
  • Weight: 544g (1.2 lbs.)
• Benefits:
  • Quick starter analysis without ignition disablement
  • Comprehensive charging system analysis
  • Versatile compatibility with various battery types
• Features:
  • Vehicle Applications: Automotive, Motorcycle, Marine, Lawn and Garden
  • Battery Type: Regular flooded, AGM flat plate, AGM spiral, and Gel
  • Global Systems: CCA, CA, MCA, JIS, SAE, EN, DIN, IEC 6 and 12 volt batteries
  • Large back-lit display
  • Data card reader for future software upgrades
  • Removable cable sets for convenience
  • QC MODE for quality control testing
  • Multiple Languages
  • COUNTER Information for activity tracking
