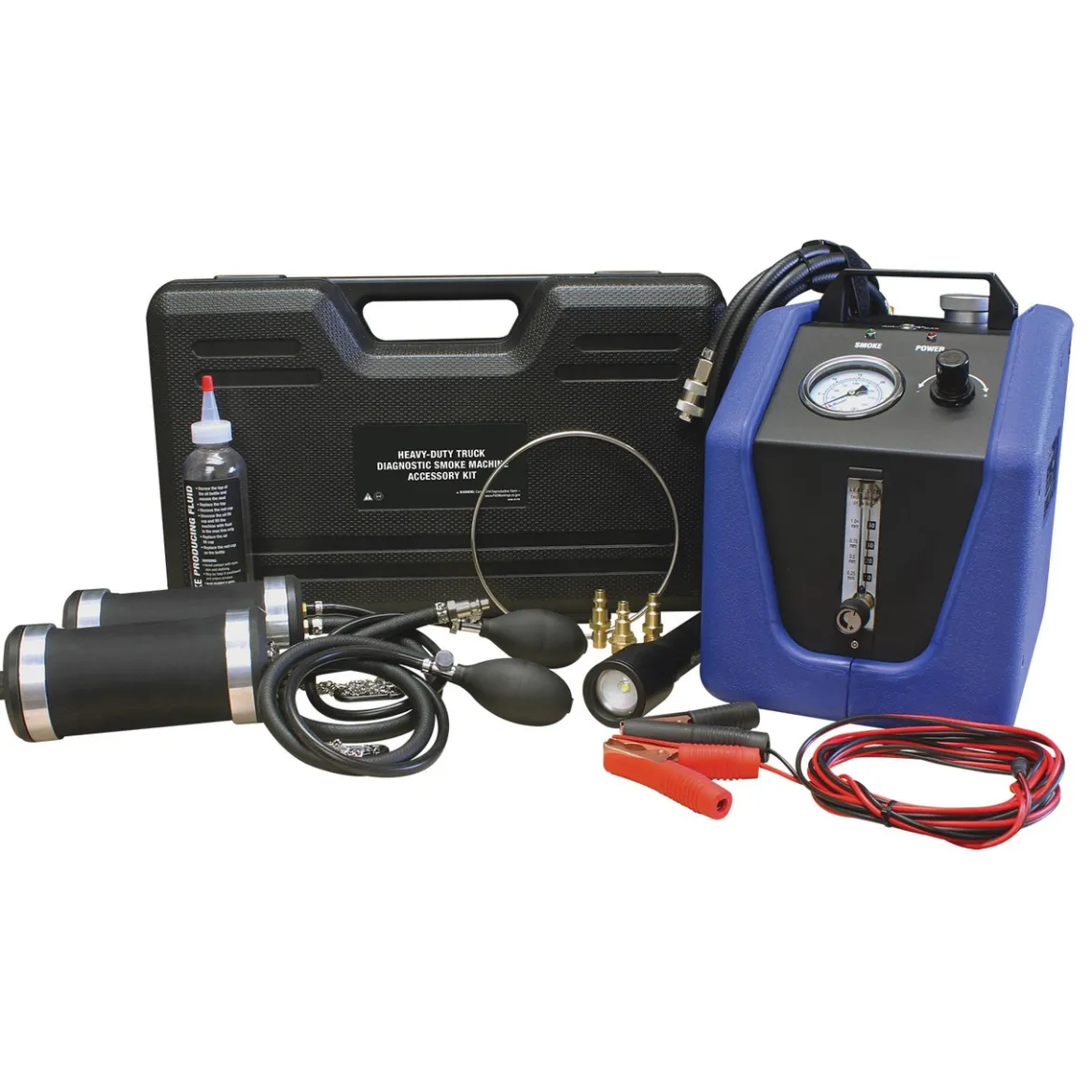

Mastercool Heavy Duty Truck Diagnostic Smoke Machine (43060-HD)

Mastercool Heavy Duty Truck Diagnostic Smoke Machine (43060-HD)

The Mastercool 43060-HD Heavy Duty Truck Diagnostic Smoke Machine is a powerful tool designed for identifying leaks in heavy-duty truck systems. It is ideal for thorough checks of truck intakes, exhausts, vacuum lines, cabin air, and water leaks. This versatile diagnostic tool is equipped to handle the rigorous demands of professional use but is not suitable for EVAP testing.

This unit comes with a variety of high-quality accessories that enhance its utility and effectiveness. From large inflatable block-off bladders with safety chains to various adapter types and a high-intensity smoke illuminating flashlight, this machine is ready to tackle any diagnostic challenge in heavy-duty vehicles.

Key Features & Benefits:

• Versatile Use: Effective for diagnosing various components in heavy-duty trucks, including intakes, exhausts, and vacuum lines.
• Accessories Included:
  • Two large inflatable block-off bladders with safety chains.
  • Rigid smoke stack ring, pressure sensor, oxygen sensor, and temperature sensor port adapters.
  • High intensity battery-powered smoke illuminating flashlight.
  • 8 oz of smoke producing fluid for extensive testing.
• Durable and Compact: Designed for longevity with a heavy-duty build, yet compact enough for easy handling and storage.
• Fast Smoke Generation: Quickly produces smoke, speeding up the diagnostic process.
• Safety Features: Built-in pressure relief valve and adjustable pressure from 0 to 28 PSI ensure safe operation.
• Readability: Features a large, easy-to-read pressure decay gauge ranging from 0 to 30 PSI.
• Eco-Friendly: Utilizes non-toxic and non-corrosive smoke, making it safe for varied environments.
• Extended Reach: Includes 10’ smoke injection hose and 10’ 12V power cables with durable clamps.
• Convenient Storage: Velcro strap for secure hose and power cable management.

Specifications:

• Voltage: 12 VDC
• Input Pressure: Max 100 psi (8.2 bar)
• Output Pressure: Max 28 psi (190 kPa)
• Safety Pressure Relief: 120 (±5) psi
• Oil Fill Line Indicator: 3.4 oz (100 ml ±10 ml)
• Flow Meter: 0 – 0.040 in. (0 – 1.0 mm)
• Dimensions: 11.8 x 8.1 x 11 in (300 x 205 x 280 mm)
• Weight: 11.5 lbs (5.2 Kg); Shipping Weight: 22 lbs (10 Kg)
• Power Consumption: Max 6.5 Amps
• Operating Conditions: Operates effectively from 0 °F to 140°F, with no restrictions on humidity or altitude.
• Vapor Output Hose and Power Cable: Both 10 feet
• Pressure Supply: Air/Inert gas
