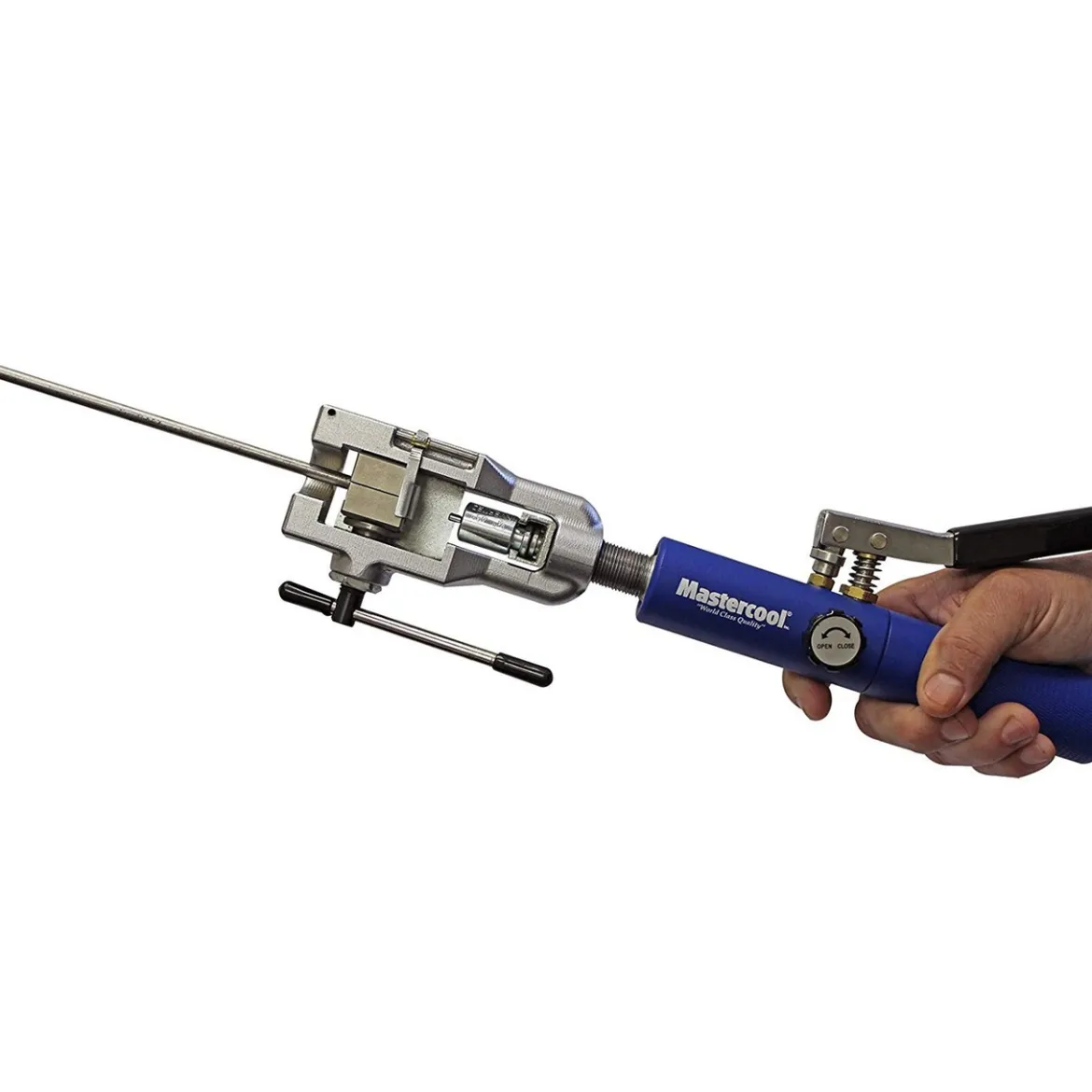

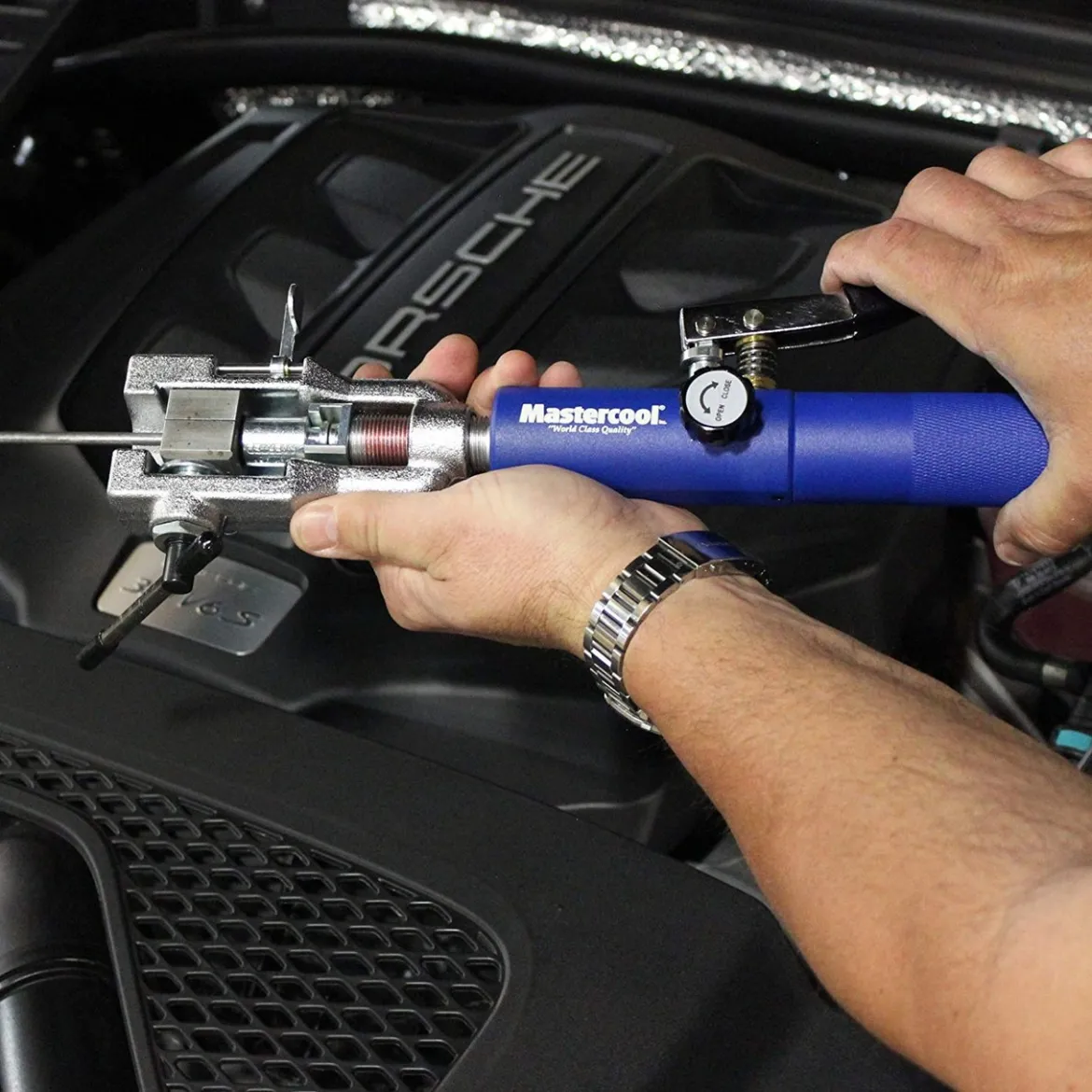

Mastercool 72475 Universal Hydraulic Flaring Tool Set with Tube Cutter

Mastercool 72475 Blue and Silver Universal Hydraulic Flaring Tool Set with Tube Cutter

• Tube and die set stabilizing arm for easy tube forming
• Magnetic adapter holder keeps adapters in place
• Equipped with an enlarged die set compression area for better grip of dies
• Create perfect production quality flares on annealed stainless steel tubing, terne plate steel tubing, soft aluminum and soft cooper tubing

This kit fabricates Push Connect 1/4, 5/16 and 3/8” GM Fuel Line Flare, Brake Lines and Transmission 5/16 and 3/8” Flare/Double Flare 3/16, 1/4, 5/16, 3/8 and 1/2” Metric Bubble Flare 4.75, 6, 8, and 10mm. Comes in a custom molded box. (patent # 5,782,128)

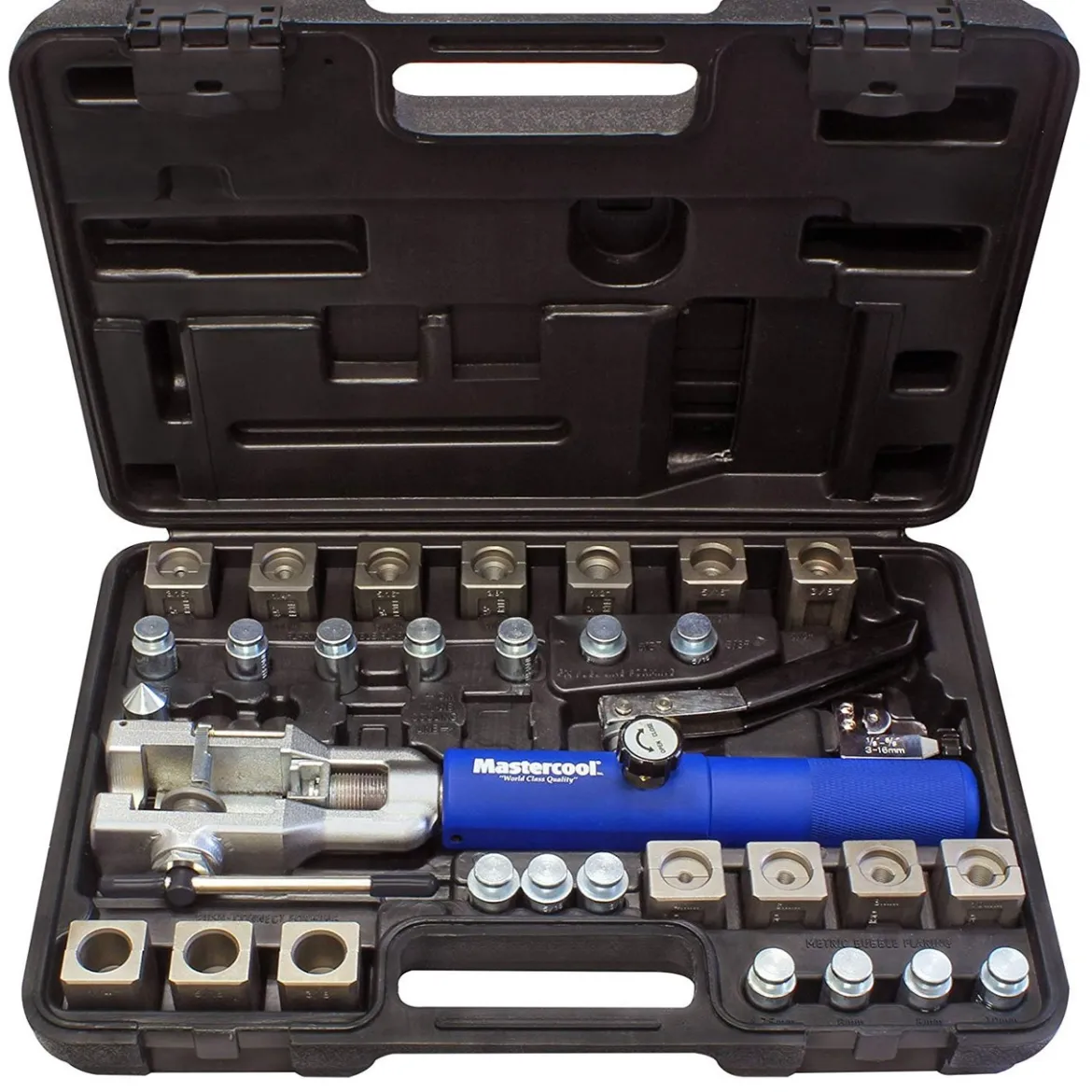

Set includes:

• 71202: Hydra-Flare Yoke & Pump Assembly
• 71097-01: 45° Flaring Cone

Push Connect Adapters

• 71204: 1/4″ Adapter
• 71205: 5/16″ Adapter
• 71206: 3/8″ Adapter

Push Connect Die Sets

• 71214: 1/4″ Die Set
• 71215: 5/16″ Die Set
• 71216: 3/8″ Die Set

GM Fuel Line Adapters

• 71405: 5/16″ Adapter
• 71406: 3/8″ Adapter
• GM Fuel Line Die Sets
• 71415:5/16″ Die Set
• 71416: 3/8″ Die Set

45? & Double Flaring Adapters

• 71097-03: 3/16″ Adapter
• 71097-04: 1/4″ Adapter
• 71097-05: 5/16″ Adapter
• 71097-06: 3/8″ Adapter
• 71097-08: 1/2″ Adapter

45? & Double Flaring Die Sets

• 71097-13: 3/16″ Die Set
• 71097-14: 1/4″ Die Set
• 71097-15: 5/16″ Die Set
• 71097-16: 3/8″ Die Set
• 71097-18: 1/2″ Die Set

Metric Bubble Flaring Adapters

• 71475-4M: 4.75 mm Adapter
• 71475-6M: 6 mm Adapter
• 71475-8M: 8 mm Adapter
• 71475-10M: 10 mm Adapter

Metric Bubble Flaring Die Sets

• 71475-14M: 4.75 mm Die Set
• 71475-16M: 6 mm Die Set
• 71475-18M: 8 mm Die Set
• 71475-110M: 10 mm Die Set
