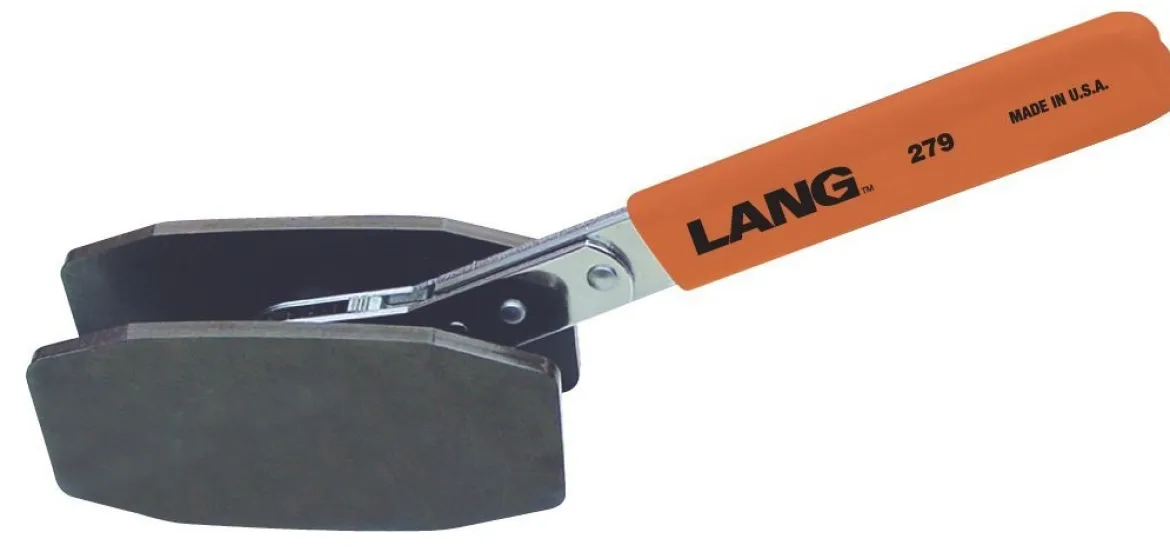

Lang Tools Brake Caliper Press (279)

The Lang Tools Brake Caliper Press (279) is an indispensable tool for any mechanic or DIY enthusiast performing brake service. Designed with precision and ease of use in mind, this professional-grade tool facilitates the safe and efficient retraction of brake caliper pistons.

KEY FEATURES AND BENEFITS:

• Broad Caliper Compatibility: Works seamlessly with a wide range of brake calipers, including single, dual, and quad piston designs, making it a versatile solution for various vehicle types.
• Prevent Piston Misalignment: Engineered to distribute force centrally and evenly, which is critical in preventing the pistons from cocking or getting damaged during retraction. This protects your caliper and ensures proper brake function.
• Enhanced Accessibility: Features a 360-degree ratchet swing, allowing the user to position the tool at virtually any angle. This provides excellent access in tight engine bays or challenging wheel well configurations.
• Effortless Operation Transition: Equipped with an extended reversing lever, enabling quick and easy switching between the spreading function (for retracting pistons) and the retracting function (for closing the press), saving time and effort.

SPECIFICATIONS:

• Part Number: 279
• Dimensions: 3.25″ X 10.5″ X 2.125″
• Included: Lang Tools 279 Brake Caliper Press

HOW TO USE:

1. Prepare the Vehicle: Safely lift and support the vehicle. Remove the wheel and the brake caliper as required by your vehicle’s service manual.

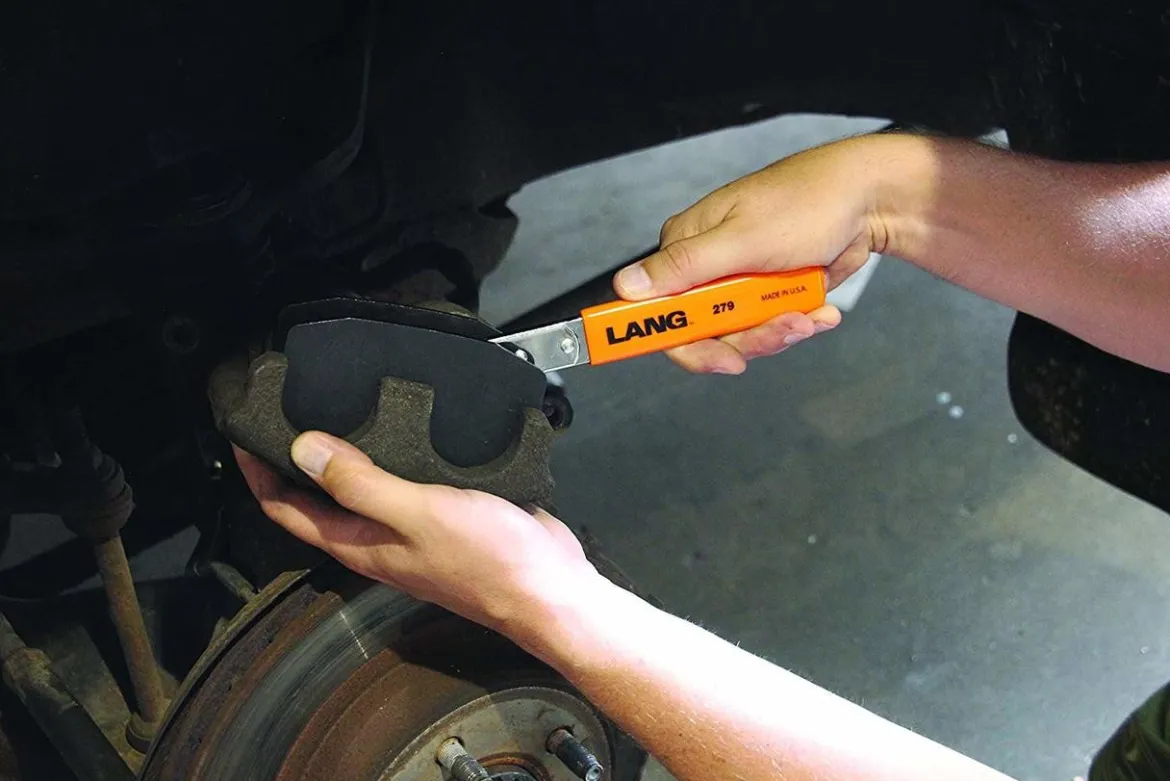

2. Position the Press: Place the Lang Tools 279 between the brake pads or directly against the caliper pistons (if pads are removed). Ensure the pressing plates are flat against the pistons.
3. Retract Pistons: Rotate the handle of the press clockwise to extend the plates, slowly and evenly pushing the brake pistons back into the caliper bore. Watch carefully to ensure the pistons retract straight.
4. Monitor Piston Movement: Continuously observe the pistons as they retract to prevent any binding or misalignment.
5. Release and Remove: Once the pistons are fully retracted, use the extended reversing lever to release the pressure and remove the tool from the caliper.
6. Complete Brake Service: Proceed with installing new brake pads, rotors, and reassembling the brake system according to manufacturer specifications.

BENEFITS OF USING LANG TOOLS BRAKE CALIPER PRESS (279):

• Streamlines the process of brake caliper piston retraction.
• Helps prevent costly damage to brake calipers and pistons.
• Increases efficiency and reduces the physical effort required for brake jobs.
• Offers a precise and controlled method for piston retraction.
• Supports a wide array of vehicle brake system types.

FEATURES:

• Parallel pressing plates ensure even force application.
• Ratchet mechanism for controlled and gradual piston retraction.
• Compact form factor allows for use in limited spaces.
• Intuitive lever for quick direction changes (spread/retract).
• Robust construction designed for repeated use.
