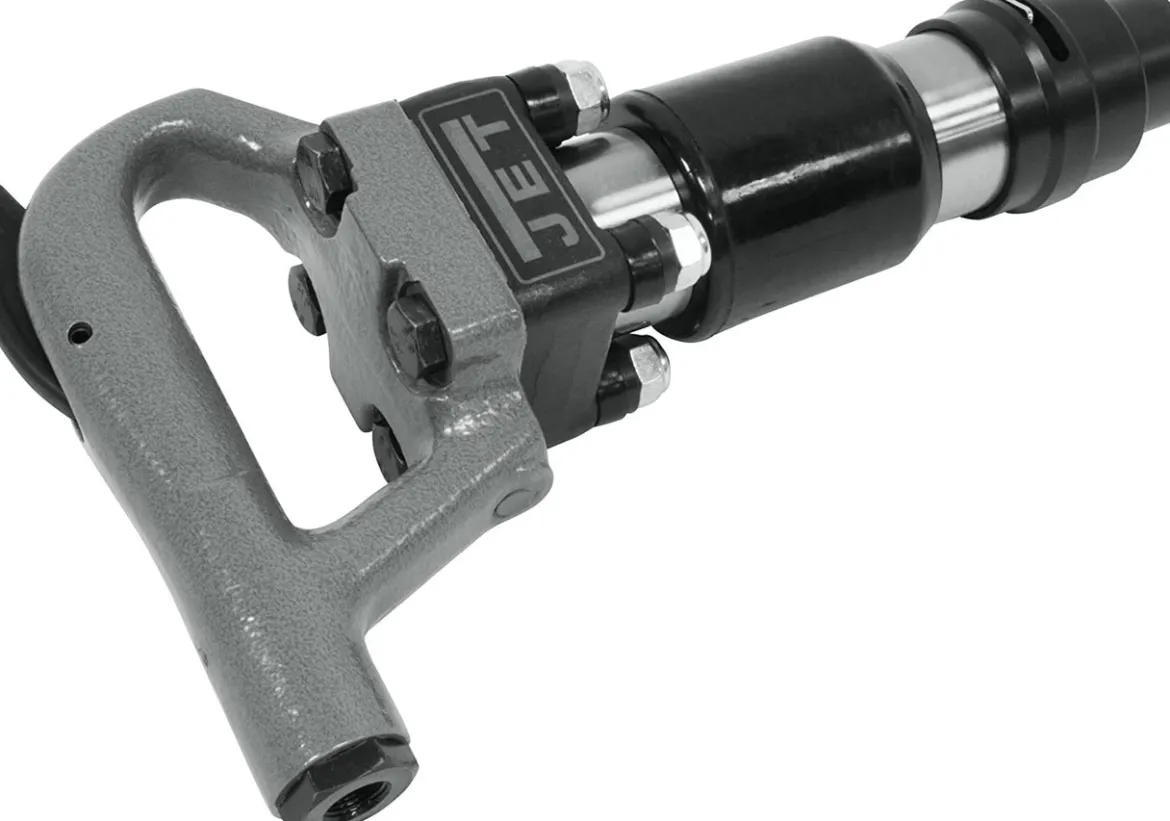

Jet JCT-3623 4″ 4-Bolt Chipping Hammer w/ Hex Shank (550623)

Jet JCT-3623 4″ 4-Bolt Chipping Hammer w/ Hex Shank (550623) is a heavy-duty tool designed for efficient and powerful material removal. Built with a robust 4-bolt construction and a comfortable D-handle, this chipping hammer delivers exceptional performance and user comfort.

KEY FEATURES AND BENEFITS:

• Durable Construction: The 4-bolt design and heat-treated cylinder and piston ensure long-lasting performance in demanding conditions.
• Powerful Performance: With a 4-inch stroke and 1,500 blows per minute, this chipping hammer effectively tackles tough materials.
• Ergonomic Design: The D-handle provides a comfortable grip, reducing user fatigue during extended use.
• Easy Maintenance: The 4-bolt backhead allows for simple servicing and replacement of parts.

SPECIFICATIONS:

• Shank Bushing Style: Hex
• Shank Bushing Size: 0.580 inches
• Piston Stroke: 4-1/64 inches
• Bore Size: 1-3/16 inches
• Energy Per Blow @ 90 PSI: 22 ft-lb
• Rivet Capacity: 1-1/4 inches
• Air Consumption: 34 CFM
• Vibration Value: 26.0 m/s²
• Noise Level: 98 dB(A)
• Overall Length: 16-1/2 inches
• Blows Per Minute: 1,500
• Air Pressure: 90 PSI
• Air Inlet: 3/8″ NPT
• Minimum Air Hose Size: 1/2″ ID

HOW TO USE:

1. Safety First: Always wear appropriate safety gear, including eye protection, hearing protection, and gloves.
2. Connect Air Hose: Securely connect the air hose to the chipping hammer’s air inlet using a 3/8″ NPT fitting.
3. Inspect Tool: Check for any damage or wear before use. Ensure the chisel is securely tightened.
4. Turn On Air Compressor: Start the air compressor and adjust the pressure to 90 PSI.
5. Grip the Handle: Hold the chipping hammer firmly with both hands, using the D-handle for control.
6. Start Chipping: Apply steady pressure and use controlled motions to remove material.
7. Regular Maintenance: Clean the chipping hammer after each use and lubricate moving parts according to the manufacturer’s instructions.

BENEFITS OF USING JET JCT-3623 4″ 4-BOLT CHIPPING HAMMER W/ HEX SHANK (550623):

• Increased efficiency and productivity on construction sites.
• Improved material removal speed and accuracy.
• Enhanced user comfort due to ergonomic design.
• Reduced downtime with easy maintenance and repair.
• Durable construction for long-lasting performance.

FEATURES:

• Four-bolt design for extra strength
• Heat-treated cylinder and piston
• Heavy-duty valve design
• Ergonomic D-handle
• Easy serviceability
• Standard type retainer
