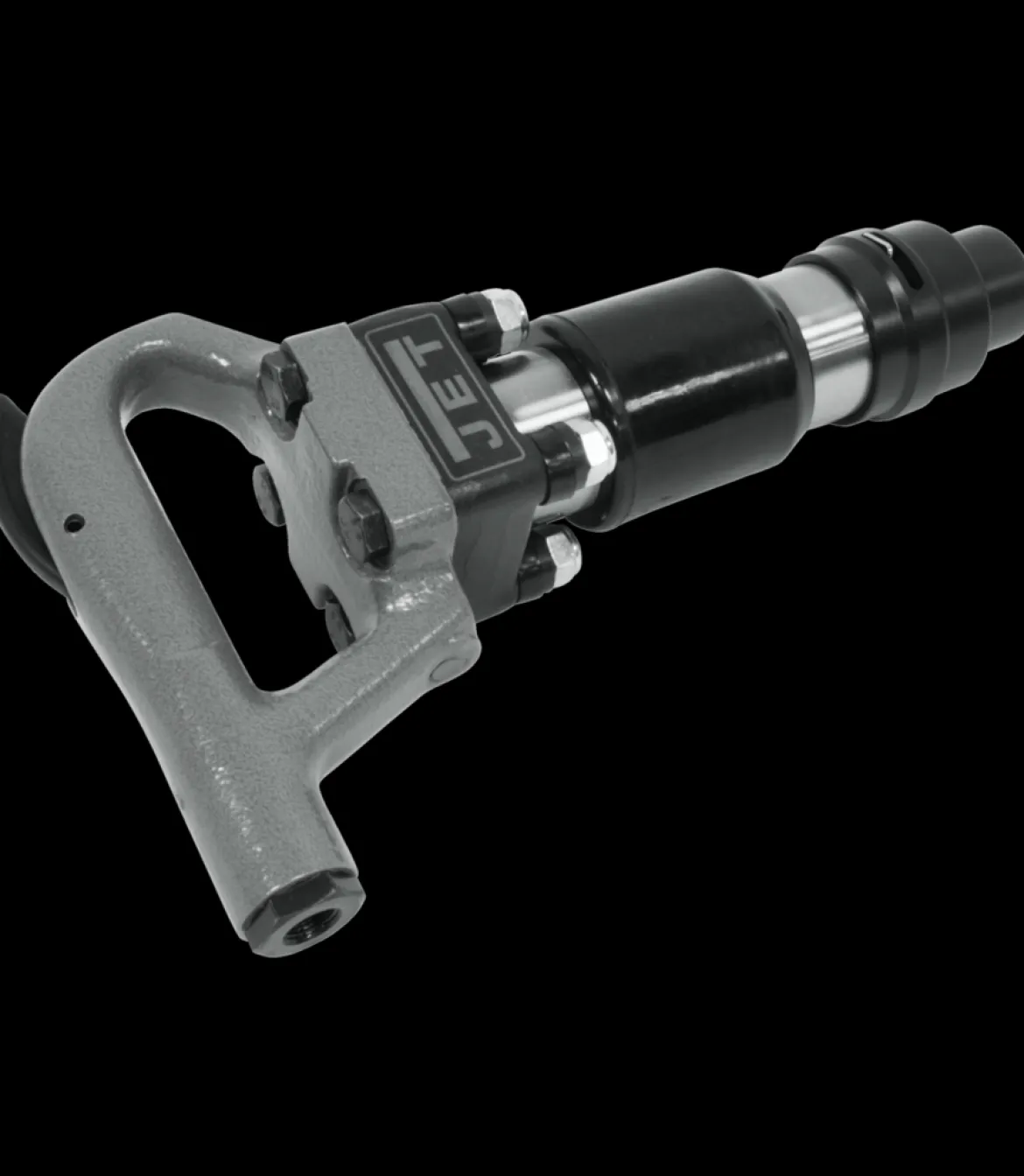

Jet JCT-3621 3″ Stroke 4-Bolt Chipping Hammer Hex Shank (550621)

Jet JCT-3621 3″ Stroke 4-Bolt Chipping Hammer Hex Shank (550621) is a heavy-duty chipping hammer designed for demanding construction and demolition tasks. Built with durability in mind, this tool is equipped with a heat-treated cylinder and piston, ensuring long-lasting performance. Its ergonomic D-handle provides comfort and control during operation.

KEY FEATURES AND BENEFITS:

• Powerful performance: Delivers 2200 blows per minute at 90 PSI for efficient material removal.
• Durable construction: Heat-treated cylinder and piston, along with a heavy-duty valve design, ensure long tool life.
• Comfortable operation: Ergonomic D-handle reduces user fatigue.
• Easy maintenance: 4-bolt backhead allows for simple servicing.
• Versatile applications: Suitable for various chipping and demolition tasks.

SPECIFICATIONS:

• Shank Bushing Style: Hex
• Shank Bushing Size (in): 0.580
• Piston Stroke (in): 3-1/32
• Bore Size (in): 1-3/16
• Energy Per Blow @ 90 PSI (ft-lb): 17
• Rivet Capacity (in): 1-1/8
• Air Consumption (CFM): 34
• Vibration Value (m/s²): 15.0
• Noise Level (dB(A)): 95.0
• Overall Length (in): 14
• Blows Per Minute (BPM): 2200
• Air Pressure (PSI): 90
• Air Inlet (NPT/in): 3/8
• Min. Air Hose (ID/in): 1/2

HOW TO USE:

1. Inspect the tool: Before use, carefully examine the chipping hammer for any damage or wear.
2. Connect air hose: Attach a properly sized air hose to the 3/8 inch NPT air inlet.
3. Secure chisel: Insert the desired chisel into the hex shank and tighten securely.
4. Turn on air compressor: Ensure the air compressor is running and providing adequate air pressure.
5. Grip the handle: Hold the chipping hammer firmly with both hands, using the D-handle for control.
6. Start chipping: Apply steady pressure and use controlled motions to remove material.
7. Maintain tool: Regularly clean and inspect the chipping hammer to ensure optimal performance.

BENEFITS OF USING JET JCT-3621 3″ STROKE 4-BOLT CHIPPING HAMMER HEX SHANK (550621):

• Increased productivity due to its powerful performance.
• Reduced downtime with durable construction.
• Improved user comfort thanks to the ergonomic design.
• Easy maintenance for extended tool life.
• Versatility for various construction and demolition applications.

FEATURES:

• 4-bolt D-handle for strength and grip
• Heat-treated cylinder and piston
• Heavy-duty valve design
• Ergonomic D-handle
• Easy serviceability with 4-bolt backhead
• Includes standard type retainer
