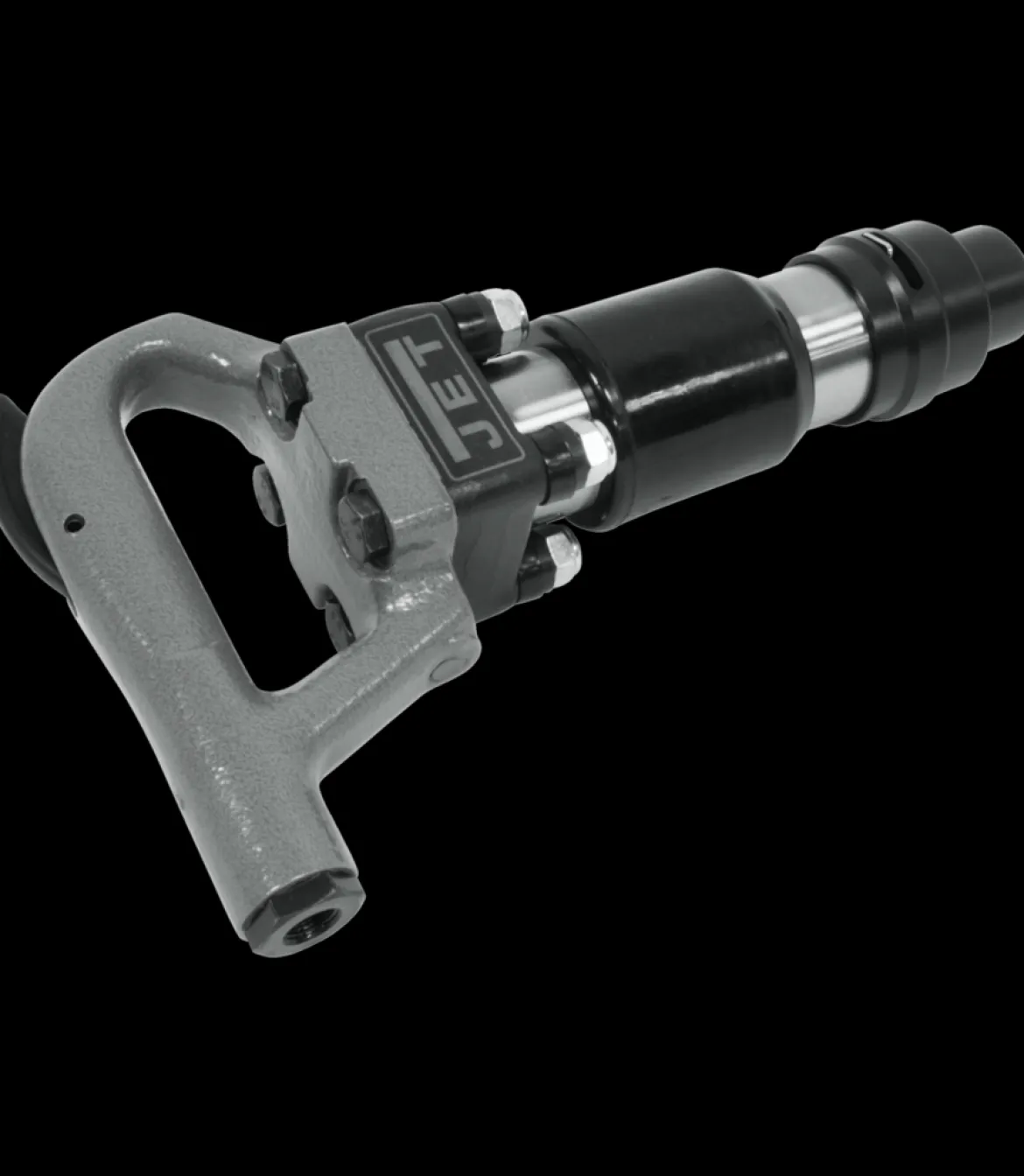

Jet JCT-3620 3″ Stroke 4-Bolt Chipping Hammer Round Shank (550620)

Jet JCT-3620 3″ Stroke 4-Bolt Chipping Hammer Round Shank (550620) is a robust chipping hammer designed for efficient and powerful material removal. Built with durability in mind, this tool is ideal for construction, demolition, and other demanding tasks.

KEY FEATURES AND BENEFITS:

• Heavy-duty construction: Ensures long-lasting performance in tough conditions.
• 4-bolt backhead: Allows for easy maintenance and repair.
• Heat-treated cylinder and piston: Provides enhanced durability and resistance to wear.
• Ergonomic D-style forged handle: Offers comfortable and secure grip.
• High-performance valve design: Delivers consistent and powerful blows.

SPECIFICATIONS:

• Shank Bushing Style: Round
• Shank Bushing Size: 0.680 inches
• Piston Stroke: 3-1/32 inches
• Bore Size: 1-3/16 inches
• Blows Per Minute (BPM): 2,200
• Energy Per Blow @ 90 PSI: 17 ft-lb
• Air Consumption: 34 CFM
• Vibration Value: 15.0 m/s²
• Noise Level: 95.0 dB(A)
• Overall Length: 14 inches
• Air Inlet: 3/8 inch NPT
• Weight: 18 pounds

HOW TO USE:

1. Connect the chipping hammer: Attach the hammer to an air compressor with a minimum hose size of 1/2 inch.
2. Set Air Pressure: Ensure the air pressure is set to 90 PSI for optimal performance.
3. Grip the Hammer: Hold the chipping hammer firmly with both hands, using the D-handle for support.
4. Position and Use: Position the chisel at the desired angle and apply steady pressure while activating the trigger.
5. Cool Down: For continued use, allow the tool to cool down periodically to prevent overheating.

BENEFITS OF USING JET JCT-3620 3″ STROKE 4-BOLT CHIPPING HAMMER ROUND SHANK (550620):

• Increased efficiency and productivity due to powerful performance.
• Reduced downtime with durable construction and easy maintenance.
• Improved user comfort with ergonomic handle design.
• Versatile tool suitable for various chipping applications.
• Backed by a 2-year warranty for added peace of mind.

FEATURES:

• 4-bolt backhead
• Heat-treated cylinder and piston
• Ergonomic D-style forged handle
• High-performance valve design
• Standard retainer included
