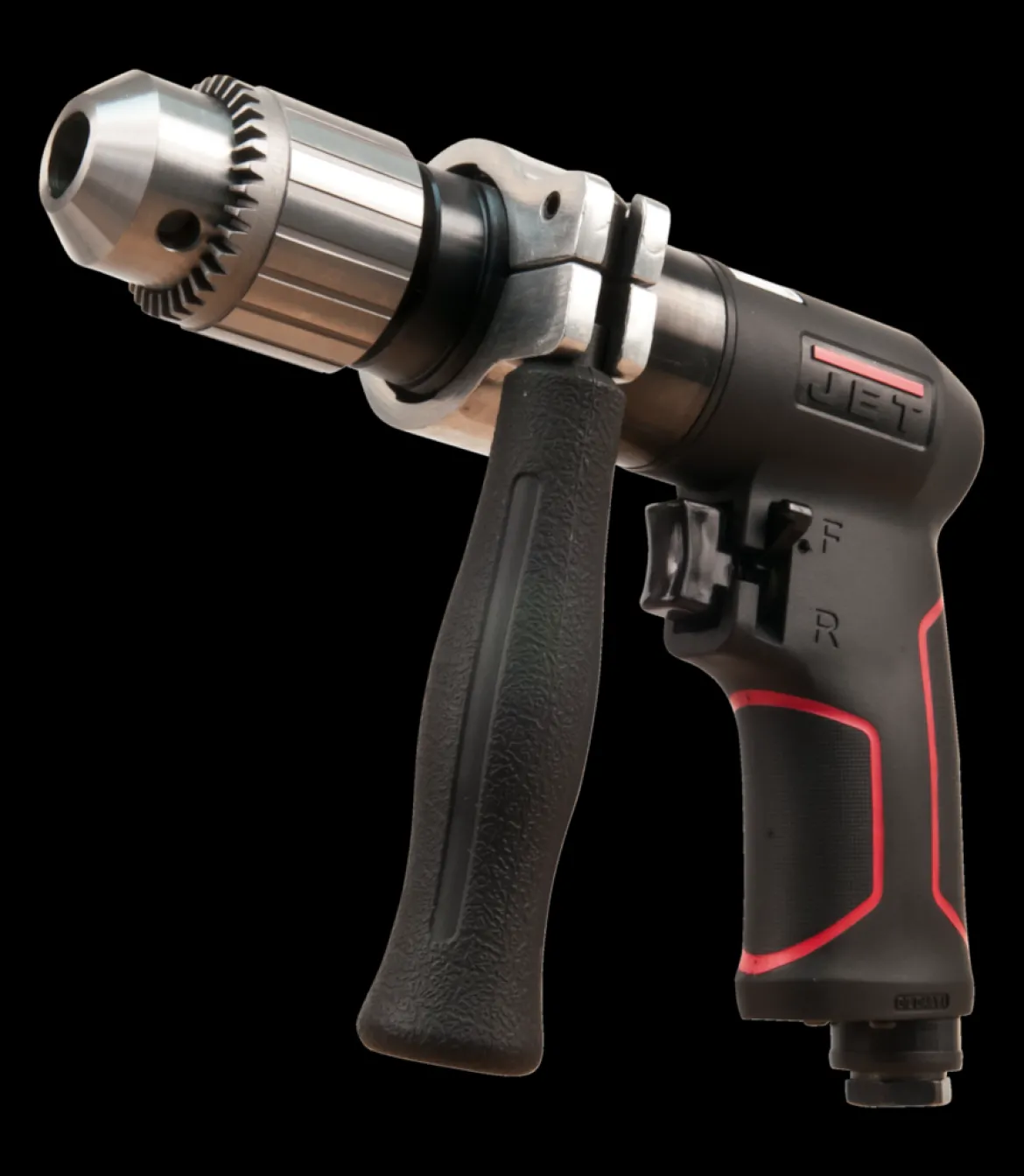

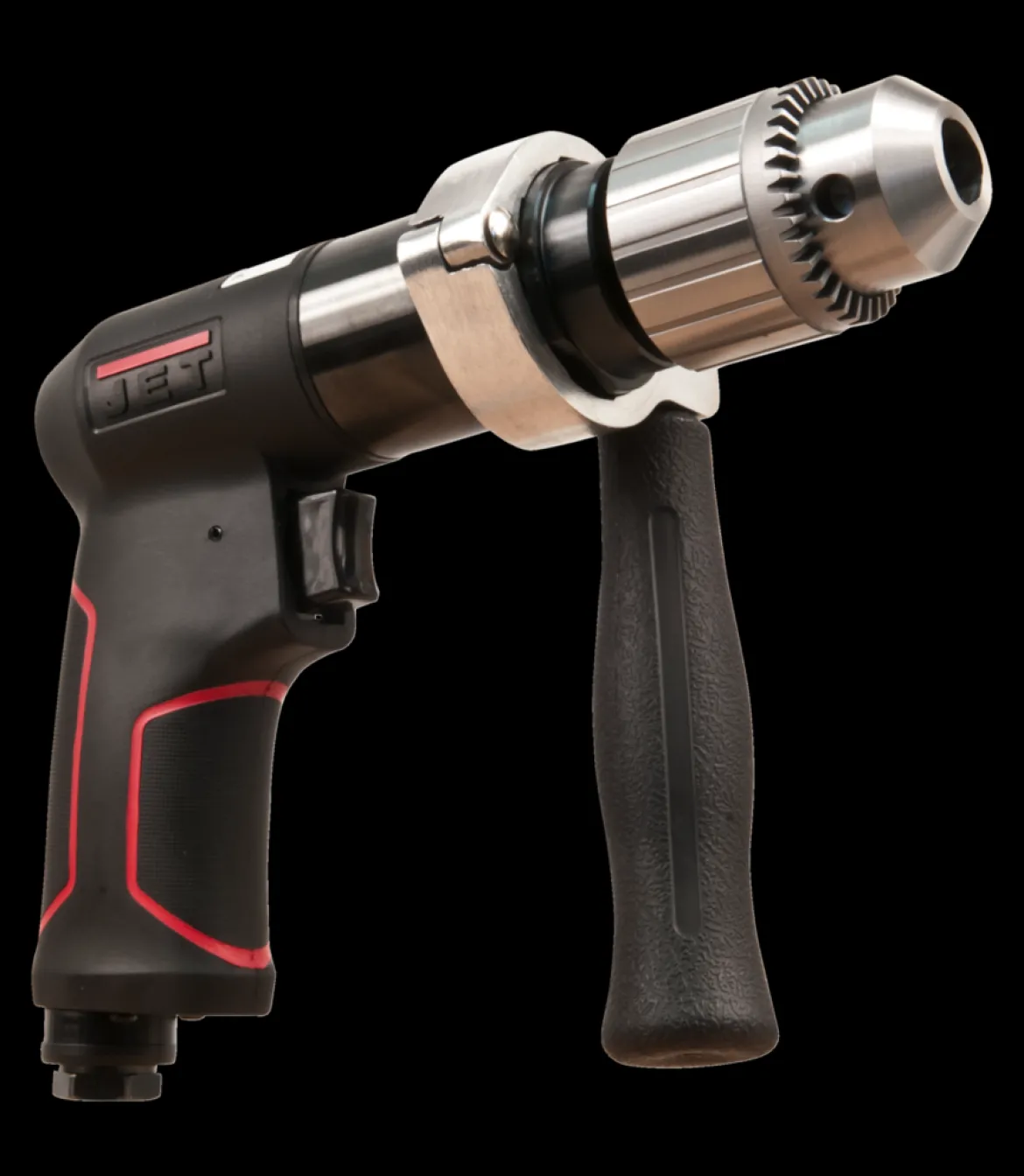

Jet JAT-621 800 RPM 1/2″ Reversible Air Drill (505621)

The Jet JAT-621 800 RPM 1/2″ Reversible Air Drill (505621) is a robust tool designed for efficient and reliable performance. Built to withstand demanding work environments, this air drill delivers consistent power and precision.

KEY FEATURES AND BENEFITS:

• Industrial Jacobs Keyed Chuck: Ensures optimal torque transfer for drilling into various materials.
• Sealed Ball Bearing Design: Protects internal components from contaminants, enhancing tool life and smooth operation.

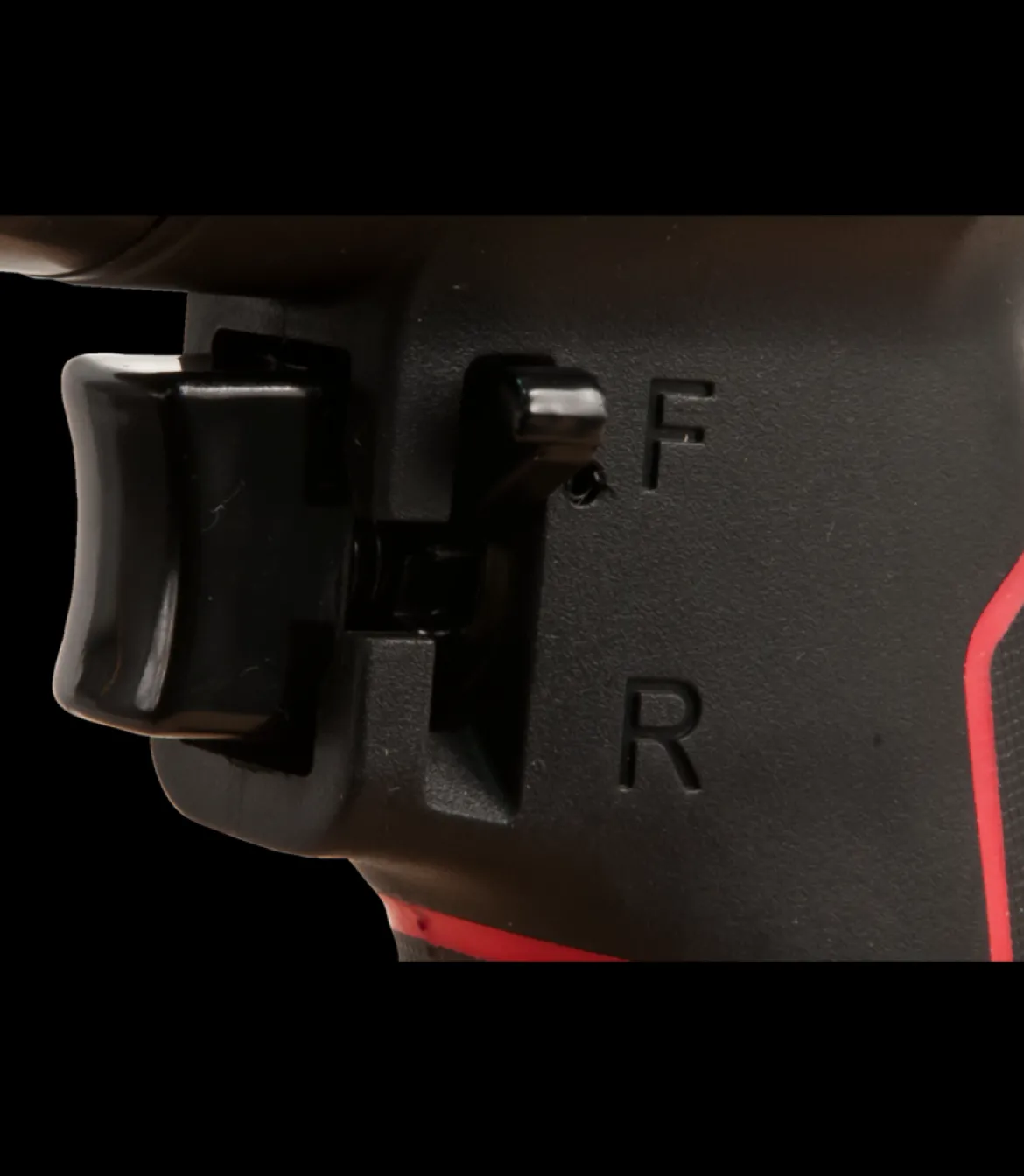

• Side-Mounted Forward/Reverse Switch: Allows quick and easy direction changes for versatile applications.
• Variable-Speed Trigger: Provides precise control over drilling speed for different materials and tasks.

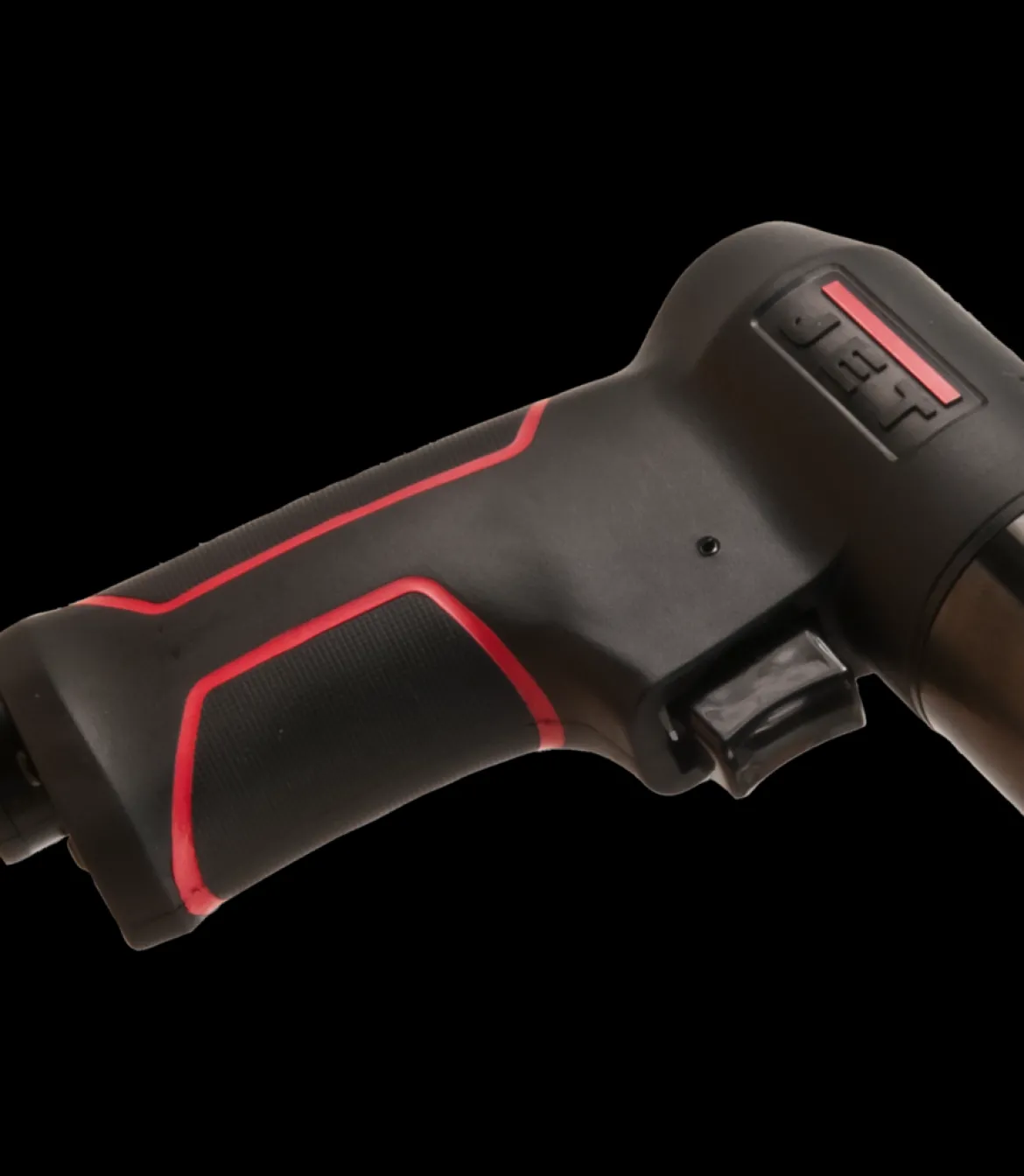

• Impact-Resistant Composite Housing: Reduces tool weight and improves balance, minimizing user fatigue.

SPECIFICATIONS:

• Brand: Jet
• Model: JAT-621
• Size: 1/2″
• Length: 24.6 cm
• Width: 17.5 cm
• Height: 5.1 cm
• Weight: 1746 g
• Free Speed: 800 RPM
• Air Pressure: 90 PSI
• Horsepower: 1/2 HP
• Air Hose: 3/8″ ID
• Overall Length: 8-5/8″
• Chuck Size: 1/2″
• Noise Level: 90 dB
• Spindle Thread: 3/8″-24
• Vibration Value: 0.4 m/s²
• Air Inlet: 1/4″ NPT
• Air Consumption: 4 CFM

HOW TO USE:

1. Connect the Air Hose: Securely attach the air hose to the 1/4″ NPT female air inlet of the drill.
2. Adjust Air Pressure: Set the desired air pressure according to the material you are drilling.
3. Select Drill Bit: Choose the appropriate drill bit for the job and insert it into the industrial Jacobs keyed chuck. Tighten the chuck securely.
4. Control Speed: Use the variable-speed trigger to adjust the drilling speed based on the material and application.
5. Start Drilling: Apply gentle pressure to the drill and begin drilling. Maintain a steady and controlled motion.
6. Reverse Direction: For removing drill bits or other tasks, use the side-mounted forward/reverse switch to change the direction of rotation.

BENEFITS OF USING JET JAT-621 800 RPM 1/2″ REVERSIBLE AIR DRILL (505621):

• Enhanced Productivity: Due to powerful performance and efficient operation.
• Increased Durability: Thanks to the sealed ball bearing design and robust construction.
• Improved User Comfort: With reduced weight and improved balance.
• Versatility: For various applications due to variable speed control and forward/reverse functionality.
• Precise Drilling Results: With the industrial Jacobs keyed chuck.

FEATURES:

• Industrial Jacobs keyed chuck
• Sealed ball bearing design
• Side-mounted forward/reverse switch
• Variable-speed trigger
• Impact-resistant composite housing
