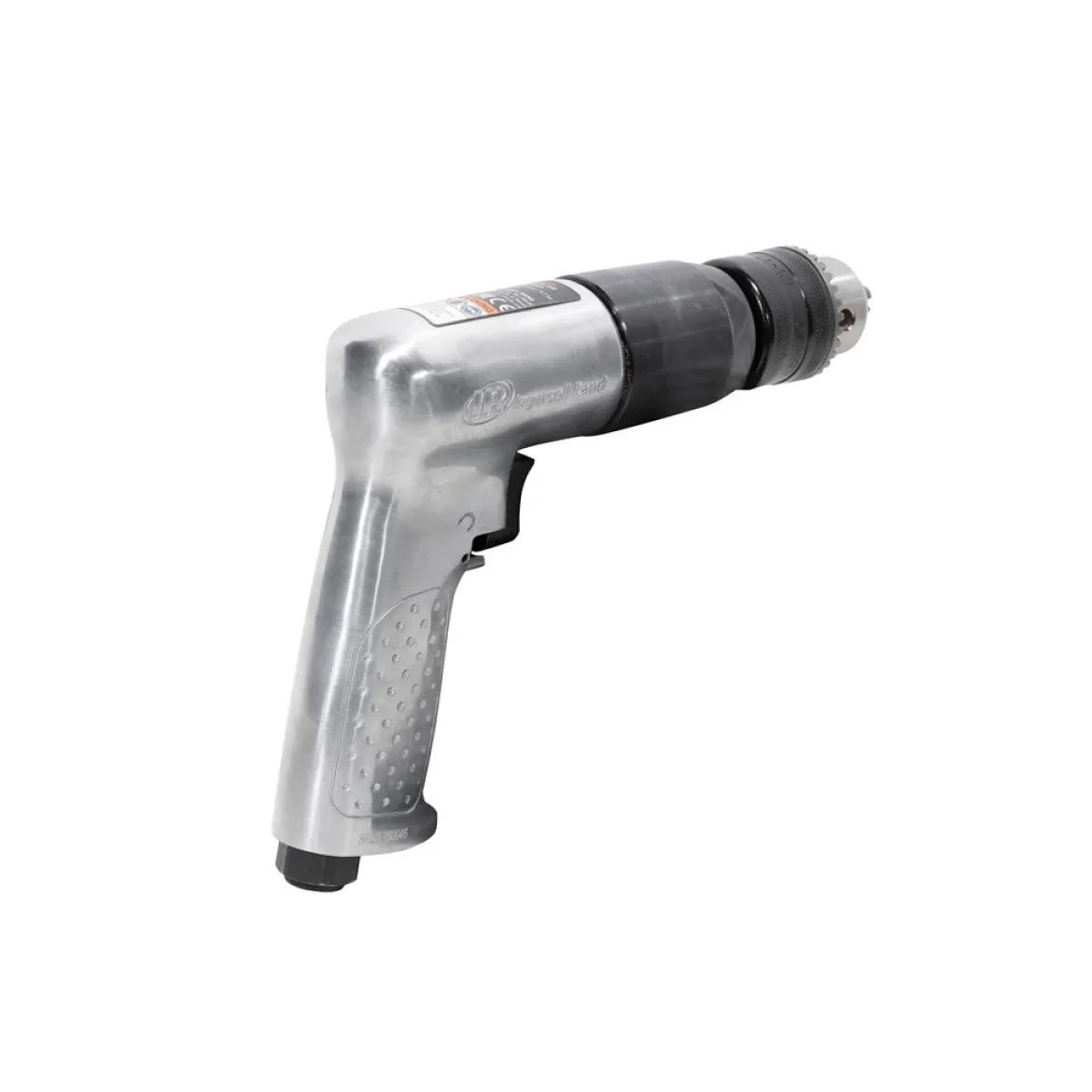

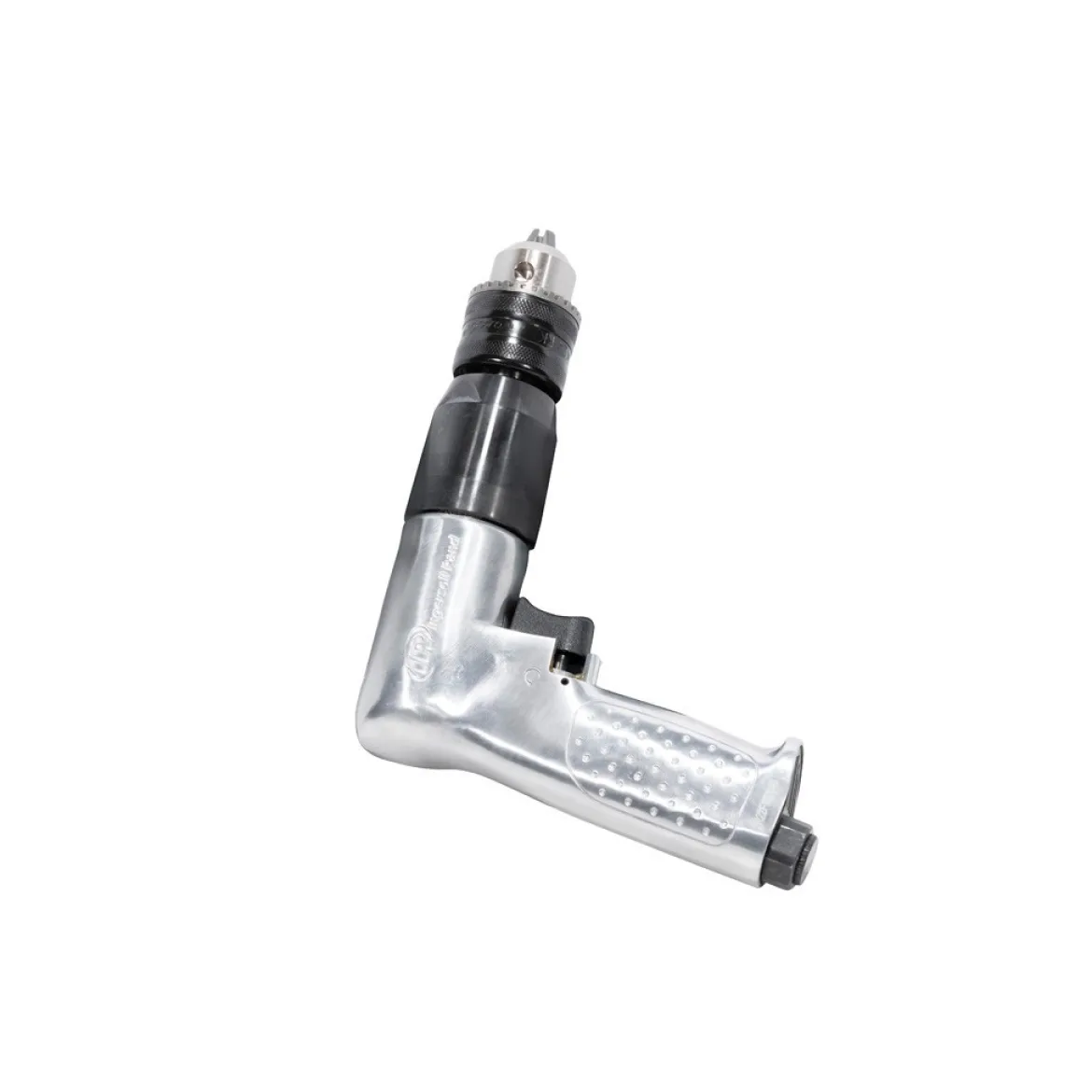

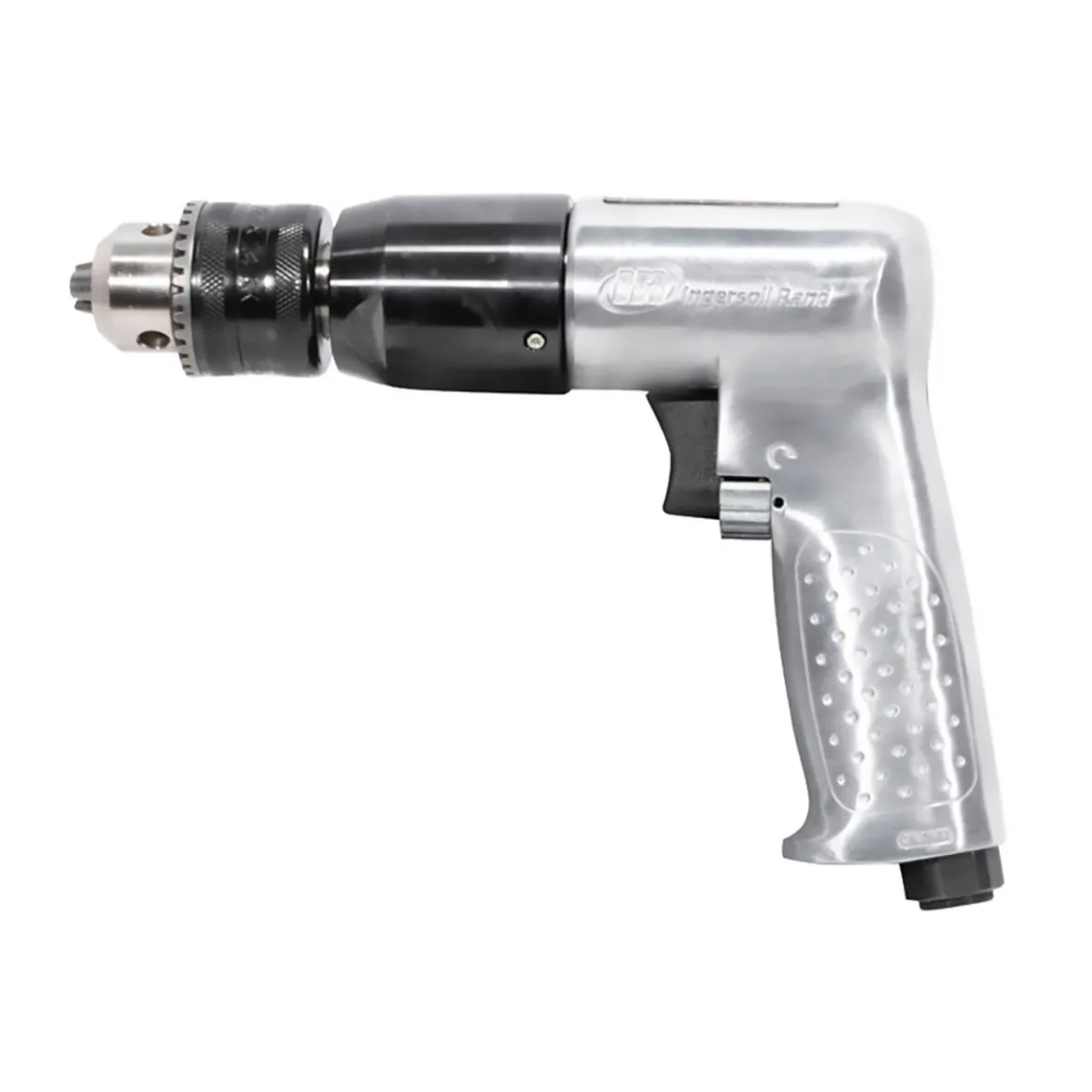

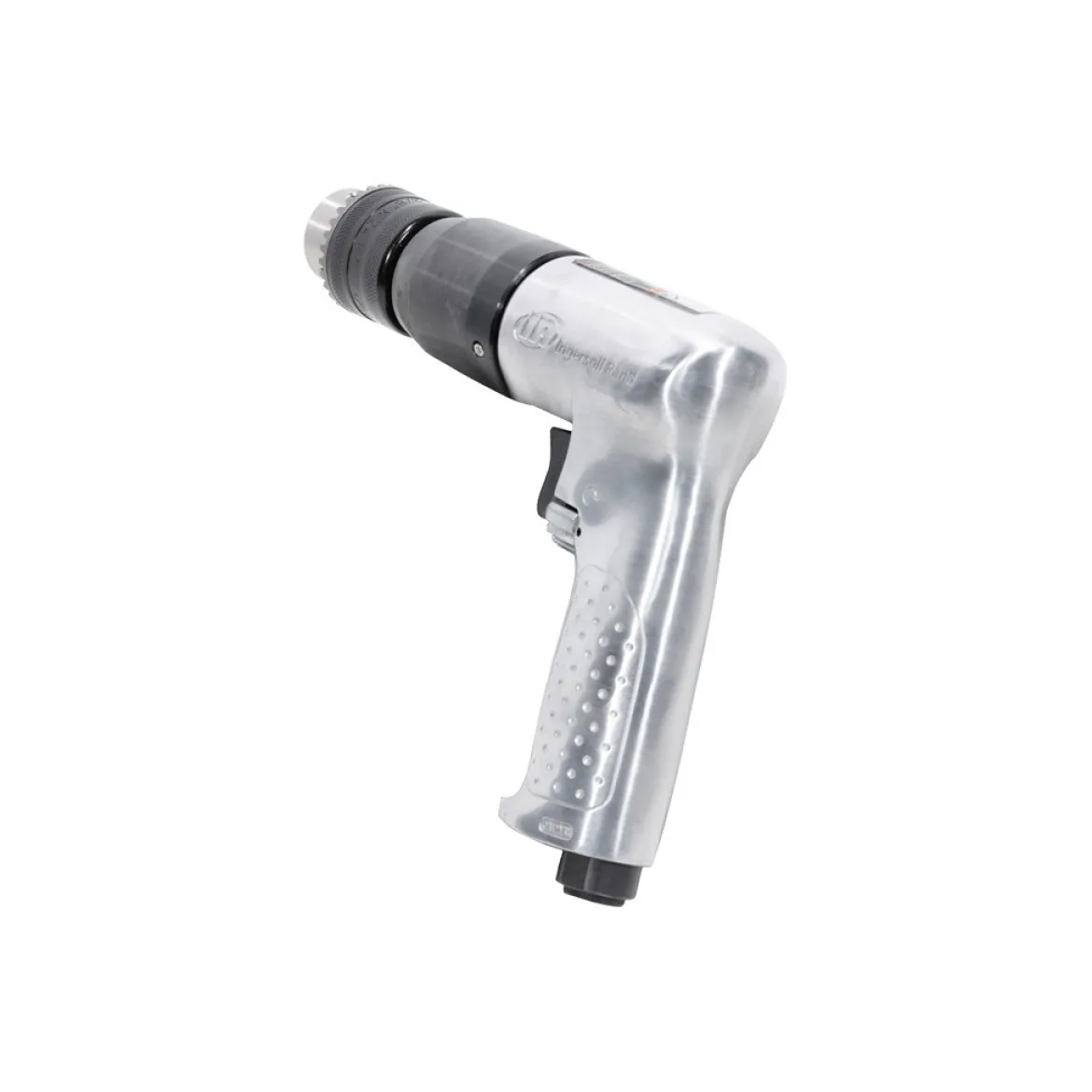

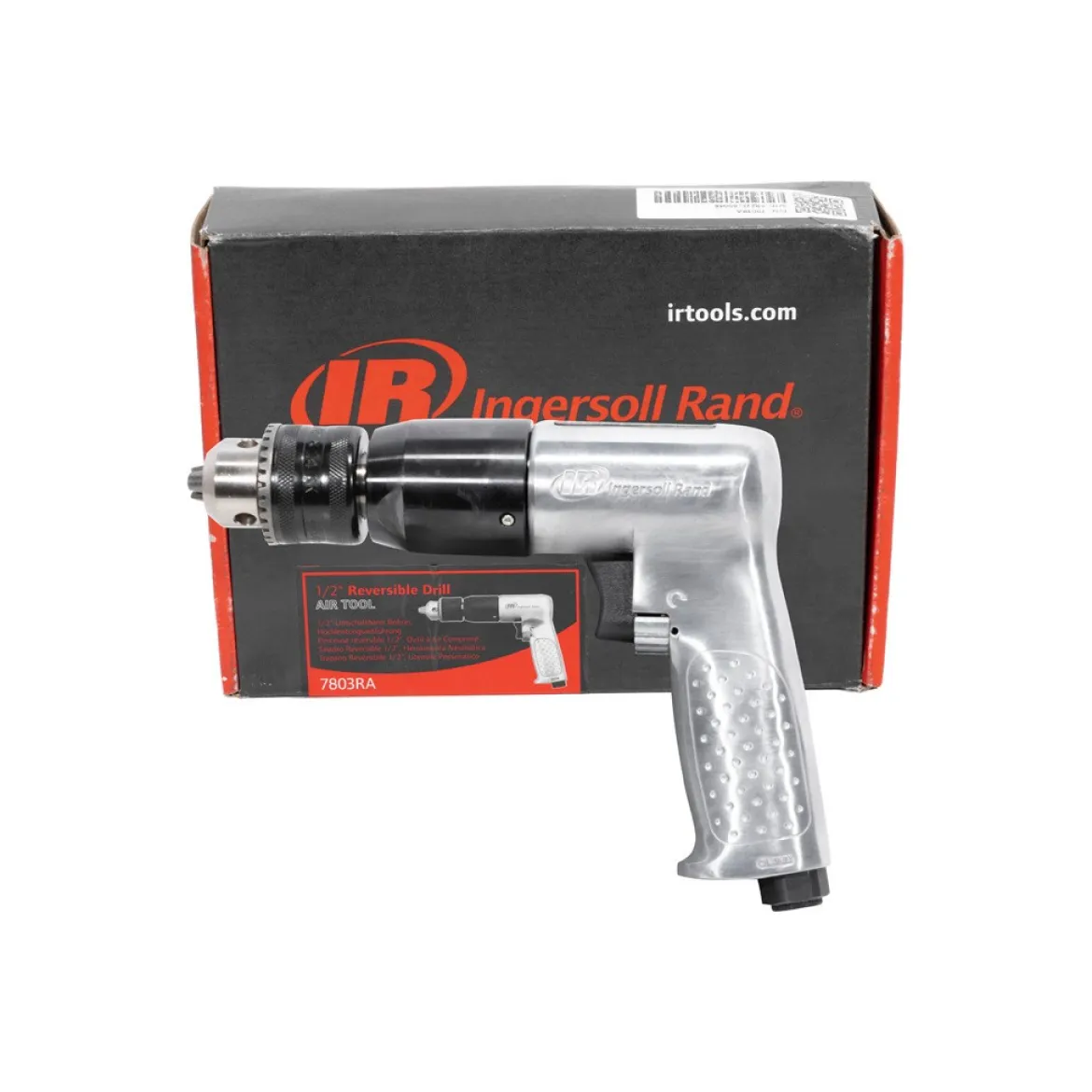

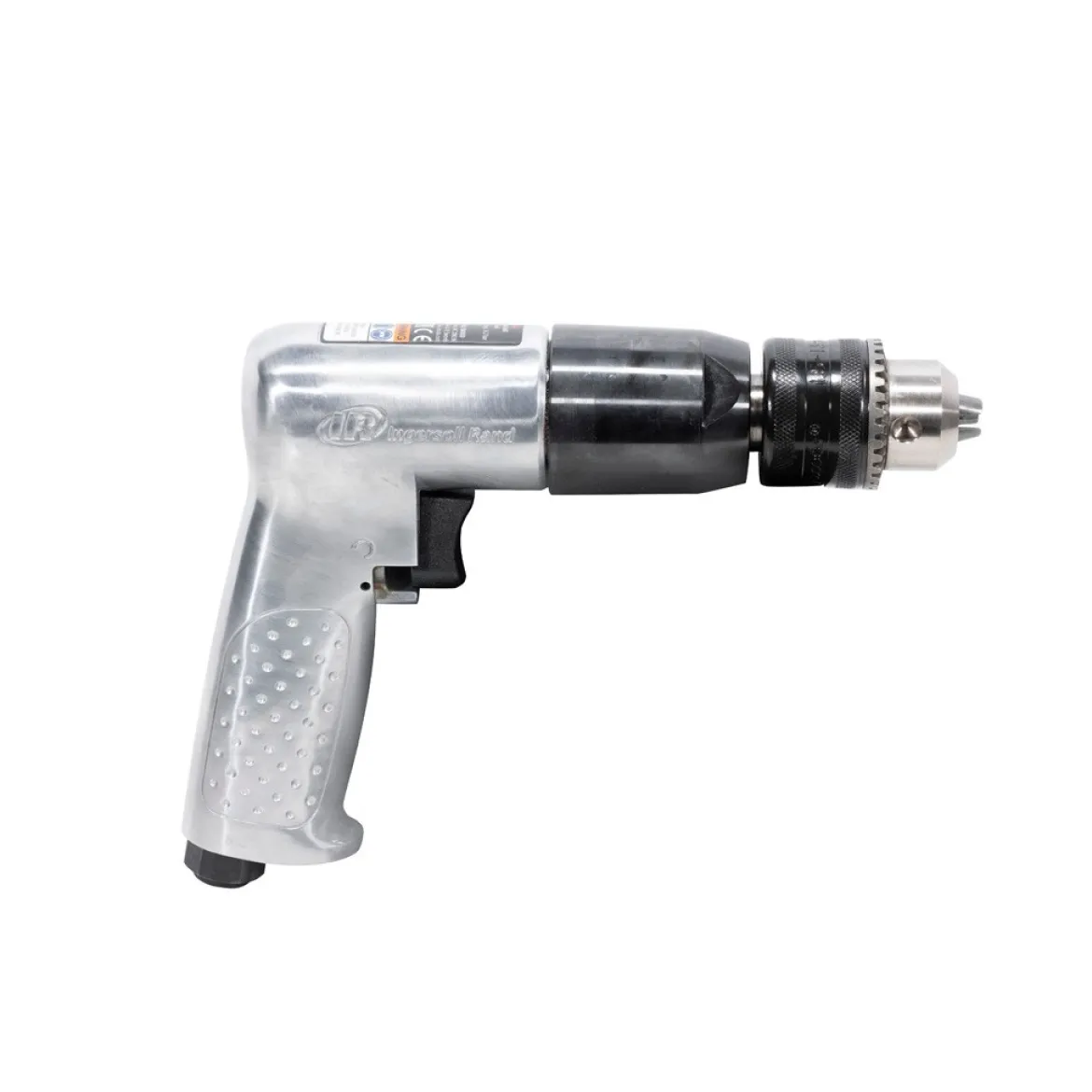

Ingersoll Rand Air Drill 1/2″ Reversible 0.5 hp Motor Keyed Chuck (7803RA)

Ingersoll Rand 7803RA Air Drill 1/2″ Reversible 0.5 hp Motor Keyed Chuck is a durable and versatile tool designed for automotive and assembly tasks. This heavy-duty air drill is perfect for drilling, honing, reaming, hole sawing, valve guide reaming, and cylinder honing. Powered by a 0.5 hp motor, it delivers a free speed of 500 RPM. The tool features a 1/2″ keyed chuck and a 1/4″ air inlet, with a minimum hose size of 3/8″. The compact design (8.7″ in length) and side handle offer excellent control for precision tasks. Shop JB Tools for the best price on the Ingersoll Rand 7803RA air drill with keyed chuck.

Features:

• 1/2″ keyed chuck for secure and reliable bit holding.
• Powerful 0.5 hp motor delivering 500 RPM free speed for efficient performance.
• Feather trigger and variable speed throttle for precise control.
• Reversible drill with a quick-reverse lever for easy direction changes.
• Planetary gear motion enhances torque and load balance.
• Compact size and side handle provide excellent control and comfort during use.

Benefits:

• Ideal for a variety of automotive and assembly tasks including drilling, honing, and hole sawing.
• Variable speed control allows for enhanced precision and versatility.
• Reversible function allows easy adjustment of drilling direction with a quick-reverse lever.
• Ergonomic design with a side handle ensures operator comfort and reduces fatigue during extended use.
• Planetary gear motion ensures consistent power delivery and torque management.

Technical Specifications:

• Model: 7803RA
• Motor Power: 0.5 hp
• Speed: 500 RPM
• Chuck Size: 1/2″ Keyed
• Air Inlet: 1/4″ NPT
• Required PSI: 90
• Air Consumption @ Load: 27 CFM
• Average Air Consumption: 4 CFM
• Vibration Level: 2.5 m/s²
• Noise Level: 94 dB
• Tool Dimensions: 8.7″ L x 2″ H x 7″ W
• Weight: 3.3 lbs
• Exhaust Location: Handle
• Handle Type: Pistol grip & auxiliary side handle
• Housing Material: Aluminum
• Gear Train: Planetary
• Bearing Design: Ball and roller
