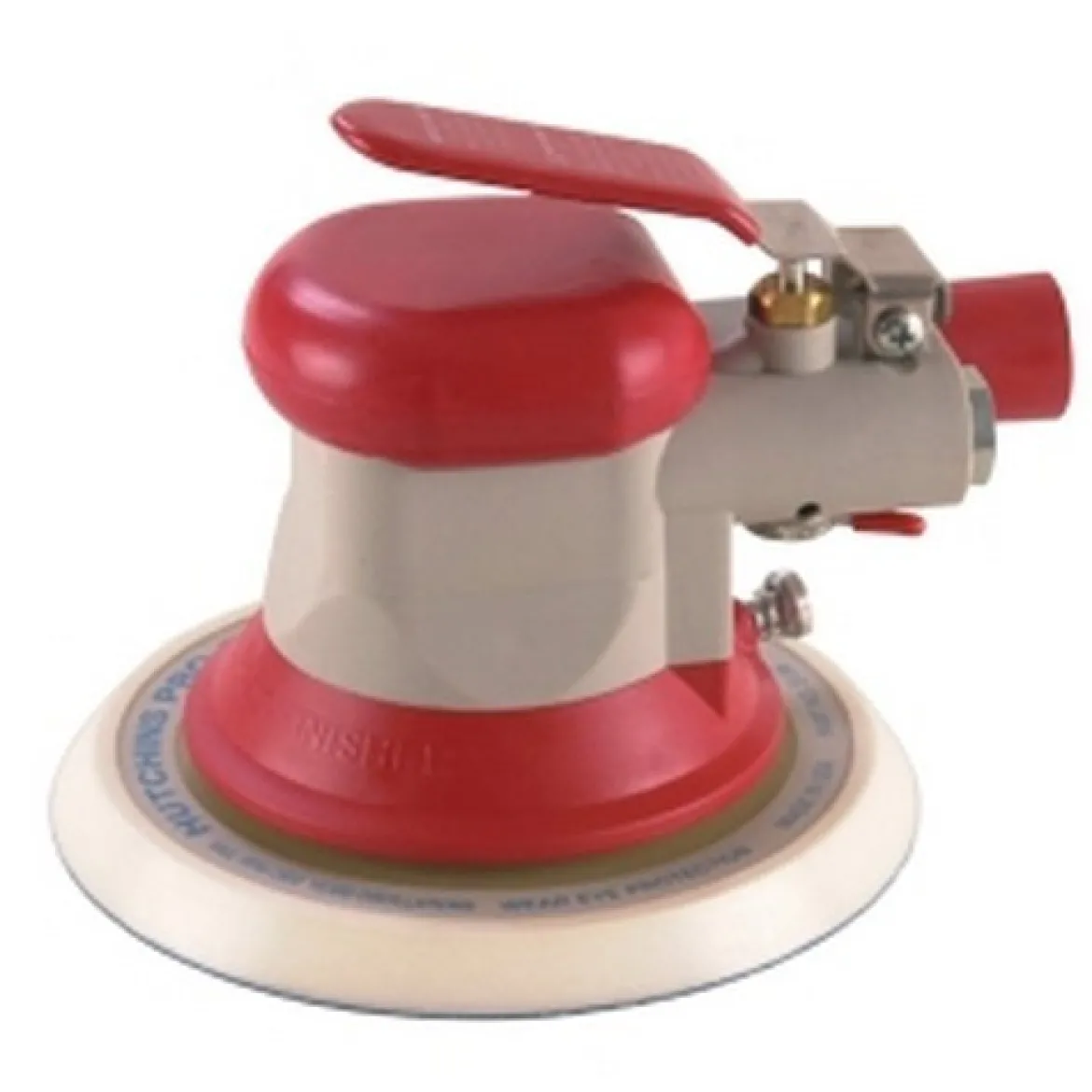

Hutchins 3/16″ Offset General Purpose Sander 6″ PSA (3560)

The Hutchins 3/16″ Offset General Purpose Sander 6″ PSA (3560) is a high-performance, air-powered random orbital sander crafted for efficient material removal and smooth finishing across a variety of applications. Often recognized as part of the “Red Top” series, this American-made sander is a top choice for automotive bodywork, woodworking, metal fabrication, and general surface preparation. Its 3/16″ offset random orbital action provides an aggressive cut while minimizing swirl marks, leading to a superior finish. Designed with user comfort in mind, the 3560 features low vibration operation, allowing for extended use without significant fatigue. Its lightweight and ergonomic build, combined with a robust composite housing and specialized internal components, ensures consistent performance and a long lifespan, making it an indispensable tool for professionals seeking reliable and high-quality results.

KEY FEATURES AND BENEFITS:

• Aggressive Material Removal: The 3/16″ offset random orbital action allows for quick and efficient removal of old paint, clear coats, rust, and other surface imperfections, significantly speeding up preparation time.
• Smooth Finishing: Despite its aggressive removal capabilities, the random orbital motion minimizes swirl marks and produces a refined surface, reducing the need for extensive post-sanding work.
• Low Vibration Operation: Engineered for user comfort, this sander significantly reduces operational vibration, minimizing hand fatigue and allowing for longer, more comfortable work sessions.
• Durable Construction: Made in the USA with a composite motor housing and a unique 4-bearing support system, the sander is built for longevity and consistent performance in demanding environments.
• Versatile PSA Pad: The 6-inch Pressure Sensitive Adhesive (PSA) pad allows for quick and easy attachment and removal of abrasive discs, streamlining the workflow.

SPECIFICATIONS:

• Pad Size: 6 inches
• Pad Type: PSA (Pressure Sensitive Adhesive)
• Orbit: 3/16 inch Offset Random-Orbit
• Speed: 10,000+ RPM
• Weight: 2 lbs 3.5 oz
• Air Consumption: 10.7 CFM at 90 PSI
• Noise Level: 81 dBa
• Air Inlet Size: 1/4 inch
• Vacuum Type: Non-vacuum
• Country of Origin: USA
• Included in Product: Hutchins 3/16″ Offset General Purpose Sander 6″ PSA (3560) unit.

HOW TO USE:

1. Prepare the Sander: Connect the sander to a clean, lubricated air source capable of providing at least 90 PSI and 11 CFM. Ensure the air hose is free of kinks and has an inline air filter if not already present.
2. Attach Abrasive Disc: Peel the backing off your desired 6-inch PSA abrasive disc. Carefully align the disc with the sander’s pad and firmly press it onto the PSA surface to ensure full adhesion.
3. Adjust Air Pressure: Adjust your air compressor regulator to provide the recommended 90 PSI to the sander for optimal performance.
4. Start Sanding: Hold the sander firmly with both hands, placing the abrasive disc flat against the workpiece surface. Depress the trigger to activate the sander.
5. Move Evenly: Move the sander in overlapping, even passes across the surface. Avoid pressing down excessively; allow the tool’s weight and orbital action to do the work. Overlapping passes ensure consistent material removal and a uniform finish.
6. Monitor Abrasive: Periodically check the abrasive disc for wear or clogging. Replace the disc when it becomes dull or loses its cutting effectiveness to maintain optimal performance and finish quality.
7. Clean Up: After use, disconnect the sander from the air supply. Clean any dust or debris from the tool with compressed air. Store the sander in a clean, dry place.

BENEFITS OF USING HUTCHINS 3/16″ OFFSET GENERAL PURPOSE SANDER 6″ PSA (3560):

• Enhanced productivity due to aggressive yet controlled action.
• Superior finish quality with reduced swirl marks and rework.
• Less operator fatigue through vibration-reducing design.
• Reliable, American-made performance for professional use.
• Cost-effective results through speed, durability, and efficiency.

FEATURES:

• Precision-balanced motor for smooth operation.
• Ergonomic composite housing for comfort and insulation.
• Unique 4-bearing support system for pad stability.
• Oversized drive head for durability and power transfer.
• Patented pad release for simplified pad changes.
• Integrated muffler for quieter operation.
• Optimized internal air flow design for consistent power.
