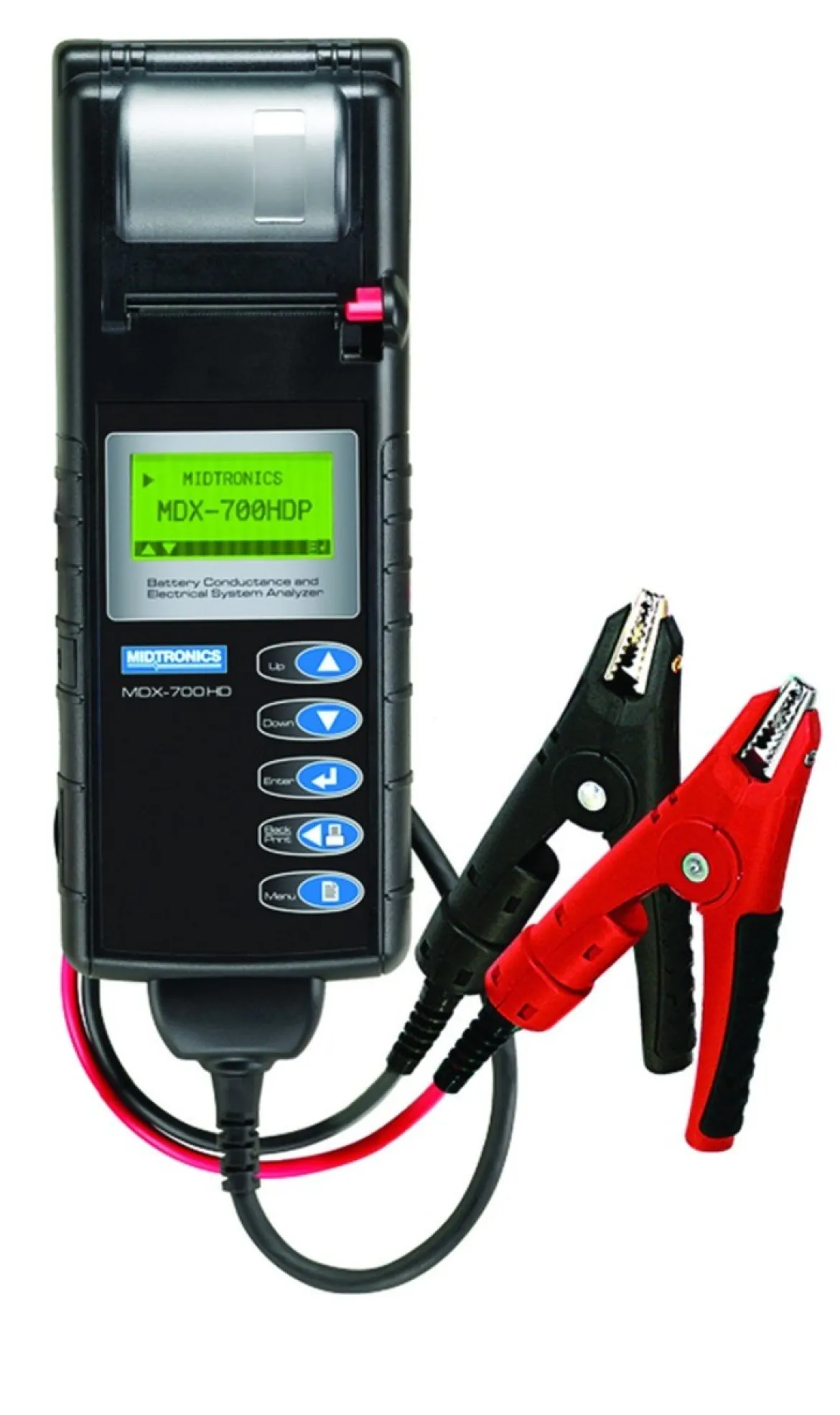

Heavy Duty Battery & Electrical System Analyzer with Printer (MDX-700P HD)

Heavy Duty Battery & Electrical System Analyzer with Integrated Printer (MDX-700P HD) simplifies the complex diagnostics of heavy-duty vehicles. This robust tool, enhanced with Midtronics’ patented conductance technology, offers precise and swift assessments of battery, starting, and charging systems, making it an indispensable asset for commercial and fleet applications. Its intuitive interface and user-friendly design allow for in-cab diagnostics, reducing downtime and improving operational efficiency.

• Specifications:
  • Display: 5-line Text / Graphical Backlit Display
  • Operating Temperature: 32°F to +122°F (0°C to +50°C)
  • Test Range: CCA, CA, MCA, JIS, SAE, EN, DIN, IEC (100-2000 by 5)
  • Voltage Range: 0.9 Volt DC to 30 Volt DC
  • Cable Length: 15′ / 455 cm
  • Power Requirements: Uses the power of the battery under test plus 6 AA Internal Batteries
  • Languages: English, Spanish, French Canadian
  • Housing Material: Acid Resistant ABS Plastic
  • Dimensions: 10.6″ x 3.9″ x 2.4″ (27 cm x 10 cm x 6 cm)
  • Weight: 1.7 lbs (544 g)
• Benefits:
  • SAFE for use in any service setting, showcasing professionalism.
  • FAST, delivering accurate diagnostics in seconds for improved throughput.
  • SIMPLE operation with an intuitive interface that ensures reliable results.
• Features:
  • Patented conductance technology for reliable battery testing up to 2000 CCA.
  • Capable of testing both 6 and 12 volt batteries within 12 to 24 volt systems.
  • Advanced algorithm allows quick identification of issues in battery, starting, or charging systems.
• Includes:
  • MDX-700 HD Series Analyzer
  • MDX-700 HD Software (installed)
  • Integrated Printer
  • Manual
  • Stud Adapters
  • 15′ Cable Set
  • Tool Bag
