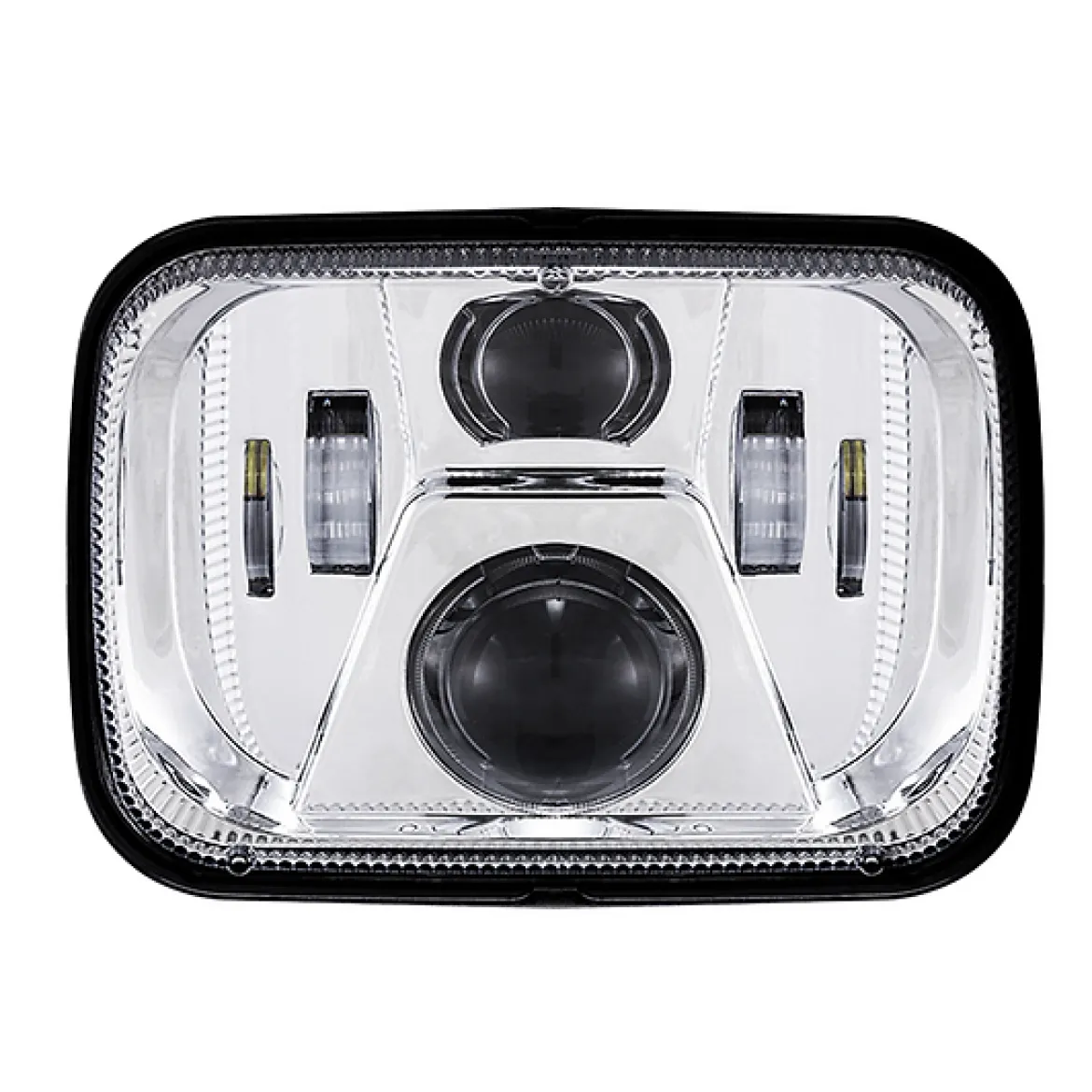

Haizer USA 5″x7″ Chrome Projector LED Headlight (HZR-5786)

Upgrade your vehicle’s lighting system with the Haizer USA 5″x7″ Chrome Projector LED Headlight (HZR-5786). Engineered for powerful performance and sleek styling, this headlight features an advanced projector lens and premium-quality LED illumination to deliver a focused, high-intensity beam. With output levels of 4,200 lumens on high beam and 2,800 lumens on low beam, it enhances visibility and safety in low-light conditions. The die-cast aluminum housing with a chrome finish and polycarbonate lens ensures durability, while the IP67 waterproof rating and 50,000+ hour lifespan provide long-term reliability. Ideal for vehicles using 5×7 inch sealed beam headlights, it installs easily with a standard H4 connector.

KEY FEATURES AND BENEFITS:

• Upgrade Lighting System: Replaces standard 5×7 inch sealed beam headlights with advanced LED projector illumination.
• Powerful Beam Output: Delivers 4,200 lumens on high beam and 2,800 lumens on low beam for optimal road coverage.
• Focused Light Distribution: Projector lens provides a precise beam pattern, reducing glare for other drivers.
• Bright White Color: 6,500K color temperature enhances road visibility and aesthetics.
• Durable Construction: Chrome die-cast aluminum housing with polycarbonate lens ensures long-lasting use.
• All-Weather Ready: IP67 waterproof rating protects against water and dust ingress.
• Efficient Performance: Operates at 55W with energy-efficient LED diodes.
• Easy Installation: Standard H4 connector supports plug-and-play setup on compatible vehicles.

SPECIFICATIONS:

• Part Number: HZR-5786
• Size: 5×7 Inches
• Power: 55W
• High Beam: 11 x 5W LED, 4,200 Lumens
• Low Beam: 6 x 5W LED, 2,800 Lumens
• Color Temperature: 6,500K
• Housing Material: Die-cast aluminum
• Housing Color: Chrome
• Lens Material: Polycarbonate
• Waterproof Rate: IP67
• Lifespan: > 50,000 Hours
• Connector: Standard H4
• Certification: DOT, SAE, CE, ROHS, IP67
• Included in Product: One (1) Haizer HZR-5786 5″x7″ Projector LED Headlight

HOW TO USE:

1. Safety First: Ensure your vehicle is turned off and the battery is disconnected before beginning any work.
2. Access Headlight: Locate and remove the bezel or trim surrounding your current 5×7 inch headlight. This may involve removing a few screws.
3. Remove Old Headlight: Disconnect the electrical connector from the back of your old headlight. Then, remove the retaining ring or screws and carefully pull it out.
4. Connect New Headlight: Connect the standard H4 connector from the Haizer HZR-5786 headlight to your vehicle’s H4 wiring harness.
5. Install New Headlight: Carefully place the headlight into the bucket and secure it with the retaining ring or screws removed earlier.
6. Reattach Bezel: Reinstall any bezel or trim that was removed.
7. Reconnect Power & Test: Reconnect your vehicle’s battery. Turn on your lights and test both high and low beams.
8. Aim Adjustment: If necessary, adjust the headlight aim as per your vehicle’s specifications or local regulations.

BENEFITS OF USING HAZIER USA 5″X7″ CHROME PROJECTOR LED HEADLIGHT (HZR-5786):

• Enhanced Nighttime Driving: Brighter and more uniform lighting improves visibility in dark or low-light conditions.
• Increased Road Safety: Focused beam minimizes glare and maximizes on-road visibility for safer driving.
• Reliable Performance: IP67 waterproof rating and durable materials ensure consistent function in any weather.
• Modern Aesthetic: Chrome housing and bright white light give your vehicle a refreshed, high-end look.
• Cost-Effective Upgrade: Long lifespan reduces replacement frequency and associated maintenance costs.

FEATURES:

• Bright white 6,500K light output
• Universal application for 5×7 inch headlight systems
• Die-cast aluminum housing with chrome finish
• Polycarbonate lens material
• IP67 rated for water and dust resistance
• Standard H4 electrical connector
• Over 50,000 hour operational lifespan
• DOT, SAE, CE, and ROHS certified
