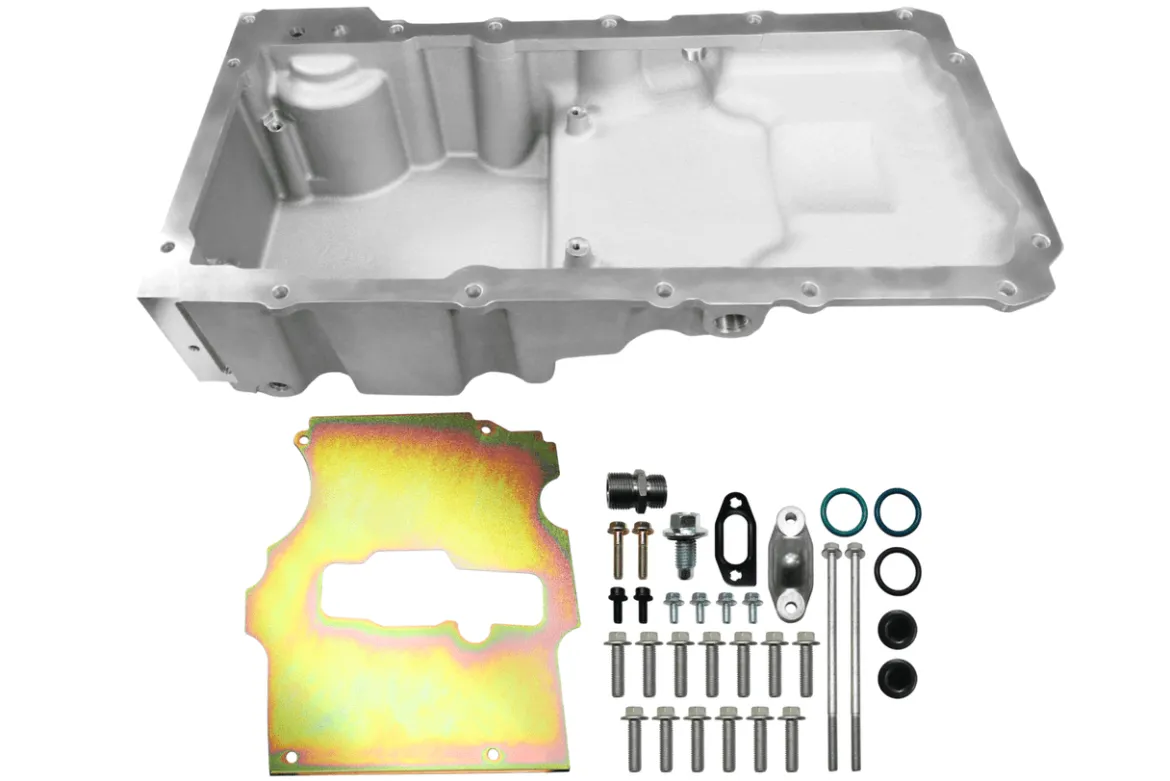

FiTech Ultra Low Profile Satin 6.10 Qt Engine Oil Pan (130003)

The FiTech Ultra Low Profile Satin 6.10 Qt Engine Oil Pan (130003) is designed to address clearance issues encountered during LS engine swaps in classic vehicles. Its ultra-low profile design allows for installation in tight chassis environments, making it ideal for a wide range of GM muscle cars, trucks, and Ford Fox body applications. This oil pan provides a 6.10-quart capacity, including the oil filter, and supports crankshafts with up to a 4.00-inch stroke.

KEY FEATURES AND BENEFITS:

• Ultra-Low Profile Design: Maximizes chassis clearance for tight engine bays.
• Adequate Oil Capacity: 6.10-quart total oil capacity (with filter) ensures proper lubrication.
• Crankshaft Compatibility: Supports up to a 4.00-inch stroke crankshaft.
• Versatile Fitment: Direct fit for many 1955-1987 GM vehicles and Ford Fox body Mustangs.
• Oil Return Bosses: Includes oil return bosses for easy oil line connections.
• Baffled Design: Prevents oil starvation during high-performance driving.
• Oil Filter Compatibility: Works with standard off-the-shelf oil filters.
• OEM Features: Supports OEM oil filter mounting and cooler port provision.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Part Number: 130003
• Sump Style: Wet
• Oil Pan Style: Street/Strip
• Sump Location: Rear
• Oil Capacity: 6.10 quarts (with filter)
• Maximum Stroke: 4.00 inches
• Oil Pan Depth: 5.375 inches
• Material: Cast Aluminum
• Color: Natural (Satin Finish)
• Compatibility:
• 1967-1969 F-body (Camaro/Firebird)
• 1982-1992 F-body
• 1968-1974 X-body
• 1978-1987 G-body
• 1964-1972 A-body applications
• 1979-2004 Mustang
• 1979-1986 Capri Fox bodies
• 1960-1972 C-10 Trucks

HOW TO USE:

• Drain Engine Oil: Remove the existing oil from the engine.
• Remove Old Components: Detach the existing oil pan and gasket.
• Prepare Mounting Surface: Clean the engine block’s oil pan mounting area.
• Install New Oil Pan: Position the FiTech 130003 oil pan with a new gasket.
• Attach Pick-Up Tube: Install the included pick-up tube.
• Modify Windage Tray: Adjust a GM “F-body” windage tray (GM P/N 12558253) for clearance and install.
• Install Oil Filter: Use a standard oil filter (e.g., AC Delco PF48).
• Refill Engine Oil: Add the correct amount and type of oil.
• Check for Leaks: Inspect for any leaks and ensure proper oil pressure.

BENEFITS OF USING THE FITECH ULTRA LOW PROFILE SATIN 6.10 QT ENGINE OIL PAN (130003):

• Enhanced Clearance: Provides essential space for LS engine swaps in vehicles with limited room.
• Optimal Lubrication: Maintains proper oil capacity for engine longevity.
• Wide Compatibility: Suitable for various classic GM and Ford vehicles.
• Easy Installation: Features OEM-style design for a straightforward setup.
• Convenient Oil Filter Use: Works with common, readily available oil filters.

FEATURES:

• Integrated oil return bosses on both sides of the pan.
• Internal baffling to control oil movement.
• Designed for use with a modified GM F-body windage tray.
• Cast aluminum construction for strength and heat dissipation.
• Includes sump plug, oil filter stud, and oil passage cover.
• Works with standard oil filters, no need for special-order parts.
