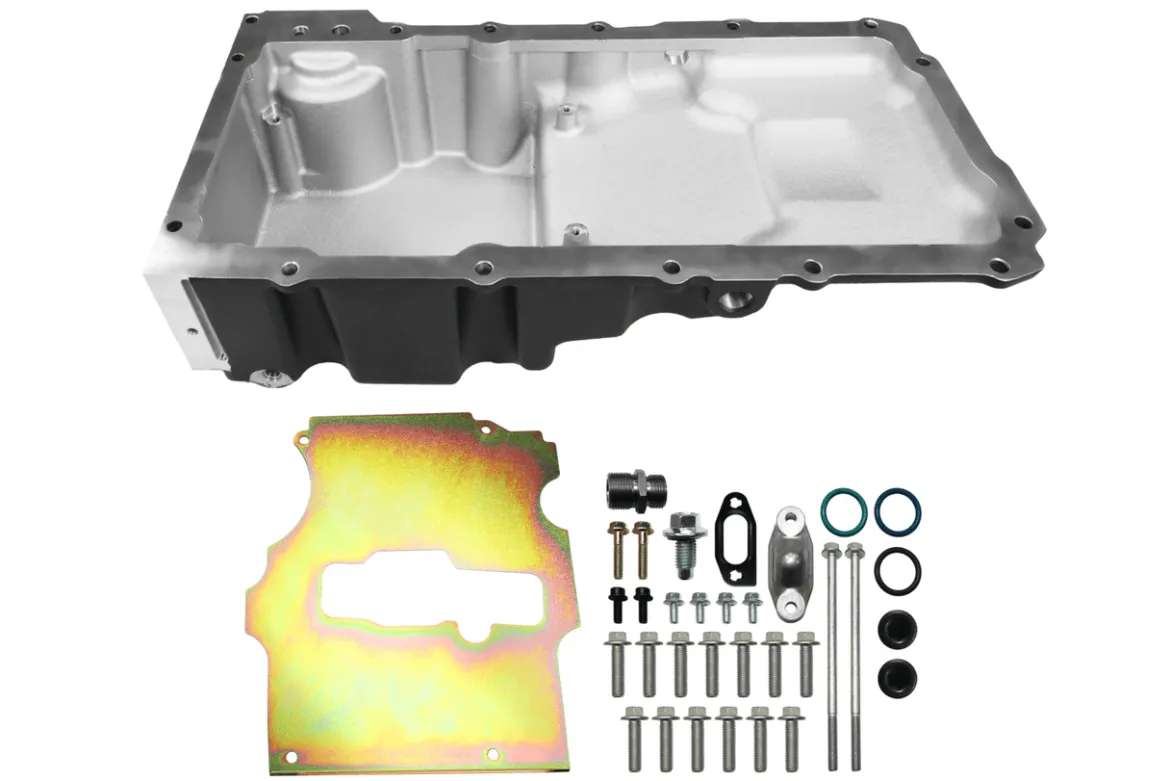

FiTech Ultra Low Profile Black 6.10 Qts Engine Oil Pan (130203)

The FiTech Ultra Low Profile Black 6.10 Qts Engine Oil Pan (130203) is engineered to provide essential clearance for LS engine installations in vehicles with limited space. Its ultra-low profile design accommodates 4.00-inch stroke crankshafts, making it suitable for high-performance applications. With a 6.10-quart capacity, including the oil filter, it ensures proper lubrication. This oil pan is compatible with a wide range of GM and Ford models, making it a versatile choice for LS swaps.

KEY FEATURES AND BENEFITS:

• Ultra-low profile design: Provides necessary clearance for tight chassis configurations.
• Accommodates crankshaft strokes up to 4.00 inches: Suitable for high-performance builds.
• 6.10-quart oil capacity (with filter): Ensures adequate engine lubrication.
• Direct fit compatibility: Designed for many 1955-1987 GM muscle cars and trucks, as well as Ford Fox bodies.
• Uses standard oil filters: Allows for easy maintenance and replacement.
• Includes 1/2-inch NPT oil return bosses: Facilitates turbo or supercharger oil return lines.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Part Number: 130203
• Material: Cast Aluminum
• Color: Black
• Sump Style: Wet
• Sump Location: Rear
• Capacity: 6.10 quarts (with filter)
• Maximum Stroke: 4.00 inches
• Oil Pan Depth: 5.375 inches
• Compatibility:
  • 1967-1969 F-body (Camaro/Firebird)
  • 1982-1992 F-body
  • 1968-1974 X-body
  • 1978-1987 G-body
  • 1964-1972 A-body applications
  • 1979-2004 Mustang
  • 1979-1986 Capri Fox bodies
  • 1960-1972 C-10 Trucks

HOW TO USE:

• Preparation: Drain the existing oil from the engine. Remove the old oil pan and gasket.
• Windage Tray Modification: Modify the GM “F-body” windage tray (GM P/N 12558253) to provide clearance for the pick-up tube.
• Installation: Install the modified windage tray. Place the FiTech 130203 oil pan onto the engine block, ensuring proper alignment.
• Fastening: Secure the oil pan using the appropriate bolts, following the manufacturer’s torque specifications.
• Pick-up Tube and Filter: Install the provided pick-up tube and a compatible oil filter (e.g., AC Delco PF48).
• Oil Refill: Refill the engine with the correct amount of oil (6.10 quarts total with filter).
• Leak Check: Start the engine and check for any oil leaks around the pan and filter.

BENEFITS OF USING FITECH ULTRA LOW PROFILE BLACK 6.10 QTS ENGINE OIL PAN (130203):

• Provides necessary clearance for LS swaps in tight spaces, preventing interference with chassis components.
• Allows the use of stroker crankshafts up to 4.00 inches, enhancing engine performance.
• Maintains proper oil capacity for effective engine lubrication.
• Simplifies LS engine installations in a variety of classic GM and Ford vehicles.
• The oil return bosses allow for easy turbo or supercharger oil return lines.

FEATURES:

• Cast aluminum construction.
• Black finish.
• Baffled sump.
• OEM oil filter mounting provision.
• OEM oil cooler port provision.
• 1/2-inch NPT oil return bosses on each side.
• Includes pick-up tube, sump plug, oil filter stud, and oil passage cover.
• Designed for use with a modified GM F-body windage tray.
