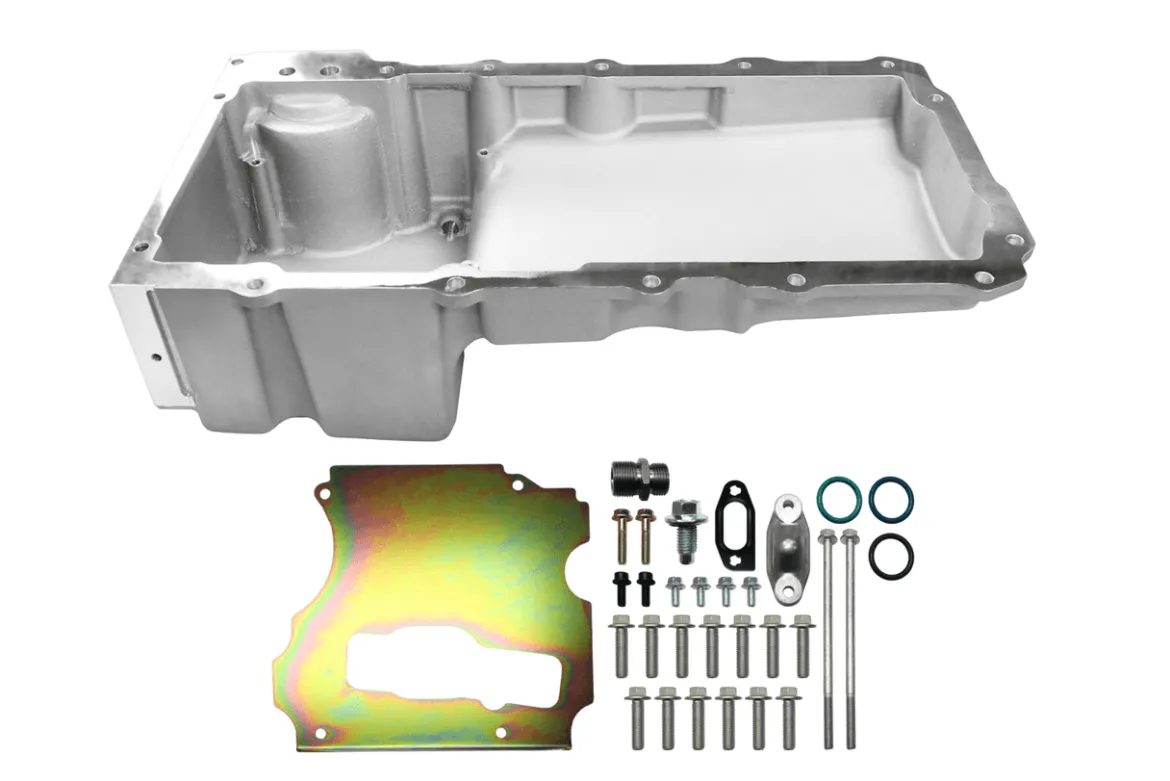

FiTech Standard Profile Satin 6 Qts Engine Oil Pan (130001)

The FiTech Standard Profile Satin 6 Qts Engine Oil Pan (130001) is designed for LS engine conversions in classic GM rear-wheel-drive vehicles. This standard profile oil pan provides a 6-quart capacity, including the oil filter, and is ideal for applications where chassis clearance is not a primary concern. Constructed from cast aluminum with a satin finish, it offers a robust and reliable solution for stroker LS engines up to 4.25 inches.

KEY FEATURES AND BENEFITS:

• Engine Compatibility: Designed for LS engine swaps in classic GM rear-wheel-drive vehicles.
• Oil Capacity: 6.0-quart total oil capacity (with filter).
• Rear Sump Design: Compatible with traditional rear sump chassis.
• Stroker Clearance: Accommodates crankshafts up to 4.25 inches.
• OEM Fitment: Supports oil filters, oil cooler ports, and dipstick/tube.
• Included Components: Comes with sump baffle, pickup tube, sump plug, oil filter stud, and oil passage cover.
• Filter Compatibility: Works with standard off-the-shelf oil filters.
• Dipstick Compatibility: Uses OEM LS3 dipstick and dipstick tube.
• Windage Tray: Designed for use with an OEM full-length windage tray.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Part Number: 130001
• Oil Pan Style: Street/Strip
• Sump Location: Rear
• Oil Pan Capacity: 6.0 quarts
• Maximum Stroke: 4.25 inches
• Oil Pan Depth: 5.70 inches
• Material: Cast Aluminum
• Finish: Satin
• Compatibility: Most GM rear-wheel-drive applications originally equipped with a Small Block or Big Block Chevy engine.
• Windage Tray: Designed to use GM Part #: 12611129

HOW TO USE:

• Drain Oil: Completely drain existing engine oil.
• Remove Old Oil Pan: Detach the existing oil pan from the engine.
• Clean Surface: Thoroughly clean the engine block’s oil pan mounting surface.
• Install FiTech 130001 Oil Pan: Position the new oil pan using the appropriate gasket (purchased separately).
• Attach Components: Install the included sump baffle, pickup tube, sump plug, oil filter stud, and oil passage cover.
• Install Dipstick: Attach the OEM LS3 dipstick and dipstick tube.
• Windage Tray Installation: Install the GM full-length windage tray (or a compatible alternative).
• Oil Filter Installation: Install the desired oil filter.
• Refill Oil: Fill the engine with the recommended quantity and type of oil.
• Check System: Inspect for leaks and verify proper oil level.

BENEFITS OF USING THE FITECH STANDARD PROFILE SATIN 6 QTS ENGINE OIL PAN (130001):

• Reliable Oil Management: Ensures proper oil capacity for LS engine swaps.
• Stroker Engine Compatibility: Supports engines with up to 4.25-inch stroke.
• Easy Installation: Features OEM-compatible fitment for hassle-free setup.
• Durability: Made from high-quality cast aluminum for long-lasting performance.
• Oil Filter Compatibility: Accepts commonly available oil filters.
• Optimized Oil Pickup: Includes a pickup tube and baffle for efficient oil flow.

FEATURES:

• Cast aluminum construction.
• Rear sump configuration.
• Integrated sump baffle.
• Included pickup tube.
• Provision for OEM oil cooler ports.
• OEM flange gasket and sealing design.
• Integrated oil filter stud.
• Oil passage cover included.
• Sump plug included.
• Stroker clearance.
