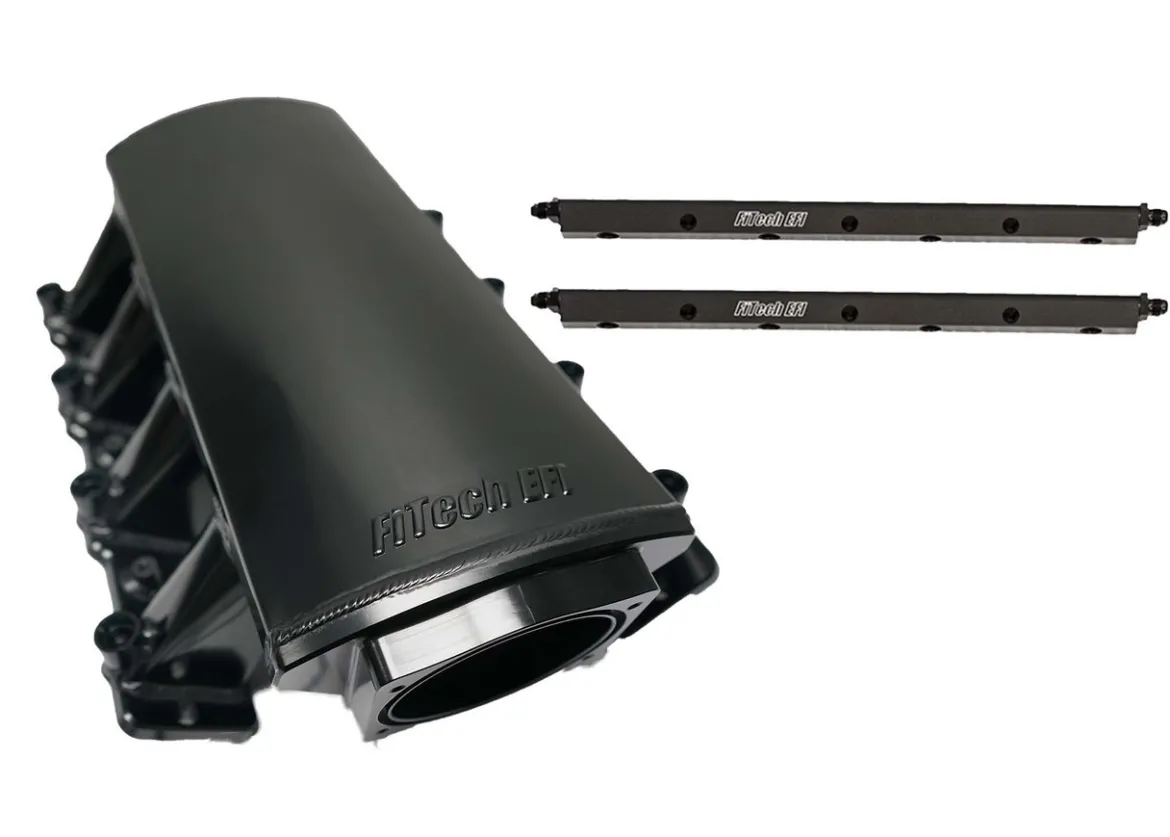

FiTech Short Aluminum Intake Manifold w/ Rails (70067)

The FiTech Short Aluminum Intake Manifold w/ Rails (70067) offers a comprehensive solution for LS7 engine fuel injection systems. This kit is designed to provide a ready-to-install component for both DIY enthusiasts and professional tuners, eliminating the need for sourcing and matching individual parts. This manifold and fuel rail set is optimized for performance, specifically for LS7 engines with raised rectangular port cylinder heads.

KEY FEATURES AND BENEFITS:

• Simplified Fuel Injection: Offers a complete manifold and fuel rail solution for LS7 engines.
• Lightweight Durability: Constructed from aluminum for a balance of strength and weight savings.
• Complete Installation Kit: Includes fuel rails, o-ring seals, and hardware to streamline the installation process.
• Performance Range: Designed for a 1,500-6,500 RPM operating range, supporting high-performance applications up to 750 HP.
• Enhanced Airflow: The 102mm throttle body bore size improves engine performance by maximizing airflow.

SPECIFICATIONS:

• Manufacturer Part Number: 70067
• Engine Compatibility: LS7
• Cylinder Head Configuration: Raised Rectangular Port LS7
• Fuel Injection Style: Multi-port
• Basic Operating RPM Range: 1,500-6,500
• Throttle Body Bore Size: 102mm
• Material: T-6061 Aluminum
• Fuel Rails: Included
• Injectors: Not Included
• Throttle Body: Not Included
• Weight: 18 lbs
• Dimensions: 29 × 17 × 11 in
• Finish: Black anodized

HOW TO USE:

• Preparation: Ensure the LS7 engine is properly prepared, with the old intake manifold removed and the cylinder head surfaces cleaned.
• Installation of Seals: Install the provided o-ring seals onto the manifold.
• Manifold Placement: Carefully position the FiTech 70067 manifold onto the cylinder heads, ensuring proper alignment.
• Hardware Installation: Secure the manifold using the included hardware, tightening to the manufacturer’s torque specifications.
• Fuel Rail Connection: Attach the fuel rails to the manifold, connecting the AN fittings and fuel crossover.
• Fuel System Integration: Connect the fuel lines to the fuel rails, ensuring secure connections.
• Throttle Body Mounting: Install a compatible 102mm throttle body (not included).
• Final Checks: Verify all connections and ensure proper sealing before starting the engine.

BENEFITS OF USING THE FITECH SHORT ALUMINUM INTAKE MANIFOLD W/ RAILS (70067):

• Simplified installation process for LS7 fuel injection systems.
• Optimized for high-performance applications.
• Complete kit with necessary hardware and seals included.
• Durable aluminum construction ensures longevity.
• Improved airflow with a 102mm throttle body bore enhances performance.
• Direct fit for LS7 raised rectangular port heads.

FEATURES:

• Short Runner Design: Optimized for high RPM power delivery.
• Billet Aluminum Fuel Rails: Includes AN fittings for secure connections.
• Machined Supplemental Bosses: Adds flexibility for additional components.
• Corrosion Resistance: Black anodized finish for durability.
• Designed for Standard Deck Height: Fits standard LS blocks seamlessly.
• Includes O-Ring Seals and Hardware: All necessary components for a complete installation.
• Designed for 750 HP LS7 Engines: Tailored for high-performance setups.
