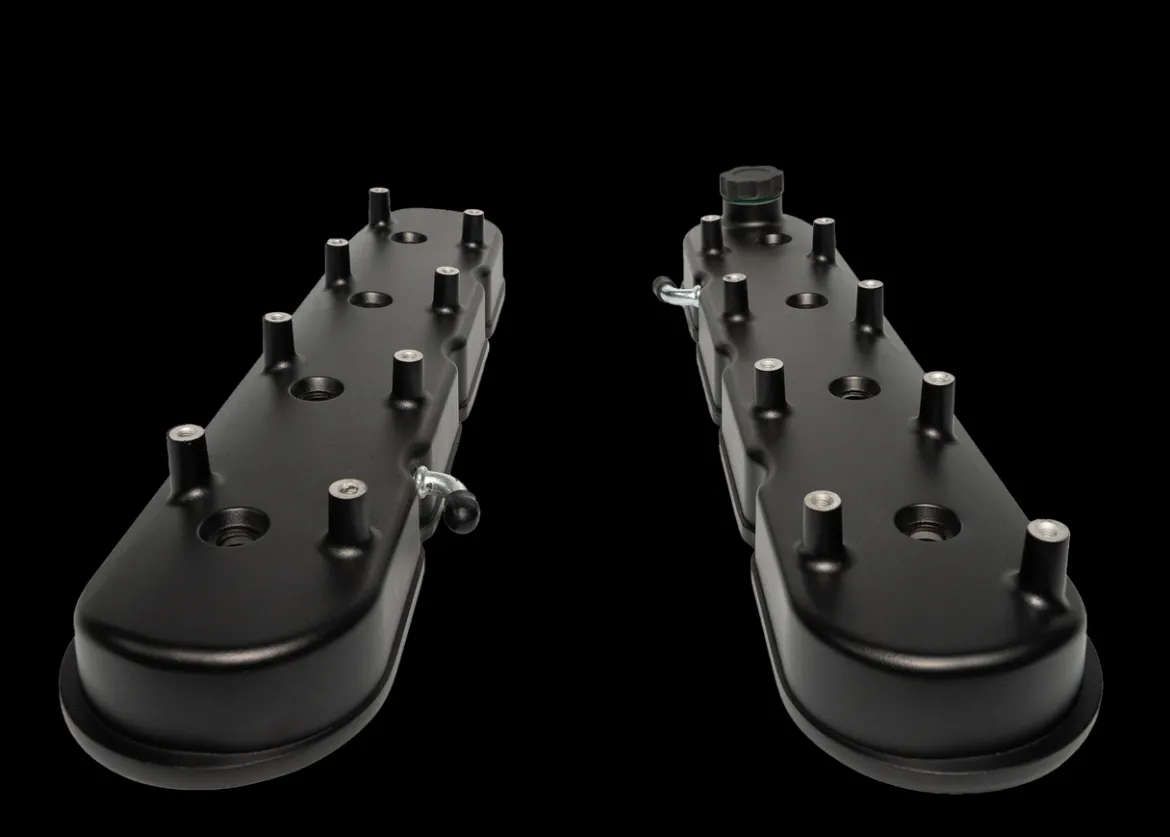

FiTech Plus LS Tall Black Valve Covers w/Coil Mounts (131201)

Enhance the visual appeal and functionality of your LS-based engine with the FiTech Plus LS Tall Black Valve Covers w/Coil Mounts (131201). Designed for enthusiasts seeking a stylish upgrade, these tall valve covers offer a sleek, black satin finish that complements any engine bay. Crafted from durable cast aluminum, this pair of valve covers provides a custom look without compromising on compatibility or performance. The integrated coil mounts are specifically designed for LS coils with 72mm bolt spacing, ensuring a secure and organized installation. With the included oil fill cap, gaskets, and mounting hardware, upgrading your engine’s appearance is straightforward and effective. The tall design of these valve covers is engineered to clear most high-lift valve train options, making them a versatile choice for a range of engine builds.

KEY FEATURES AND BENEFITS:

• Enhanced Engine Aesthetics: Provides a sleek, black satin finish that significantly improves the look of your LS engine bay.
• Designed for LS Engines: Specifically engineered for a wide range of LS-based engines, ensuring proper fitment.
• Integrated Coil Mounts: Features coil mounting bosses for Gen 5 LS3 bolt spacing (72mm), allowing for angle mounting of coils for a clean setup.
• Tall Design for Valve Train Clearance: Offers increased height to accommodate most high-lift valve train options (less than 0.700″).
• Complete Installation Kit: Includes o-ringed oil filler cap, gaskets, and all necessary mounting hardware for both the valve covers and coils.
• Durable Construction: Made from cast aluminum for lasting performance and a quality feel.
• Baffled Design: Incorporates baffles to help manage oil and ensure proper ventilation.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Manufacturer’s Part Number: 131201
• Part Type: Valve Covers
• Product Line: FiTech Plus LS Valve Covers
• Valve Cover Mounting Style: Centerbolt / OEM Style retentioned bolts/pattern
• Valve Cover Height: Tall (3.00″ / 76.2mm without coils)
• Valve Cover Top Style: Coil Mounts, No Cover
• Valve Cover Material: Cast Aluminum
• Color: Black
• Finish: Satin
• Baffled: Yes
• Breathers Included: No
• Gaskets Included: Yes
• Grommets Included: Yes
• Mounting Hardware Included: Yes
• Quantity: Sold as a pair
• Notes: Includes oil fill cap. Fits LS coils with 72mm bolt spacing. Tall design clears most high-lift valve train options.
• Compatibility: LS-based engines

HOW TO USE:

1. Preparation: Ensure the engine is cool and the vehicle is safely supported. Gather the provided FiTech Plus LS Valve Covers, gaskets, grommets, mounting hardware for both the covers and coils, and necessary tools.
2. Remove Existing Valve Covers: Carefully remove the existing valve covers from your LS engine, taking note of the location of any hoses or wires that may be attached. Clean the cylinder head surfaces to ensure a proper seal.
3. Install Grommets (If Applicable): If your engine requires grommets for the valve covers, install the provided grommets into the new FiTech valve covers.
4. Position Gaskets: Place the provided gaskets onto the cylinder head surfaces, aligning them with the bolt holes.
5. Mount Valve Covers: Carefully position the FiTech Plus LS Valve Covers onto the cylinder heads, aligning the bolt holes with the gaskets and the holes on the cylinder head.
6. Secure Valve Covers: Using the provided mounting hardware, hand-tighten the valve cover bolts in a crisscross pattern to ensure even pressure. Then, torque the bolts to the manufacturer’s recommended specifications.
7. Install Coils: Mount your LS coils onto the integrated coil mounting bosses on the valve covers using the provided coil mounting hardware. Ensure the coils are securely fastened at an angle as designed.
8. Install Oil Fill Cap: Secure the provided o-ringed oil fill cap onto the designated opening on one of the valve covers.
9. Reattach Components: Reattach any hoses or wires that were removed during the initial disassembly.
10. Final Check: Double-check all connections and ensure that the valve covers and coils are securely mounted. Start the engine and check for any leaks.

BENEFITS OF USING FITECH PLUS LS TALL BLACK VALVE COVERS W/COIL MOUNTS (131201):

• Enhanced Engine Bay Appearance: Instantly upgrades the look of your engine with a clean, black satin finish.
• Improved Organization: Integrated coil mounts provide a tidy and organized solution for mounting LS coils.
• Accommodation for Performance Upgrades: The tall design allows for the use of aftermarket high-lift valve train components, beneficial for performance enthusiasts.
• Direct Fit and Easy Installation: Designed specifically for LS engines, ensuring a straightforward installation process with included hardware.
• Durable and Reliable: Constructed from cast aluminum, offering long-lasting performance and protection for your engine’s valve train.
• Complete Package: Comes with all necessary components like gaskets, grommets, oil fill cap, and mounting hardware, saving time and effort in sourcing additional parts.

FEATURES:

• Cast Aluminum Construction: Provides strength and durability while maintaining a relatively lightweight design.
• Satin Black Finish: Offers a modern and aggressive look that complements various engine bay aesthetics.
• Centerbolt Mounting System: Utilizes a common and secure mounting style for easy installation on LS engines.
• Baffled Interior: Helps to separate oil vapor from crankcase gases, promoting better engine health.
• O-Ringed Oil Fill Cap: Ensures a tight and secure seal for the oil fill port, preventing leaks.
