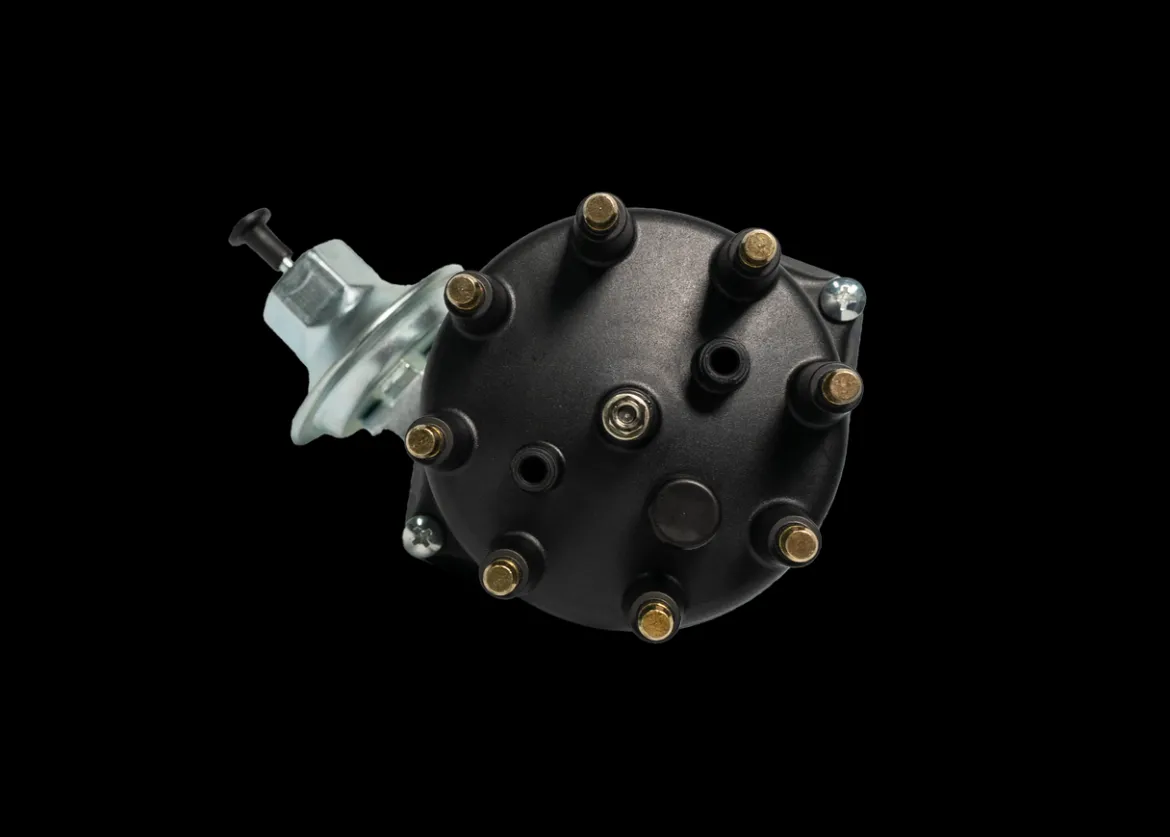

FiTech Oldsmobile 260/455 Mech.Adv Vac. 2-Wire Mag Distributor (99048)

The FiTech Oldsmobile 260/455 Mech.Adv Vac. 2-Wire Mag Distributor (99048) is specifically engineered to enhance the ignition system of Oldsmobile 260 and 455 engines. This distributor utilizes a 2-wire magnetic pickup for accurate triggering and offers both vacuum and mechanical advance for precise timing control. Constructed with a CNC-machined aluminum housing and a hardened iron drive gear, it ensures durability and reliable performance. This unit includes an ignition module and distributor cap but requires an external ignition box to operate.

KEY FEATURES AND BENEFITS:

• Precise Ignition Timing: Provides accurate timing control for Oldsmobile 260-455 engines.
• Magnetic Pickup System: Features a 2-wire magnetic pickup for accurate triggering.
• Adjustable Advance: Offers vacuum and mechanical advance for adjustable timing curves.
• Durable Construction: CNC-machined 6061 T-6 aluminum housing ensures long-lasting durability.
• Long Service Life: Includes a hardened iron distributor gear for extended use.
• Complete Unit: Comes with a distributor cap and ignition module.
• Customizable Timing: Allows for fine-tuned ignition adjustments to improve engine performance and efficiency.

SPECIFICATIONS:

• Part Number: 99048
• Engine Compatibility: Oldsmobile 260-455
• Trigger Style: Magnetic
• Advance Type: Vacuum and Mechanical
• Ignition Coil Included: No
• Ignition Module Included: Yes
• Distributor Cap Included: Yes
• Distributor Gear Material: Hardened Iron
• Housing Material: Aluminum
• Computer-Controlled Compatible: No
• Requires Ignition Box: Yes

HOW TO USE:

1. Turn Off Engine: Ensure the engine is turned off and cool.
2. Remove Old Distributor: Remove the existing distributor, noting the rotor position.
3. Install New Distributor: Install the FiTech 99048 Go-Spark Distributor, aligning the rotor to the noted position.
4. Connect Wiring: Connect the 2-wire magnetic pickup to the appropriate ignition box.
5. Install Distributor Cap: Install the distributor cap.
6. Connect Vacuum Advance: Connect the vacuum advance line.
7. Adjust Timing: Verify and adjust the timing using a timing light as needed.
8. Test Operation: Secure all connections and test the engine operation.

BENEFITS OF USING FITECH OLDSMOBILE 260/455 MECH.ADV VAC. 2-WIRE MAG DISTRIBUTOR (99048):

• Improved engine performance through precise timing control.
• Enhanced fuel efficiency with optimized timing curves.
• Reliable ignition with a high-output magnetic pickup.
• Durable construction for long-term use.
• Adjustable advance system for customized engine tuning.

FEATURES:

• Centerless ground shaft with upper sealed roller or ball bearing.
• Extended length Oil-Lite bronze bushing for smooth high-RPM operation.
• 30% glass-filled polyester (PBT) distributor cap for impact and dielectric strength.
• Brass cap contacts and stainless steel rotor spring for maximum conductivity.
• Standard distributor gear rotation.
• Black distributor cap.
