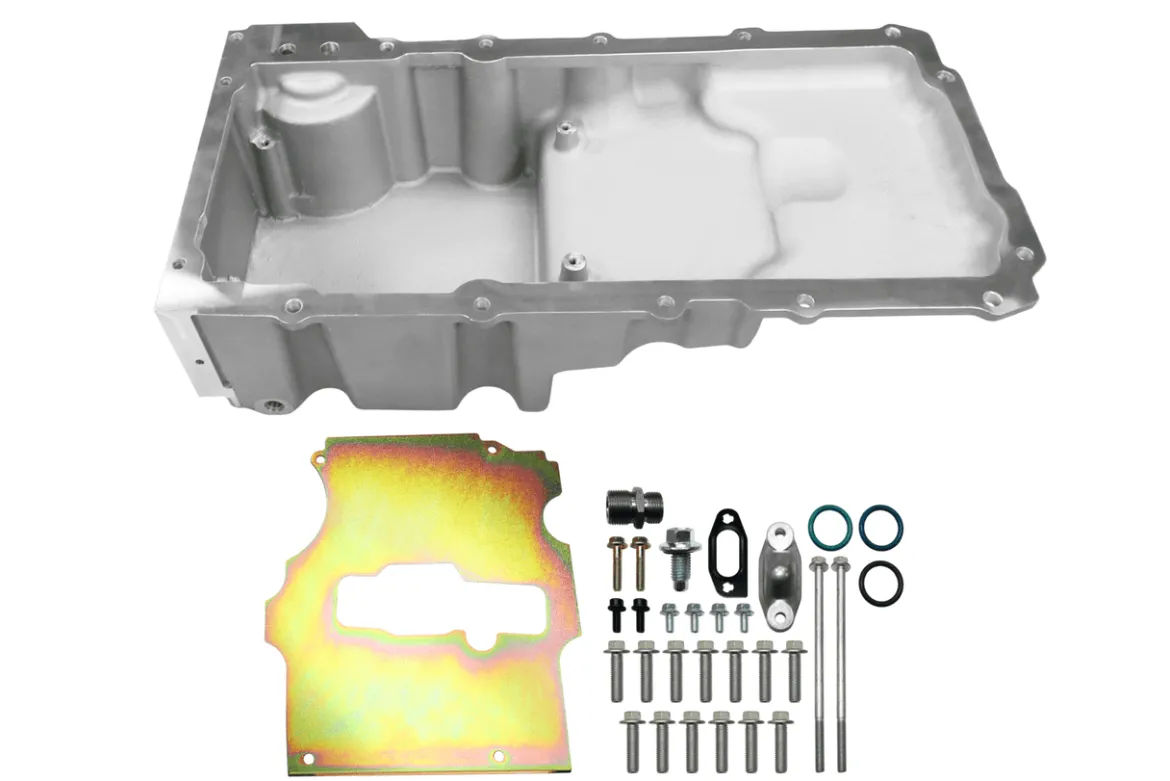

FiTech Medium Profile Satin 6.25 Qt Engine Oil Pan (130002)

The FiTech Medium Profile Satin 6.25 Qt Engine Oil Pan (130002) is engineered to facilitate LS engine swaps in classic GM vehicles from 1955 to 1987. This medium-profile oil pan offers a 6.2-quart capacity, providing essential oil containment and circulation for your LS engine. It’s specifically designed to accommodate stroker crankshafts, addressing a common challenge in LS swap projects. This pan is a comprehensive solution, including a sump baffle, pick-up tube, sump plug, oil filter stud, and oil passage cover, ensuring a complete installation.

KEY FEATURES AND BENEFITS:

• Medium-Profile Design: Ideal for LS engine swaps in classic GM vehicles.
• Oil Capacity: 6.2 quarts total oil capacity, ensuring proper lubrication.
• Stroker Crankshaft Clearance: Accommodates up to a 3.62-inch stroke.
• Complete Installation Kit: Includes sump baffle, pick-up tube, sump plug, oil filter stud, and oil passage cover.
• Oil Filter Compatibility: Works with standard off-the-shelf oil filters.
• OEM Dipstick Compatibility: Uses OEM LS3 dipstick and dipstick tube for accurate oil level monitoring.
• Additional Features: Supports OEM oil filter mounting, oil cooler ports, and engine NVH suppression.

SPECIFICATIONS:

• Sump Style: Wet
• Oil Pan Style: Street/Strip
• Sump Location: Rear
• Oil Pan Capacity: 6.20 quarts (includes filter)
• Stroker Clearanced: Yes
• Maximum Stroke with OE Rod: 3.620 inches
• Oil Pan Depth: 5.460 inches
• Oil Pan Material: Aluminum
• Oil Pan Color: Natural
• Baffled: Yes
• Compatibility: 1967-1969 F-body (Camaro/Firebird), 1982-1992 F-body, 1968-1974 X-body, 1978-1987 G-body, 1964-1972 A-body, 1960-1972 C-10 Trucks.

HOW TO USE:

• Check Compatibility: Verify the LS engine and vehicle compatibility.
• Prepare Engine: Ensure the engine block is clean and free of debris.
• Remove Old Components: Detach any existing oil pan and related parts.
• Remove Dipstick Hole Plug: If applicable, take out the dipstick hole plug.
• Install Oil Passage Cover: Secure the provided oil passage cover.
• Attach Pick-Up Tube: Connect the pick-up tube to the oil pump.
• Mount Oil Pan: Position the FiTech 130002 oil pan and secure it using the provided hardware.
• Install Components: Attach the oil filter stud and sump plug.
• Modify Windage Tray: Adjust and install a GM “F-body” windage tray.
• Install Dipstick: Place the OEM LS3 dipstick and dipstick tube.
• Refill Oil: Add the recommended oil type and quantity.
• Inspect for Leaks: Check the system to ensure there are no leaks.

BENEFITS OF USING FITECH MEDIUM PROFILE SATIN 6.25 QT ENGINE OIL PAN (130002):

• LS Swap Optimization: Facilitates LS engine swaps in classic GM vehicles.
• Enhanced Clearance: Provides necessary space for stroker crankshafts.
• Improved Lubrication: Ensures proper oil circulation and containment.
• Easy Installation: Comes with a complete kit for seamless setup.
• Filter Compatibility: Supports standard oil filters for convenience.
• OEM Integration: Allows the use of factory dipstick and related components.

FEATURES:

• Cast aluminum construction.
• Integrated sump baffle.
• Provision for OEM oil cooler ports.
• Designed for OEM engine NVH suppression.
• Uses OEM flange gasket and sealing.
• Enhanced structural rigidity.
• OEM bell housing attachments.
• Designed to use a GM “F-body” windage tray.
• Compatible with a range of standard oil filters.
