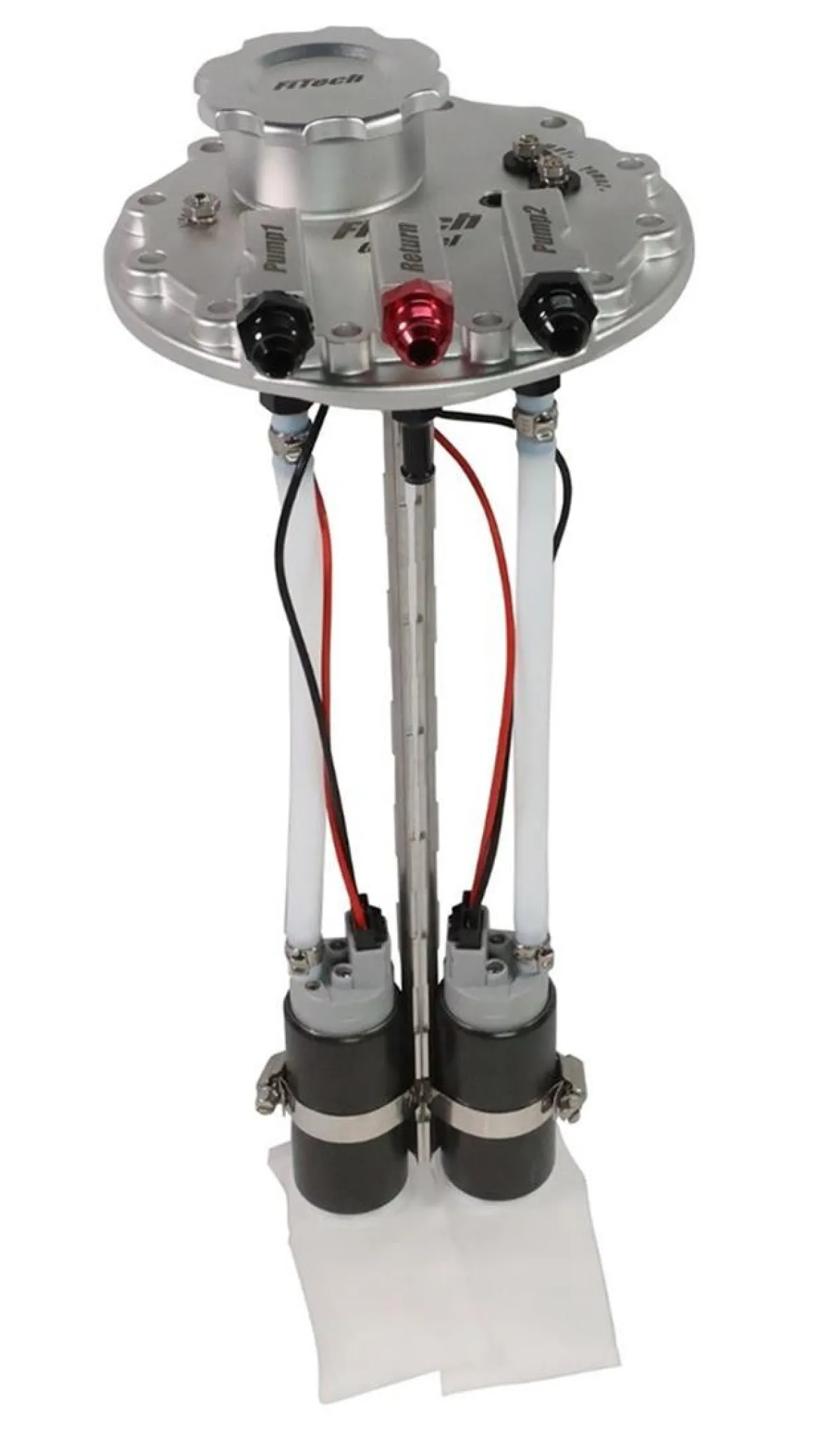

FiTech In Tank Dual Pump Module With 2 Inch Fill (50020)

The FiTech In Tank Dual Pump Module With 2 Inch Fill (50020) is a high-performance solution for upgrading fuel cells or custom fuel tanks. This module provides a reliable, high-volume fuel delivery system, featuring dual 340 LPH electric pumps capable of supporting up to 1600 horsepower. Designed for versatility, it can be adjusted to fit tanks ranging from 7 to 16 inches in depth, and its E85 compatibility makes it suitable for a wide range of applications.

KEY FEATURES AND BENEFITS:

• Dual Pumps: Two 340 LPH electric fuel pumps for high-volume fuel delivery.
• High Power Support: Capable of supporting up to 1600 horsepower, ideal for high-performance engines.
• Adjustable Depth: Fits fuel tanks with depths ranging from 7 to 16 inches.
• Fuel Compatibility: E85 and flex fuel compatible, offering versatility in fuel choices.
• Integrated Filler Assembly: 2-inch filler assembly with a sealed cap for easy refueling.
• Secure Connections: -6 AN O-ring boss fittings for leak-free fuel line connections.
• In-Tank Design: Cooler, quieter operation, and reduced risk of fuel starvation.
• CNC-Machined Top: Billet aluminum top for strength and precision.

SPECIFICATIONS:

• Fuel Pump Type: Electric In-tank
• Flow Rate: 340 LPH (per pump)
• Voltage: 12V
• Inlet/Outlet Size: -6 AN O-ring
• Inlet Quantity: 2
• Outlet Quantity: 1
• Tank Depth Adjustment: 7-16 inches
• Fuel Compatibility: Gasoline, E85, Flex Fuel
• Compatibility: Universal for fuel cells and custom tanks; direct fit for TANKS Inc. products.
• Weight: 9 lbs
• Dimensions: 12 × 17 × 9 in

HOW TO USE:

• Prepare the fuel tank by ensuring it is clean and free of debris.
• Adjust the pump module depth to match the tank’s depth (7-16 inches).
• Mount the module to the tank using the provided hardware, aligning the 12-bolt flange.
• Connect the -6 AN O-ring boss fittings for the feed and return lines.
• Attach the secure terminals for the electrical connections.
• Connect the 2-inch filler assembly.
• Install the filter sock/filter onto the pumps.
• Test the system for leaks and proper operation before final installation.

BENEFITS OF USING THE FITECH IN TANK DUAL PUMP MODULE WITH 2 INCH FILL (50020):

• Reliable Delivery: Provides a high-capacity fuel delivery system.
• Reduced Starvation Risk: In-tank design minimizes the chances of fuel starvation.
• Flexible Compatibility: Supports E85 and flex fuel options.
• Simplified Upgrades: Universal design eases fuel system upgrades.
• Secure Connections: Ensures leak-free fittings with -6 AN O-ring ports.
• Easy Refueling: Integrated fill cap simplifies the refueling process.

FEATURES:

• 2-Inch Filler Assembly: Includes a sealed cap for secure filling.
• -6 AN O-Ring Ports: For secure connections.
• Included Mounting Hardware: Facilitates easy installation.
• E85 Compatible Seals and Lines: Designed for versatile fuel types.
• Integrated Debris Filter: Protects the fuel system from contaminants.
