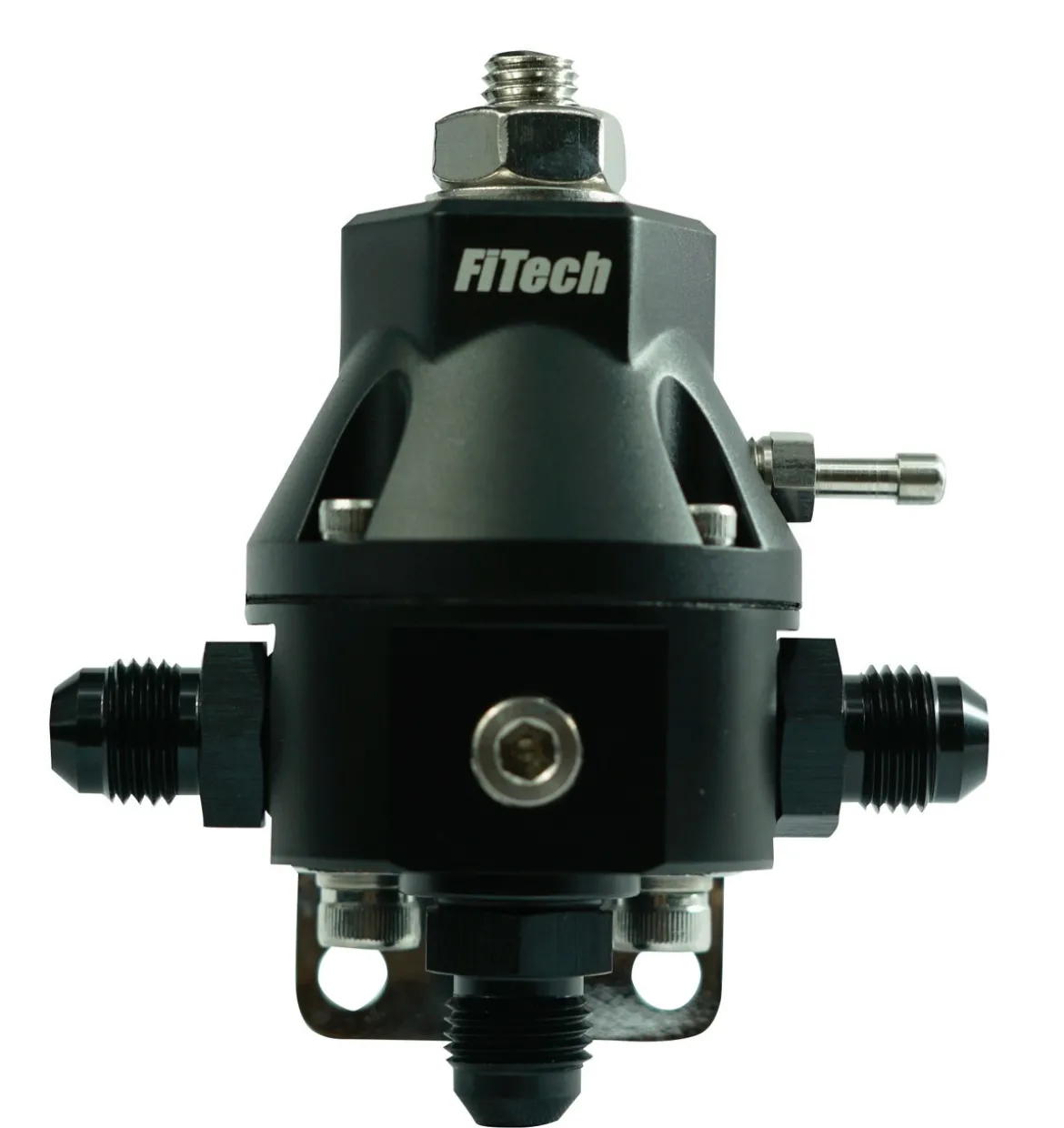

FiTech Go Fuel Tight Fit Regulator (54000)

The FiTech Go Fuel Tight Fit Regulator (54000) provides precise fuel pressure management for high-performance Electronic Fuel Injection (EFI) systems. This single-outlet regulator is engineered to maintain consistent fuel pressure, crucial for optimal engine performance. Constructed from billet aluminum, it offers strength and reliability. The unit includes -6 ORB ports and a vacuum/boost reference port, allowing for adjustments based on manifold pressure. Designed to support up to 1,000 horsepower on gasoline engines, it is suitable for demanding applications.

KEY FEATURES AND BENEFITS:

• Adjustable Fuel Pressure: Set fuel pressure within a 30-70 psi range for accurate fuel delivery.
• Durable Construction: Billet aluminum body provides strength and longevity.
• Viton Diaphragm: Compatible with various fuel types, including E85.
• Vacuum/Boost Reference Port: Enables adjustments in boosted applications.
• Simplified Installation: Includes fittings and a mounting bracket for easy setup.
• High-Flow Capability: Designed to handle high-flow fuel pumps and supports high-horsepower engines.

SPECIFICATIONS:

• Regulator Pressure: 30-70 psi
• Regulator Style: Return
• Inlet/Outlet Size: -6 AN
• Ports: -6 ORB
• Boost/Vacuum Reference: Yes (1:1 ratio)
• Gauge Port: Yes
• Material: Billet Aluminum
• Compatibility: Gasoline, E85
• Max Horsepower Support: 1,000 HP (gas engines)

HOW TO USE:

• Mounting: Secure the regulator using the included mounting bracket in a suitable location within the fuel system.
• Connections: Connect the fuel inlet and outlet lines to the -6 AN ports. Connect the vacuum/boost reference line if applicable.
• Pressure Adjustment: Use the adjustment screw to set the desired fuel pressure within the 30-70 psi range.
• Gauge Installation: Install a fuel pressure gauge into the gauge port to monitor pressure.
• Testing: Start the engine and verify the fuel pressure. Make adjustments as needed.
• Leak Check: Inspect all connections for leaks.

BENEFITS OF USING THE FITECH GO FUEL TIGHT FIT REGULATOR (54000):

• Consistent Fuel Pressure: Ensures precise fuel pressure vital for optimal EFI system performance.
• Improved Engine Efficiency: Enhances power output and fuel economy.
• Fine-Tuning Capability: Adjustable fuel pressure allows for customization based on specific engine requirements.
• Long-Term Reliability: Robust construction and compatibility with various fuel types ensure durability.

FEATURES:

• Single Outlet Design: Streamlined fuel delivery for efficient operation.
• Gauge Capability: Accepts a fuel pressure gauge for real-time monitoring.
• Includes AN Fittings: Facilitates easy plumbing and connections.
• Mounting Bracket Included: Ensures a secure installation.
• Return Style Regulator: Designed for effective fuel management.
