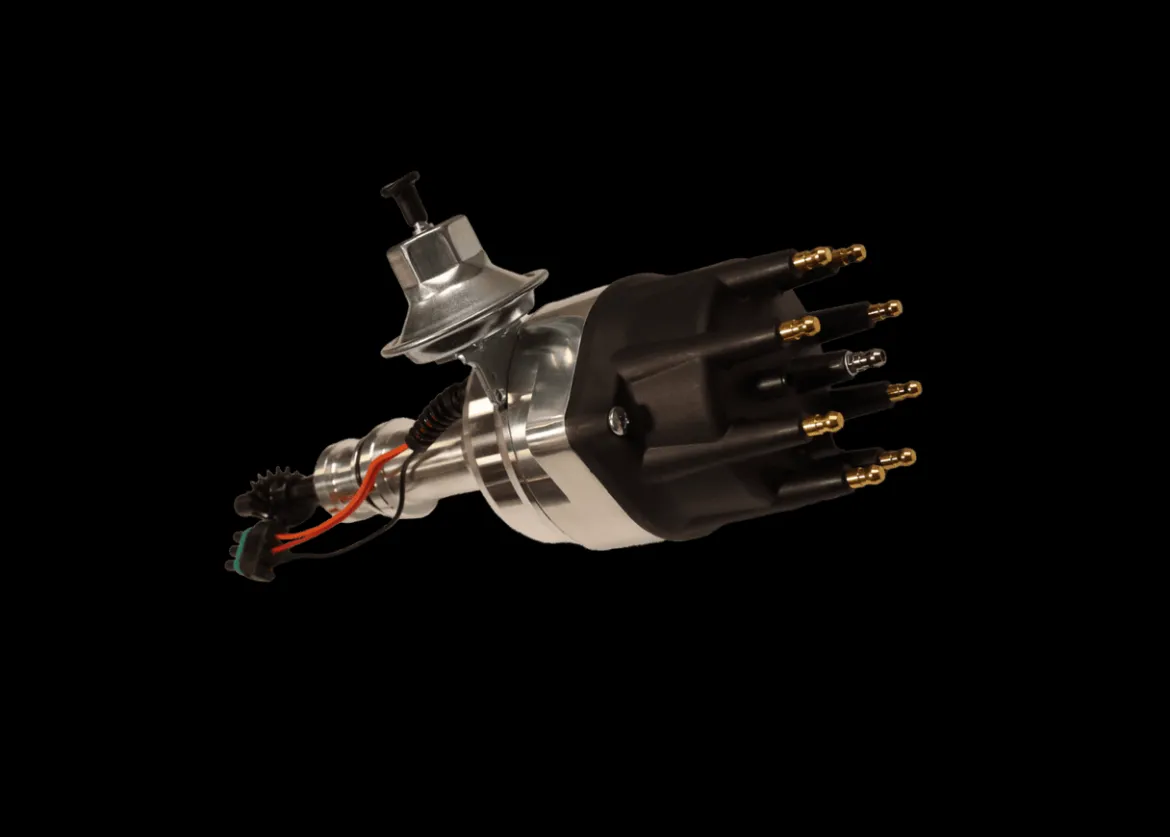

FiTech Ford 351W Ready-To-Run Distributor (99032)

The FiTech Ford 351W Ready-To-Run Distributor (99032) is designed for Ford 351W engines, providing a streamlined ignition solution. This distributor simplifies installation with its built-in module, eliminating the need for external ignition boxes. It offers adjustable mechanical and vacuum advance, ensuring precise timing for various driving conditions.

KEY FEATURES AND BENEFITS:

• Ready-to-run design: For easy installation.
• Built-in ignition module: No external box needed.
• 3-wire hookup: Simplifies wiring.
• CNC-machined aluminum housing: For durability.
• Adjustable mechanical and vacuum advance: For timing control.
• High-output magnetic pickup: Ensures a strong trigger signal.
• Hardened iron drive gear: Steel alloy available separately.
• 3-year limited warranty.

SPECIFICATIONS:

• Engine Compatibility: Ford 351W
• Trigger Style: Magnetic
• Advance Type: Vacuum and Mechanical
• Distributor Cap Style: Male/HEI
• Housing Material: 6061-T6 Aluminum
• Ignition Module: Built-in
• Wiring: 3-wire
• Gear Material: Cast Iron
• Weight: 6.4 lbs
• Dimensions: 6.9 × 18.4 × 7.2 in

HOW TO USE:

• Disconnect the negative terminal of the battery.
• Remove the existing distributor, noting the rotor position.
• Install the FiTech 99032, aligning the rotor with the noted position.
• Connect the 3 wires: power, ground, and tach.
• Adjust the mechanical and vacuum advance as needed.
• Reconnect the battery and test the engine.

BENEFITS OF USING THE FITECH FORD 351W READY-TO-RUN DISTRIBUTOR (99032):

• Simplified installation: Reduces time and effort.
• Improved ignition reliability.
• Precise timing control: Enhances engine performance.
• Eliminates the need for an external ignition box: Cleans up the engine bay.
• Reliable strong spark.

FEATURES:

• Centerless ground shaft with roller bearing and bronze bushing.
• Large paddle wheel reluctor.
• High-performance inductive storage module.
• Screw-down cap and rotor made of glass-fiber reinforced polyester (PBT).
• Brass cap contacts and stainless steel rotor spring.
• Black distributor cap.
