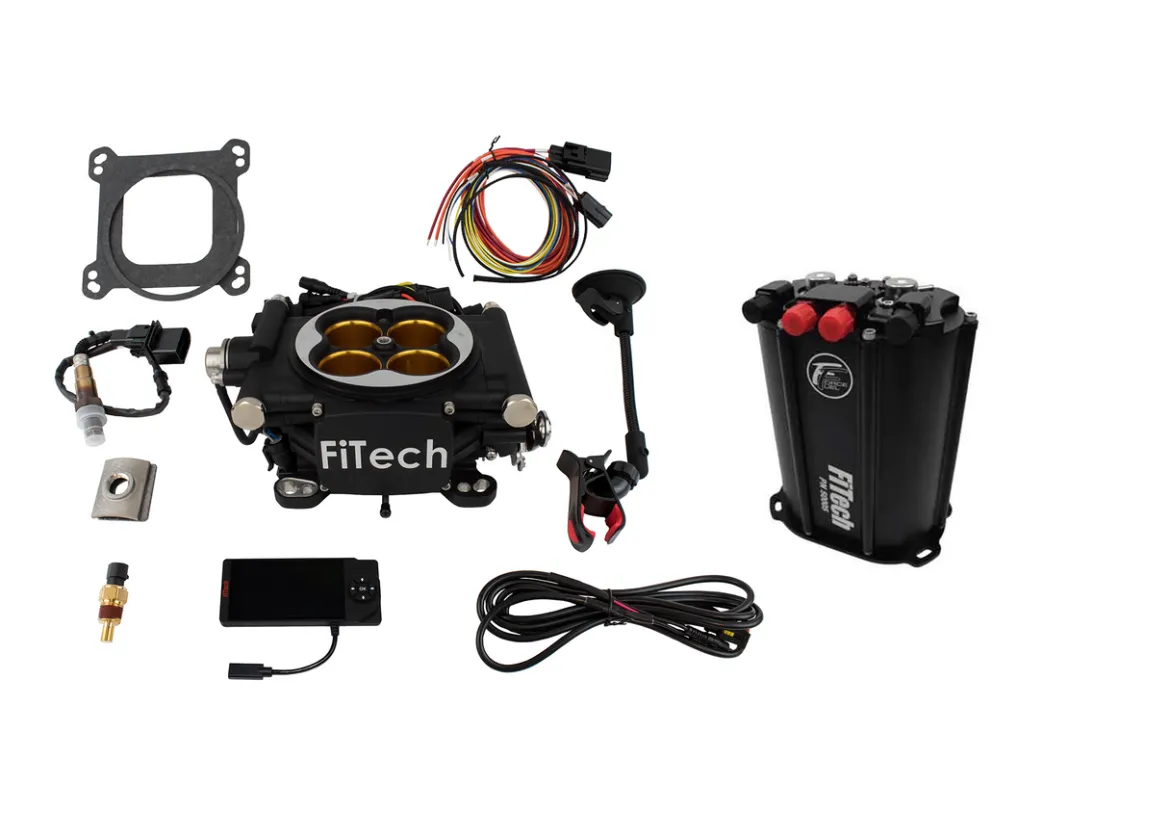

FiTech EFI 8 1200HP Matte Black Finish w/Force Fuel System (35412)

The FiTech EFI 8 1200HP Matte Black Finish w/Force Fuel System (35412) is designed for high-performance engines requiring reliable and efficient fuel delivery. This system replaces traditional carburetors with a modern, self-tuning electronic fuel injection solution, providing improved drivability and performance. The integrated ECU and comprehensive kit simplify installation and operation, making it suitable for street machines and bracket racers.

KEY FEATURES AND BENEFITS:

• High Power Support: Supports up to 1200 horsepower, ideal for high-performance applications.
• Self-Tuning Capabilities: Simplifies setup and optimization for enhanced performance.
• Force Fuel System: Includes dual fuel pumps for consistent fuel delivery under demanding conditions.
• Integrated ECU: Mounted on the throttle body for easy installation and reduced wiring complexity.
• High-Flow Injectors: Features 80 lbs/hr injectors and an 850 CFM throttle body for optimal fuel and air flow.
• Touchscreen Controller: 4.5-inch touchscreen for easy adjustments and monitoring.
• Speed Density Metering: Ensures accurate fuel calculations for enhanced efficiency.
• Power Adder Compatibility: Designed to work with boost and nitrous oxide systems.

SPECIFICATIONS:

• Maximum Horsepower: 1200 HP
• Injection Style: Throttle body (4-barrel square bore, 4150 flange)
• ECU Included: Yes (integrated)
• Fuel Pump Included: Yes (dual external pumps)
• Injector Size: 80 lbs/hr
• Airflow: 850 CFM
• Metering Style: Speed density (MAP-N)
• Timing Control: Compatible
• Power Adder Compatibility: Boost/Nitrous oxide
• Fuel Compatibility: Gasoline, Alcohol, Methanol, Flex Fuel
• Compatibility: Engines utilizing a 4150 flange intake manifold

HOW TO USE:

• Installation: Mount the throttle body to the 4150 flange intake manifold.
• Fuel System Setup: Install the Force Fuel system, including the dual fuel pumps and surge tank.
• Wiring: Connect the provided wiring harness, ensuring proper connections to sensors and power sources.
• Sensor Installation: Install the included oxygen sensor, MAP sensor, IAT sensor, and TPS sensor.
• Initial Setup: Use the 4.5-inch touchscreen controller to input basic engine parameters.
• Self-Tuning: Start the engine and allow the system to self-learn and optimize fuel delivery.
• Fine-Tuning (Optional): Use the handheld controller to make manual adjustments as needed.

BENEFITS OF USING THE FITECH EFI 8 1200HP MATTE BLACK FINISH W/FORCE FUEL SYSTEM (35412):

• Improved Fuel Efficiency: Offers better fuel management compared to traditional carburetors.
• Simplified Installation: The integrated ECU and comprehensive kit make setup straightforward.
• Reliable Fuel Delivery: Ensures consistent performance with the Force Fuel system.
• Easy Tuning: The touchscreen controller allows for quick adjustments and monitoring.
• Enhanced Drivability: Provides better throttle response and overall driving experience.
• Multi-Fuel Compatibility: Capable of using various fuel types for versatile applications.

FEATURES:

• Matte Black Finish: Durable and stylish throttle body design.
• Airflow Rate: 850 CFM for high-performance applications.
• Integrated Fuel Pressure Regulator: For optimal fuel management.
• Wideband Oxygen Sensor Included: For accurate air/fuel ratio monitoring.
• Venturi Diameter: 43 mm for enhanced airflow characteristics.
• External Dual Fuel Pump Design: Ensures reliable fuel delivery under high demand.
• Cast Aluminum Construction: Provides durability and strength.
• 8 Injectors Included: For efficient fuel delivery in high-performance setups.
• 680 LPH Fuel Pump Flow Rating: Supports high fuel demand for performance engines.
