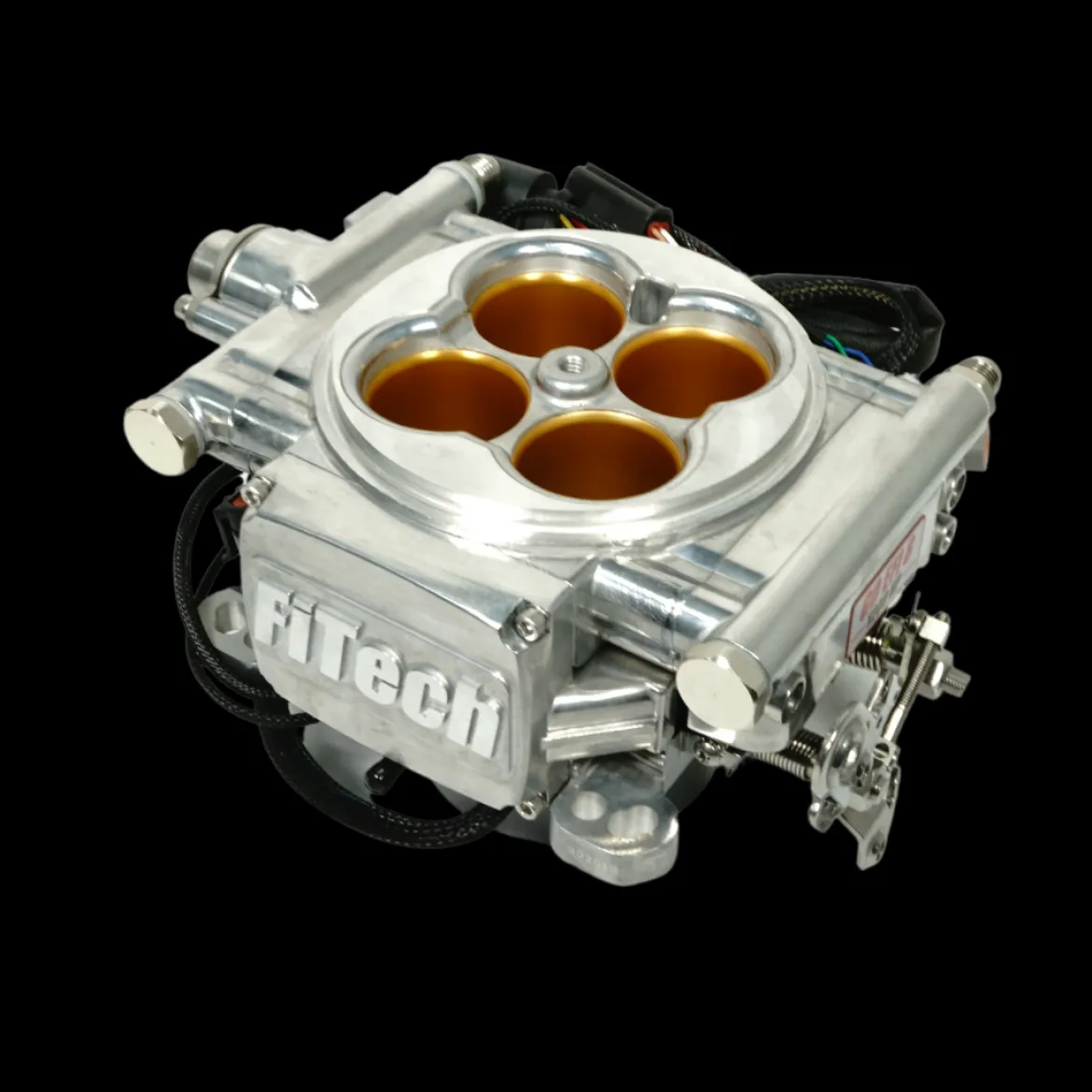

FiTech EFI 8 1200 HP Power Adder Bright Aluminum Finish System (30013)

The FiTech EFI 8 1200 HP Power Adder Bright Aluminum Finish System (30013) offers advanced electronic fuel injection for high-performance engines. Designed as a direct replacement for 4-barrel carburetors, this system supports engines ranging from 250 to 1200 horsepower, making it suitable for a wide range of applications, including those with power adders like turbochargers, superchargers, and nitrous oxide. The system’s self-tuning capabilities and user-adjustable settings provide precise fuel delivery and ignition control, enhancing engine performance and drivability.

KEY FEATURES AND BENEFITS:

• Supports engines from 250 to 1200 HP, accommodating a variety of performance builds.
• Eight high-flow injectors and an annular discharge design with 20 jet streams ensure efficient fuel atomization.
• Self-tuning ECU adjusts to engine conditions for optimal performance.
• Boost and nitrous timing retard strategies allow for precise control in forced induction and nitrous applications.
• Built-in fuel pressure regulator maintains consistent fuel pressure.
• 2.5 BAR internal MAP sensor accurately measures boost levels.
• Integrated ignition timing control eliminates the need for external spark boxes.
• Data logging and pro-tuning software enable detailed performance analysis and adjustments.
• Hand-held touch-screen controller simplifies setup and monitoring.

SPECIFICATIONS:

• Fuel Injection Style: Throttle body
• Maximum Horsepower: 1200 HP
• Timing Control: Yes
• ECM: Included
• Self-Tuning: Yes
• User Tunable: Yes
• Throttle Body Mounting Flange: 4-barrel square bore
• Injectors: Included (8)
• MAP Sensor: Included (2.5 BAR)
• Oxygen Sensor: Included
• Data Logging: 8GB

HOW TO USE:

• Preparation: Remove the existing 4-barrel carburetor and clean the intake manifold surface.
• Installation: Mount the FiTech 30013 throttle body onto the 4-barrel intake manifold using the provided gasket.
• Sensor Connection: Connect the included sensors (oxygen, coolant, MAP) to the throttle body and wiring harness.
• Wiring: Connect the wiring harness to the vehicle’s power, ground, and ignition systems.
• Fuel System: Install or connect a suitable high-pressure fuel pump and fuel lines.
• Hand-Held Controller: Connect the hand-held controller to the system and follow the on-screen prompts for initial setup.
• Initial Setup: Input engine specifications and desired settings using the hand-held controller.
• Self-Tuning: Start the engine and allow the self-tuning ECU to learn and adjust to engine conditions.
• Fine-Tuning: Use the hand-held controller or pro-tuning software to make any necessary adjustments.

BENEFITS OF USING THE FITECH EFI 8 1200 HP POWER ADDER BRIGHT ALUMINUM FINISH SYSTEM (30013):

• Improved fuel efficiency and performance compared to traditional carburetors.
• Precise fuel delivery and ignition control for optimal engine operation.
• Enhanced drivability and throttle response.
• Reduced emissions compared to older carbureted systems.
• Simplified tuning and adjustments with self-tuning capabilities and user-friendly interface.
• More consistent engine performance in varying weather conditions.

FEATURES:

• Annular discharge with 20 jet streams for superior fuel atomization.
• Dual fan control for effective engine cooling management.
• Air conditioning idle speed input for stable idle during AC operation.
• Three fuel inlet connection options for flexible installation.
• Compatibility with CDI boxes (not required) for ignition control.
• Ability to work with returnless fuel command centers.
• GM-type sensors and Bosch 4.2 wideband oxygen sensor for reliable readings.
• Nitrous and boost timing retard strategies for precise control.
• Safety features for nitrous tuning control.
• Designed for applications with at least 6 inches of vacuum at idle.
