FiTech EFI 8 1200 HP Bright Aluminum w/ Dual Pump Force Fuel (35413)

The FiTech EFI 8 1200 HP Bright Aluminum w/ Dual Pump Force Fuel (35413) is a high-performance electronic fuel injection solution designed for engines producing up to 1200 horsepower. This complete kit includes everything needed for a comprehensive EFI conversion, featuring a dual-pump “Force Fuel” delivery system for consistent fuel supply. With its 850 CFM throttle body and 80 lb/hr injectors, the FiTech 35413 provides precise fuel metering and efficient airflow. This system is compatible with boosted and nitrous applications and supports various fuel types, including gasoline, alcohol, methanol, and flex fuel.

KEY FEATURES AND BENEFITS:

• Supports up to 1200 horsepower, ideal for high-performance engines.
• Dual-pump “Force Fuel” system ensures reliable fuel delivery.
• 850 CFM throttle body and 80 lb/hr injectors for precise fuel and air control.

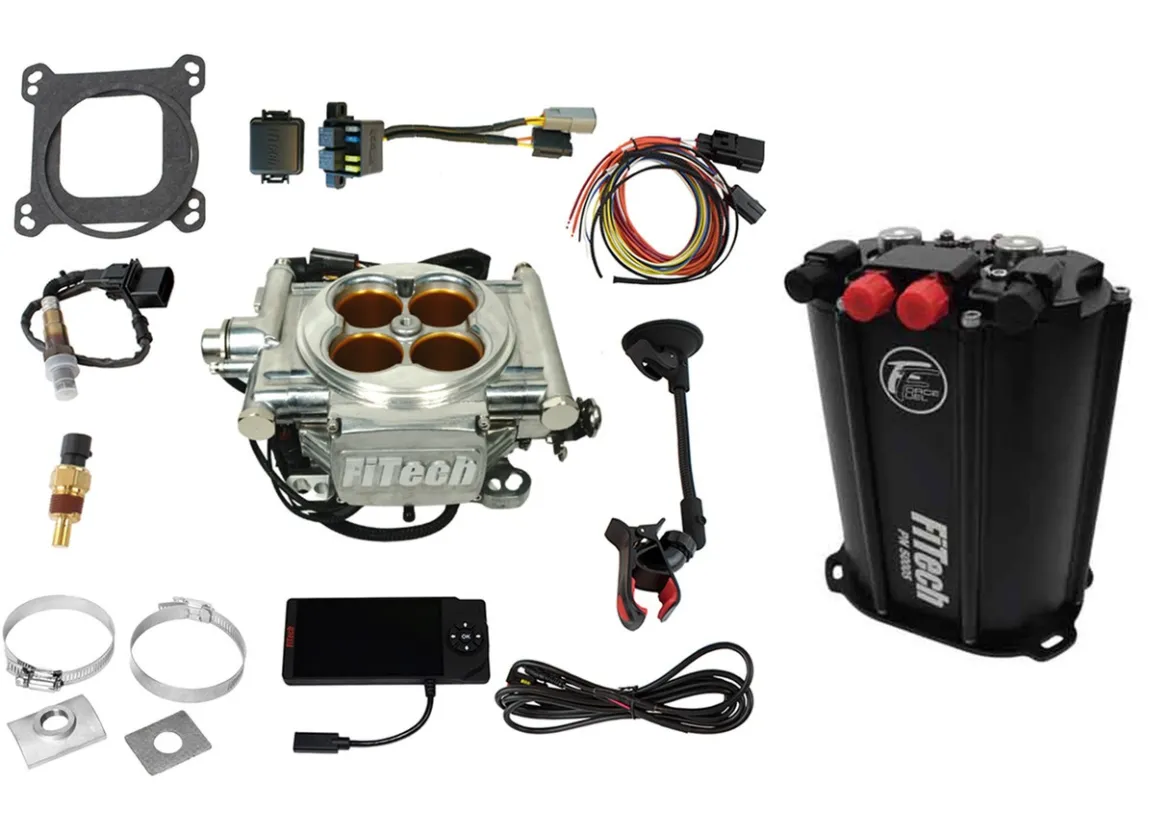

• Complete kit includes ECU, fuel pump, wiring harness, and sensors.
• Compatible with boost and nitrous oxide power adders.
• Supports multiple fuel types: gasoline, alcohol, methanol, and flex fuel.
• Speed density (MAP-N) metering for accurate fuel calculations.
• Universal fit design for broad vehicle compatibility.

SPECIFICATIONS:

• Maximum Horsepower: 1200 HP
• Injection Style: Throttle body
• Timing Control: Compatible
• Power Adder: Compatible (Boost/Nitrous oxide)
• ECU: Included
• Fuel Pump: Included (External)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs/hr
• Fuel Types: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
• Installation: Install the new FiTech throttle body onto the intake manifold using the 4-barrel square bore flange.
• Fuel System: Mount the dual-pump “Force Fuel” system and connect the fuel lines, ensuring proper fuel pressure regulation.
• Wiring: Connect the wiring harness to the ECU and all necessary sensors (MAP, IAT, TPS, oxygen sensor).
• ECU Setup: Mount the ECU and connect the calibration module.
• Sensor Installation: Install the provided oxygen sensor into the exhaust system.
• Initial Calibration: Use the calibration module to input basic engine parameters.
• Testing: Reconnect the battery and start the engine. Monitor fuel pressure and adjust calibration as needed.
• Fine Tuning: Drive the vehicle and fine-tune the ECU settings for optimal performance.

BENEFITS OF USING THE FITECH EFI 8 1200 HP BRIGHT ALUMINUM W/ DUAL PUMP FORCE FUEL (35413):

• Improved engine performance and horsepower output.
• Enhanced fuel efficiency and precise fuel control.
• Reliable fuel delivery with the dual-pump system.
• Easy installation with a complete kit.
• Flexibility to use various fuel types.
• Increased engine tunability.
• Improved cold start performance.

FEATURES:

• Polished cast aluminum throttle body construction.
• 80 lb/hr high flow injectors.
• External dual fuel pump system.
• Included MAP, IAT, and TPS sensors.
• Oxygen sensor included.
• Calibration module for easy tuning.
• Comprehensive wiring harness.
• Fuel pressure regulator included.
• 43mm venturi diameter.
• 850 CFM airflow.
