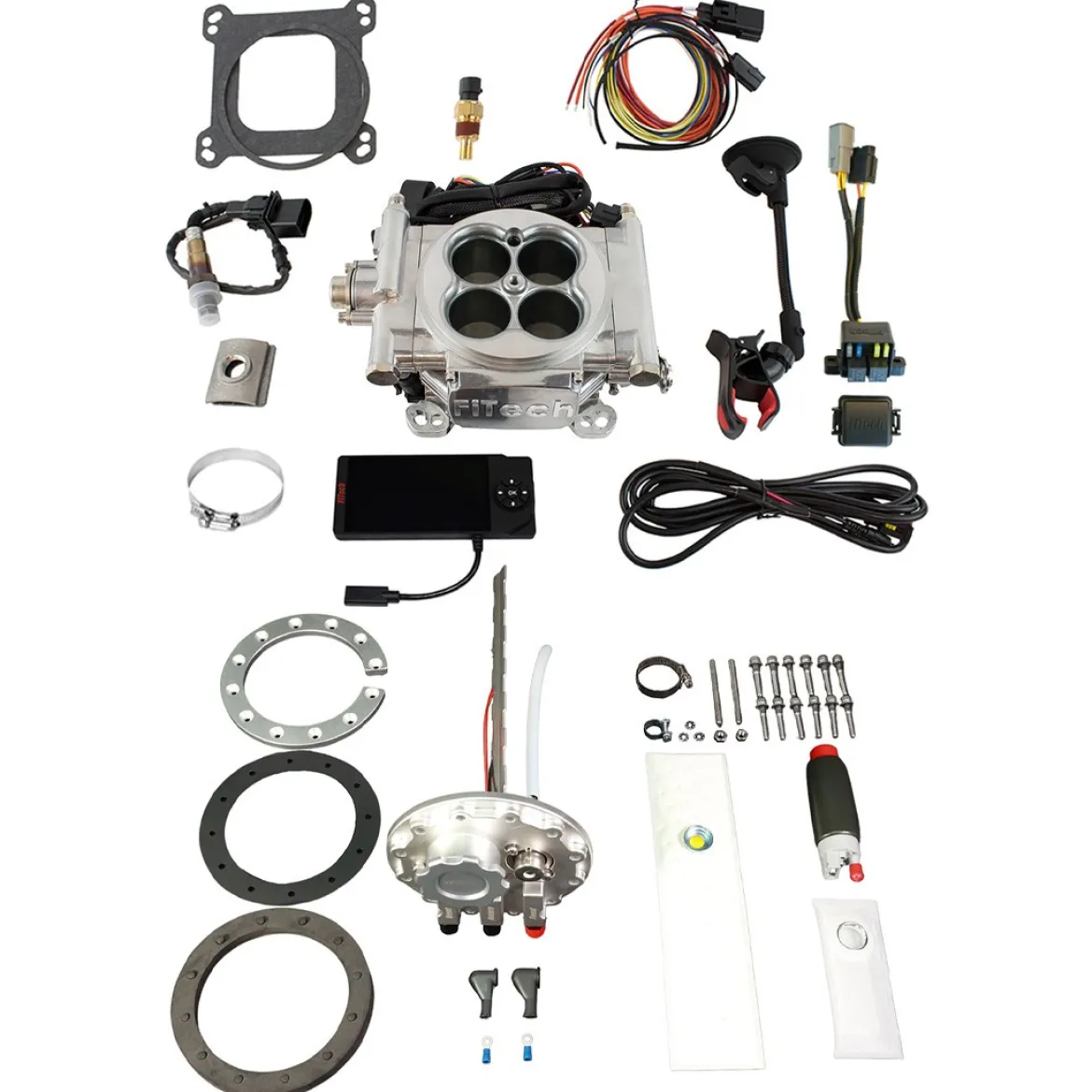

FiTech EFI 4 600 HP Bright Aluminum w/ In-Tank Module (36301)

The FiTech EFI 4 600 HP Bright Aluminum w/ In-Tank Module (36301) provides a comprehensive electronic fuel injection upgrade for your engine. Rated for up to 600 horsepower, this throttle body injection system offers improved fuel efficiency and drivability compared to traditional carburetors. The included in-tank fuel pump and self-tuning ECU simplify installation and setup. This kit is designed for a wide range of engine applications, providing a modern fuel delivery solution.

KEY FEATURES AND BENEFITS:

• 600 HP Rating: Suitable for a broad range of street and mild performance engines.
• 850 CFM Throttle Body: Delivers ample airflow for optimal engine performance.
• Self-Tuning ECU: Automatically adjusts fuel delivery for efficient operation.
• In-Tank Fuel Pump Included: Provides consistent fuel pressure and simplifies installation.
• Complete Kit: Includes all necessary sensors, wiring harness, and components for a full EFI conversion.
• Timing Control Compatible: Allows for precise ignition timing adjustments.
• Multiple Fuel Compatibility: Designed to run on Alcohol, Gasoline, Methanol, and Flex fuel.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control Compatible: Yes
• Power Adder Compatible: No
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs/hr

HOW TO USE:

1. Remove Existing Carburetor: Disconnect fuel lines, linkage, and remove the carburetor.
2. Install Throttle Body: Mount the FiTech throttle body onto the intake manifold.
3. Install Fuel Pump: Place the in-tank fuel pump within the fuel tank.
4. Connect Wiring Harness: Connect the wiring harness to the ECU and engine sensors (MAP, IAT, TPS, O2).
5. Install Sensors: Install the included sensors in their designated locations.
6. Connect Fuel Lines: Connect fuel lines from the fuel pump to the throttle body, including the fuel pressure regulator.
7. Connect ECU Power and Ground: Connect the ECU to a 12V power source and ground.
8. Initial Setup: Use the calibration module to enter basic engine parameters.
9. Start Engine: Start the engine and allow the self-tuning ECU to calibrate.
10. Fine-Tune (if needed): Make adjustments as necessary using the calibration module.

BENEFITS OF USING THE FITECH EFI 4 600 HP BRIGHT ALUMINUM W/ IN-TANK MODULE (36301):

• Improved Fuel Efficiency: Offers better fuel efficiency compared to carburetors.
• Enhanced Performance: Delivers improved engine performance and throttle response.
• Simplified Start Procedures: Simplified cold start and hot restart procedures.
• Reduced Emissions: Helps reduce emissions for a cleaner operation.
• Consistent Performance: Ensures consistent performance across varying altitudes and temperatures.
• Modernized System: Provides a modernized fuel delivery system.
• Easier Tuning: Simplifies engine tuning with the self-tuning ECU.

FEATURES:

• Integrated Regulator: Integrated fuel pressure regulator for consistent fuel delivery.
• Complete Sensor Kit: Includes a complete sensor kit for accurate engine data.
• Universal Fit: Universal fit for a wide range of engine types.
• Fuel Compatibility: Designed to work with multiple fuel types.
