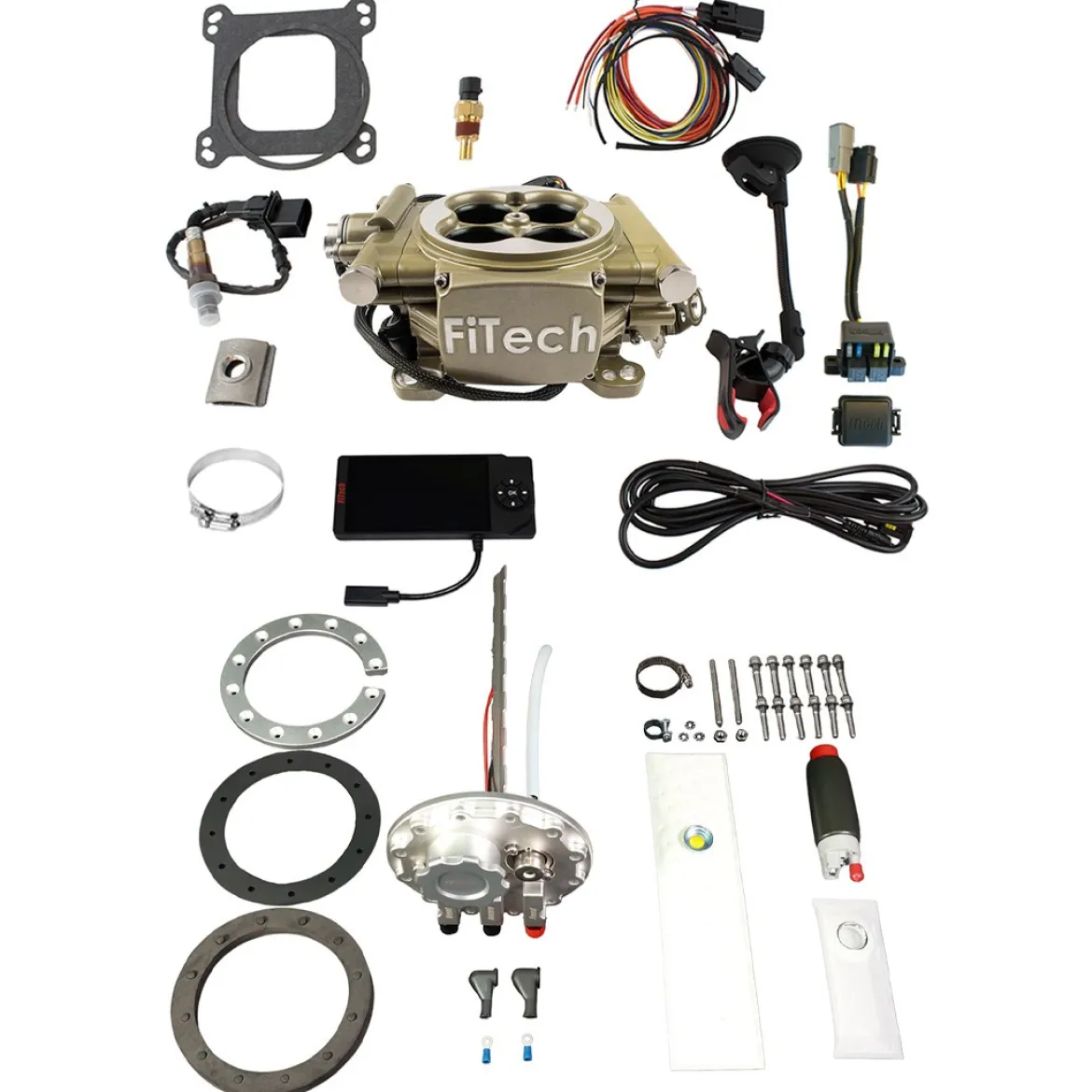

FiTech Easy Street 600 HP Classic Gold w/ In-Tank Module (36305)

The FiTech Easy Street 600 HP Classic Gold w/ In-Tank Module (36305) is engineered to modernize classic and performance engines by replacing traditional 4-barrel carburetors with a self-tuning electronic fuel injection system. This kit provides improved fuel efficiency, consistent performance, and reliable starts. Designed for engines up to 600 horsepower, the system features an 850 CFM throttle body and high-flow 80 lbs/hr injectors. The included in-tank fuel pump and comprehensive sensor package ensure a complete and effective upgrade.

KEY FEATURES AND BENEFITS:

• Self-Tuning ECU: Automatically adjusts fuel delivery for optimal performance.
• 600 HP Rating: Supports high-performance engine applications.
• 850 CFM Throttle Body: Provides ample airflow for performance engines.
• In-Tank Fuel Pump Included: Simplifies installation and ensures consistent fuel delivery.
• 80 lbs/hr Injectors: High-flow injectors for adequate fuel supply.
• Complete Sensor Package: Includes O2, MAP, IAT, and TPS sensors for accurate readings.
• 4-Barrel Square Bore Compatibility: Designed to fit standard 4-barrel intake manifolds.
• Fuel Type Versatility: Capable of running gasoline, methanol, ethanol, and blended fuels.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Metering Style: Speed density (Map-N)
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs/hr
• Throttle Body Mounting Flange: 4-barrel square bore
• Fuel Pump Style: In-tank
• ECU Included: Yes
• Fuel Type: Gasoline, Methanol, Ethanol, Flex fuel

HOW TO USE:

1. Preparation: Remove the existing 4-barrel carburetor and clean the intake manifold surface.
2. Installation: Mount the FiTech 36305 throttle body onto the intake manifold.
3. Fuel System: Install the in-tank fuel pump and connect the fuel lines, ensuring proper fuel pressure regulation.
4. Wiring: Connect the wiring harness to the ECU and the engine sensors (O2, MAP, IAT, TPS).
5. Sensor Connection: Connect all sensors to the main harness.
6. ECU Setup: Use the hand-held controller to enter basic engine parameters and initiate the self-tuning process.
7. Initial Start: Start the engine and allow the ECU to learn and adjust fuel delivery.
8. Fine Tuning: Use the hand-held controller to make minor adjustments as needed.

BENEFITS OF USING THE FITECH EASY STREET 600 HP CLASSIC GOLD W/ IN-TANK MODULE (36305):

• Improved Fuel Efficiency: Offers better efficiency compared to traditional carburetors.
• Consistent Performance: Ensures consistent engine performance across varying conditions.
• Reliable Starts: Provides reliable cold starts and smooth idle.
• Reduced Emissions: Helps reduce emissions and improves engine responsiveness.
• Modernized Operation: Transforms engine operation with electronic fuel injection.

FEATURES:

• Construction: Gold finish cast aluminum throttle body.
• Integrated Regulator: Built-in fuel pressure regulator for consistent pressure.
• Handheld Controller: For setup and monitoring of system parameters.
• Wiring Harness: Comprehensive wiring harness for simplified installation.
• Calibration Module: Built-in module for easy setup.
• Fuel Compatibility: Designed for a wide variety of fuels.
• Airflow: 850 CFM airflow rating for enhanced performance.
