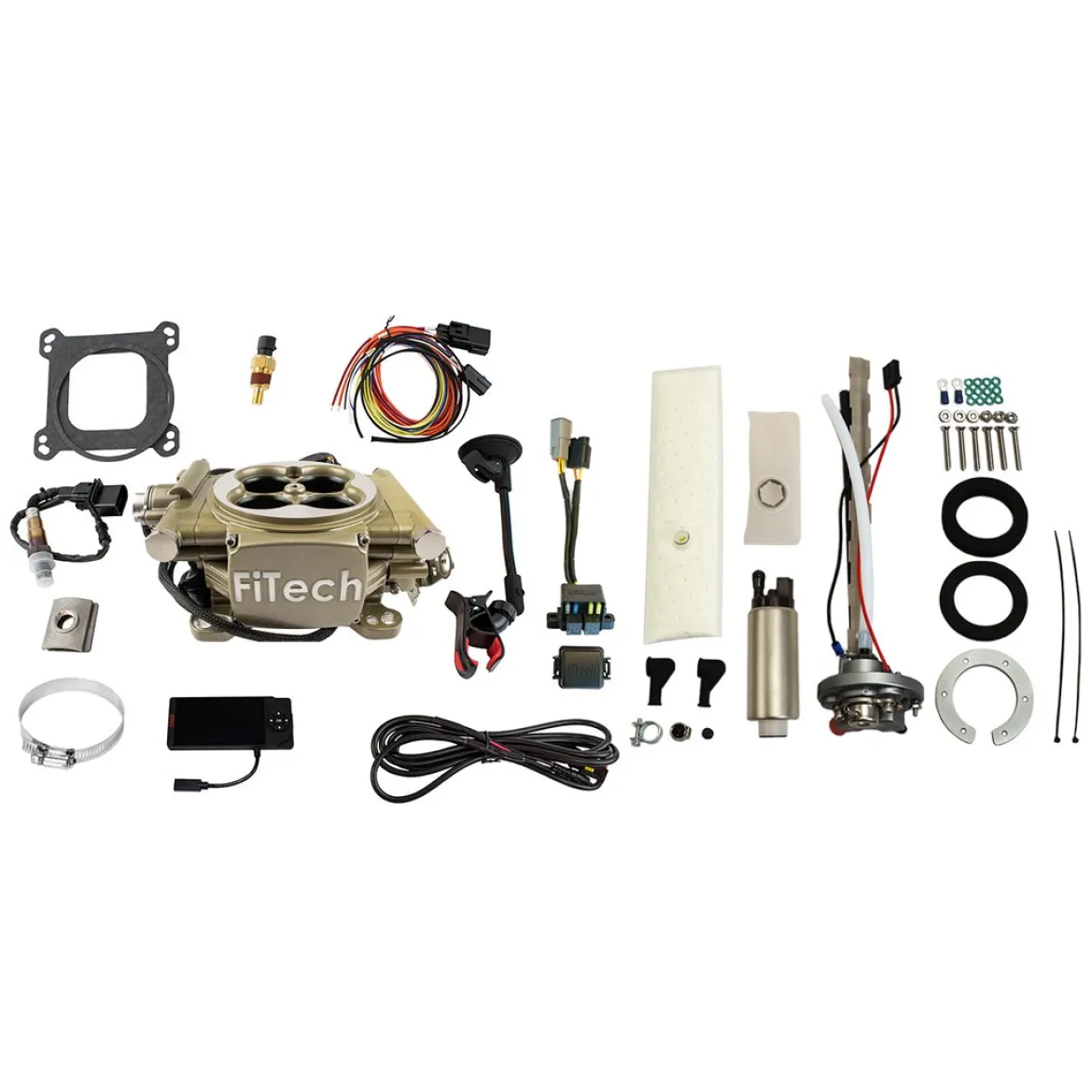

FiTech Easy Street 600 HP Classic Gold EFI w/ 340 LPH Pump (36605)

The FiTech Easy Street 600 HP Classic Gold EFI w/ 340 LPH Pump (36605) provides a complete fuel injection solution for engines up to 600 horsepower. This kit replaces traditional 4-barrel carburetors with a self-tuning electronic fuel injection system, simplifying engine management and improving performance. It includes the “Go Fuel” in-tank regulated fuel pump, ensuring a consistent fuel supply. This all-in-one package offers an easy transition to EFI, enhancing engine efficiency and reliability.

KEY FEATURES AND BENEFITS:

• Comprehensive Solution: Ideal for those looking to upgrade to EFI.
• Self-Tuning ECU: Automatically adjusts fuel delivery, optimizing performance without constant manual adjustments.
• In-Tank Fuel Pump: Eliminates the need for external fuel system components, simplifying installation.
• User-Friendly Handheld Controller: Allows for easy setup and monitoring, providing real-time engine data.
• Improved Efficiency: Enhances horsepower and ensures reliable engine starts.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Diameter: 43 mm
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs/hr
• Fuel Pump Style: In-tank, 340 LPH
• Fuel Pressure Regulator: Integrated
• Fuel Type Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Remove the existing carburetor and related components. Ensure the intake manifold is clean.
• Installation: Mount the FiTech throttle body onto the intake manifold. Connect the fuel lines to the throttle body and the in-tank fuel pump. Install the in-tank fuel pump into the fuel tank.
• Wiring: Connect the wiring harness to the vehicle’s electrical system, including the ignition, battery, and sensors.
• Sensor Installation: Install the oxygen sensor in the exhaust system. Connect the MAP and IAT sensors.
• Initial Setup: Use the handheld controller to input basic engine parameters, such as engine size and cylinder count.
• Startup and Tuning: Start the engine. The ECU will begin self-tuning. Monitor engine parameters using the handheld controller and make any necessary adjustments.
• Final Adjustments: After a brief driving period, the ECU will have learned the engine’s characteristics. Review and fine-tune settings as needed.

BENEFITS OF USING THE FITEC EASY STREET 600 HP CLASSIC GOLD EFI W/ 340 LPH PUMP (36605):

• Improved Performance: Enhances engine performance and responsiveness.
• Fuel Efficiency: Offers improved fuel efficiency over carburetors.
• Simplified Management: Streamlines engine management processes.
• Reliable Starts: Ensures dependable engine starts in various conditions.
• Reduced Maintenance: Lowers maintenance needs compared to traditional carburetors.
• Easy Monitoring: Facilitates monitoring and adjustments through the handheld controller.

FEATURES:

• Integrated 4-Barrel Throttle Body: Comes with 80 lbs/hr injectors.
• Built-In Fuel Pressure Regulation: Ensures consistent pressure.
• Handheld Touchscreen Controller: Equipped with data logging capabilities.
• Internal MAP Sensor: For accurate readings.
• Adjustable Fan Control Switches: Provides additional control options.
• Compatibility: Works with various fuel types.
• OBD II Fault Code Readouts: Simplifies diagnostics.
• “Go Fuel” 340 LPH In-Tank Fuel Pump: Reliable fuel delivery.
• AN-6 Fuel Inlet Fittings: For secure connections.
