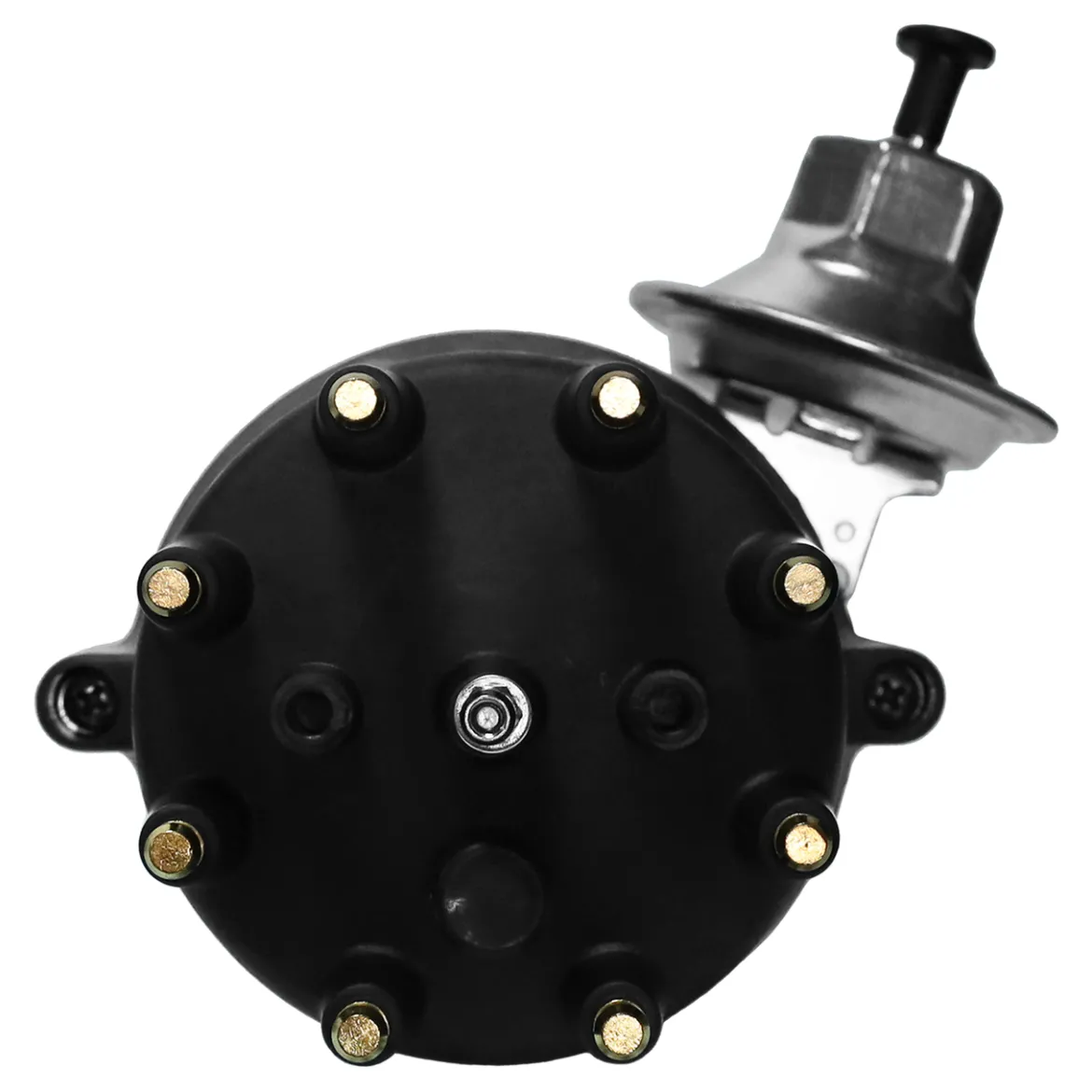

FiTech Chrysler 273-360 LA Mech & Vac Tab Lock Distributor (99010)

The FiTech Chrysler 273-360 LA Mech & Vac Tab Lock Distributor (99010) is designed to enhance the ignition system of Chrysler 273-360 LA engines. This distributor utilizes a magnetic trigger and offers both vacuum and mechanical advance systems, allowing for precise control over spark timing. This results in improved engine performance and efficiency. The unit is constructed with quality materials for longevity and reliable operation.

KEY FEATURES AND BENEFITS:

• Accurate Spark Timing: Provides precise ignition for Chrysler 273-360 LA engines.
• Dynamic Timing Adjustments: Combination of vacuum and mechanical advance optimizes combustion for power and efficiency.
• Reliable Signal: Magnetic trigger system ensures consistent and stable ignition.
• Redundant Ignition System: Features 2-wire magnetic pickups for added reliability.
• Durable Construction: Aluminum housing and high-quality internal components ensure long-term performance.

SPECIFICATIONS:

• Manufacturer Part Number: 99010
• Engine Compatibility: Chrysler 273-360 LA engines
• Distributor Cap Included: Yes
• Distributor Cap Style: Male/HEI
• Distributor Cap Type: Small cap
• Ignition Coil Included: No
• Ignition Module Included: Yes
• Computer-Controlled Compatible: No
• Trigger Style: Magnetic
• Advance Type: Vacuum and Mechanical
• Ignition Box Required: Yes
• Mechanical Tach Drive: No
• Slip Collar: No
• Distributor Gear Material: Melonized
• Distributor Gear Rotation: Standard
• Distributor Cap Color: Black
• Housing Material: Aluminum
• Housing Finish: Natural
• Marine Use: No
• Remanufactured: No
• Pickup Wire Count: 2

HOW TO USE:

1. Preparation: Disconnect the negative battery terminal. Remove the existing distributor cap and note the rotor’s position.
2. Removal: Disconnect the wiring from the existing distributor. Remove the hold-down clamp and carefully extract the distributor.
3. Installation: Align the rotor of the FiTech 99010 distributor with the previously noted position. Insert the new distributor into the engine, ensuring the gear engages properly.
4. Wiring: Connect the FiTech distributor’s wiring according to the manufacturer’s instructions, ensuring correct polarity.
5. Timing Adjustment: Connect a timing light and start the engine. Adjust the distributor’s position to achieve the desired initial timing.
6. Vacuum and Mechanical Advance: Connect the vacuum advance line. Verify the mechanical advance operation by increasing engine RPM.
7. Final Check: Secure the hold-down clamp and recheck the timing. Reconnect the battery terminal.

BENEFITS OF USING THE FITECH CHRYSLER 273-360 LA MECH & VAC TAB LOCK DISTRIBUTOR (99010):

• Improved engine performance through precise spark timing.
• Enhanced fuel efficiency due to optimized combustion.
• Reliable ignition system with magnetic trigger.
• Adjustable timing for varied driving conditions.
• Redundant ignition system via the two magnetic pickups.
• Durable construction for long-lasting use.

FEATURES:

• CNC-machined 6061 T-6 aluminum housing.
• Centerless ground shaft with enhanced bearing support.
• Hardened drive gear for extended service life.
• High-output magnetic pickups for stable trigger signals.
• 30% glass-filled polyester cap and rotor for increased strength.
• Brass cap contacts and stainless steel rotor spring for improved conductivity.
• Two-wire magnetic pickups.
• Adjustable vacuum and mechanical advance curves.
