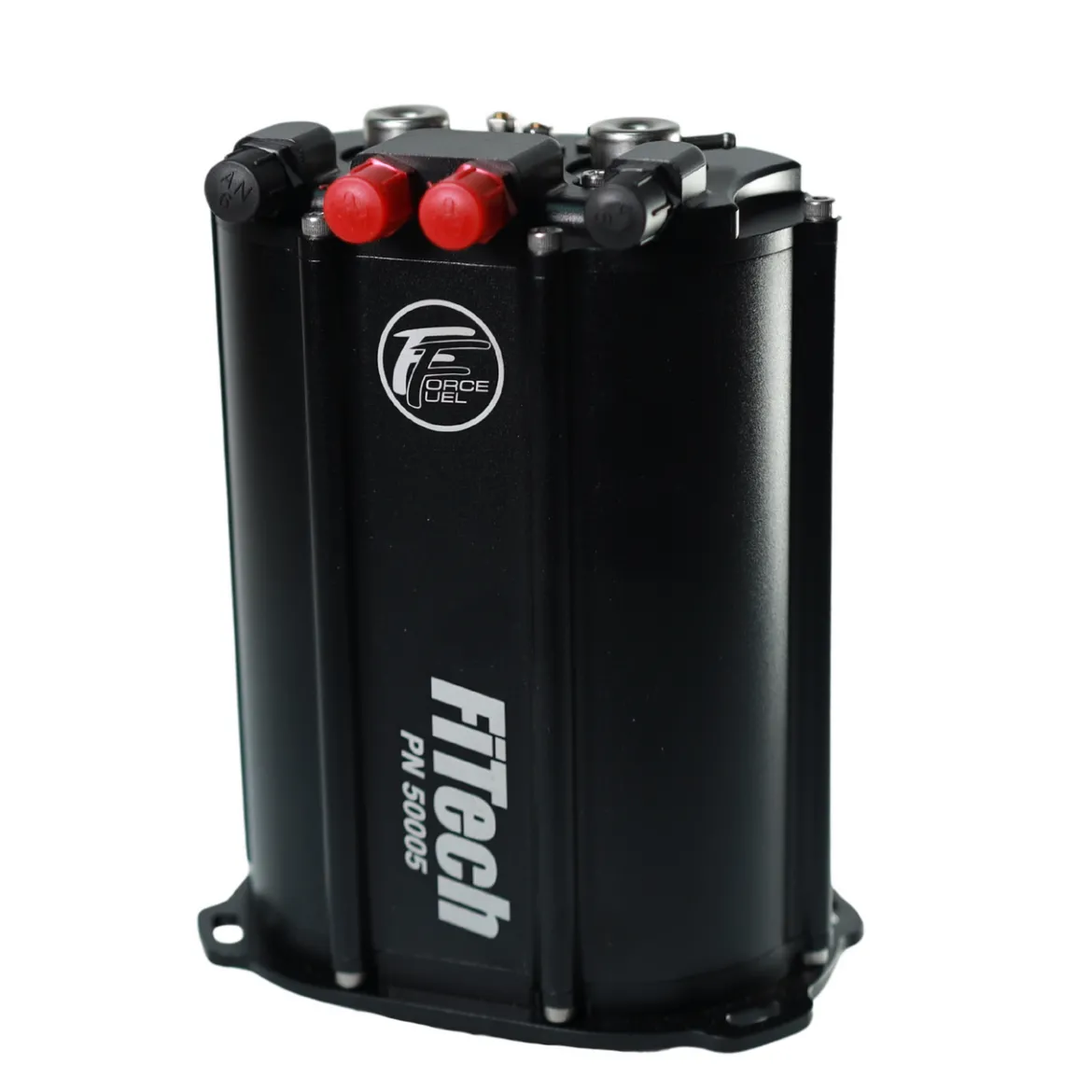

FiTech 1600HP Dual Pump Force Fuel Surge Tank (50005)

The FiTech 1600HP Dual Pump Force Fuel Surge Tank (50005) provides a reliable high-pressure fuel supply for high-horsepower electronic fuel injection (EFI) engines. Designed to work with existing mechanical or electric fuel pumps, this system ensures consistent fuel delivery, preventing fuel starvation in demanding applications.

KEY FEATURES AND BENEFITS:

• High Horsepower Support: This system supports engines up to 1,600 horsepower on gasoline, utilizing dual 340 LPH internal fuel pumps.
• Consistent Fuel Pressure: Integrated fuel pressure regulators maintain a steady 58 PSI.
• Reservoir Capacity: The 0.5-gallon reservoir ensures a constant fuel supply.
• Fuel Compatibility: The system is compatible with E-85, alcohol, and methanol fuels.
• Flexible Installation: The robust, versatile mounting bracket allows for flexible installation options.

SPECIFICATIONS:

• Horsepower Support: Up to 1,600 HP (gasoline)
• Fuel Pumps: Dual 340 LPH
• Fuel Pressure: 58 PSI (regulated)
• Capacity: 0.5 gallon
• Inlet/Outlet: -6 AN, female O-ring
• Filtration: 10-micron
• Fuel Compatibility: Gasoline, E-85, alcohol, methanol

HOW TO USE:

• Mount the Surge Tank: Use the provided bracket to securely place the FiTech 50005.
• Connect Inlet Ports: Attach the inlet ports to your existing fuel pump’s output using appropriate -6 AN fittings.
• Connect Outlet Ports: Connect the outlet ports to your EFI system’s fuel rail using -6 AN fittings.
• Wire the Fuel Pumps: Use the heavy-duty terminals, following the manufacturer’s wiring diagram.
• Check for Leaks: Inspect all connections for leaks and ensure proper grounding.
• Start the Vehicle: Monitor the fuel pressure gauge to verify consistent 58 PSI.

BENEFITS OF USING THE FITECH 1600HP DUAL PUMP FORCE FUEL SURGE TANK (50005):

• Ensures consistent high-pressure fuel delivery, eliminating fuel starvation.
• Simplifies EFI upgrades by working with existing fuel systems.
• Supports high-horsepower engines up to 1,600 HP.
• Provides compatibility with various fuel types, including E-85 and methanol.
• Offers flexible mounting options for easy installation.

FEATURES:

• Dual Internal Pumps: Two 340 LPH pumps for enhanced performance.
• Pressure Regulation: Internal fuel pressure regulation at 58 PSI.
• Surge Protection: Half-gallon fuel reservoir for surge protection.
• Serviceable Filter: 10-micron fuel filter for effective filtration.
• Versatile Mounting Bracket: Designed for side or bottom installation.
• -6 AN Connections: Inlet and outlet connections for secure fitting.
• Fuel Pressure Gauge: Easy-to-read gauge for monitoring fuel pressure.
• Heavy-Duty Wiring Terminals: Reliable electrical connections for durability.
