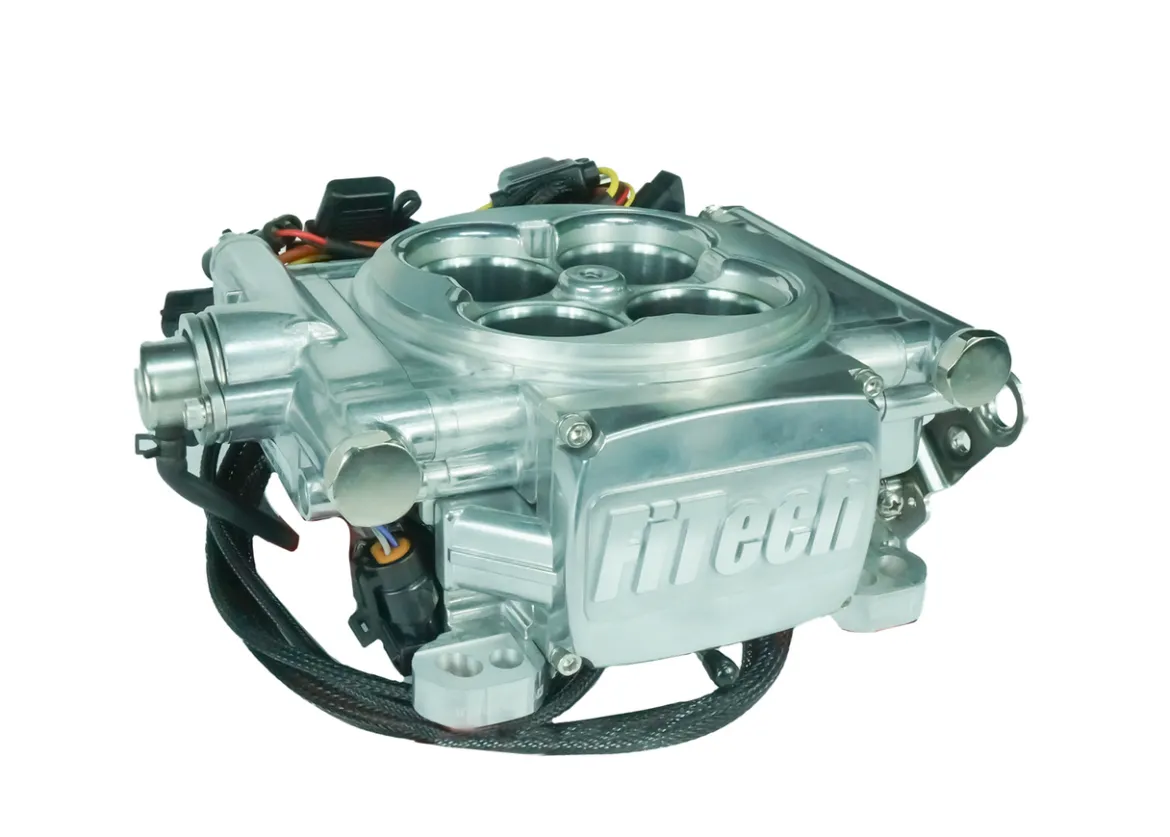

FiTec Go EFI 4 600 HP Power Adder Bright Aluminum System (30006)

The FiTec Go EFI 4 600 HP Power Adder Bright Aluminum System (30006) is a self-tuning fuel injection system designed for high-performance engines. This system is ideal for those running forced induction (turbochargers, superchargers) or nitrous oxide. It replaces traditional 4-barrel carburetors, providing improved fuel delivery and control. Capable of handling up to 600 horsepower and 25 psi of boost, this kit offers advanced tuning features through a handheld controller and optional laptop software.

KEY FEATURES AND BENEFITS:

• Self-Tuning Capabilities: Simplifies the transition to electronic fuel injection.
• Power Adder Support: Compatible with turbochargers, superchargers, and nitrous oxide with the ability to handle up to 25 psi of boost.
• Handheld Controller: For initial setup and adjustments, with advanced tuning options for precise control.
• Accurate Fuel Delivery: Utilizes 80 lb/hr injectors and a 2.5 BAR internal MAP sensor.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes (mounted on throttle body)
• Fuel Pump Included: No
• Metering Style: Speed density (Map-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Diameter: 43 mm
• Airflow Rate: 850 CFM
• Injector Size: 80 lb/hr
• MAP Sensor: 2.5 BAR internal
• Compatibility: Chevrolet, Ford, Chrysler, and other engines with 4-barrel intake manifolds

HOW TO USE:

• Installation: Mount the throttle body on a 4-barrel intake manifold. Install the oxygen sensor in the exhaust system.
• Wiring: Connect the wiring harness to the vehicle’s electrical system, following the provided instructions.
• Sensor Installation: Install the CTS (Coolant Temperature Sensor) and other included sensors.
• Initial Setup: Use the handheld controller to input engine parameters and perform the initial setup.
• Fuel System: Install a compatible fuel pump and connect it to the system.
• Startup: Start the engine and allow the self-tuning feature to adjust fuel delivery.
• Fine-Tuning (Optional): Use the handheld controller or laptop software to make fine-tuning adjustments as needed.

BENEFITS OF USING THE FITEK GO EFI 4 600 HP POWER ADDER BRIGHT ALUMINUM SYSTEM (30006):

• Improved Fuel Efficiency: Enhances performance compared to traditional carburetors.
• Precise Control: Allows for accurate fuel delivery and ignition timing, especially in power-added applications.
• Simplified Installation: Easy tuning with self-tuning capabilities.
• Enhanced Reliability: Increases engine reliability and drivability.
• Fine Tuning Options: Ability to fine-tune using laptop software.

FEATURES:

• Annular Swirl Discharge: Provides optimal fuel distribution.
• Boost and Nitrous Timing Retard: Features designed for performance enhancement.
• Two Adjustable Fan Control Switches: For managing cooling requirements.
• Air Conditioning Idle Speed Input: Kick-up feature for improved performance under load.
• Built-In Pressure Regulator: Maintains consistent fuel pressure.
• Voltage-Controlled Fuel Pump Control: Ensures efficient pump operation.
• Compatible Sensors: Uses GM-type sensors and Bosch 4.2 wideband oxygen sensors.
• Multiple Fuel Inlet Connections: Offers flexibility in installation.
• Bright Aluminum Finish: Durable and visually appealing.
• Handheld Touch Screen Controller: For easy operation and adjustments.
