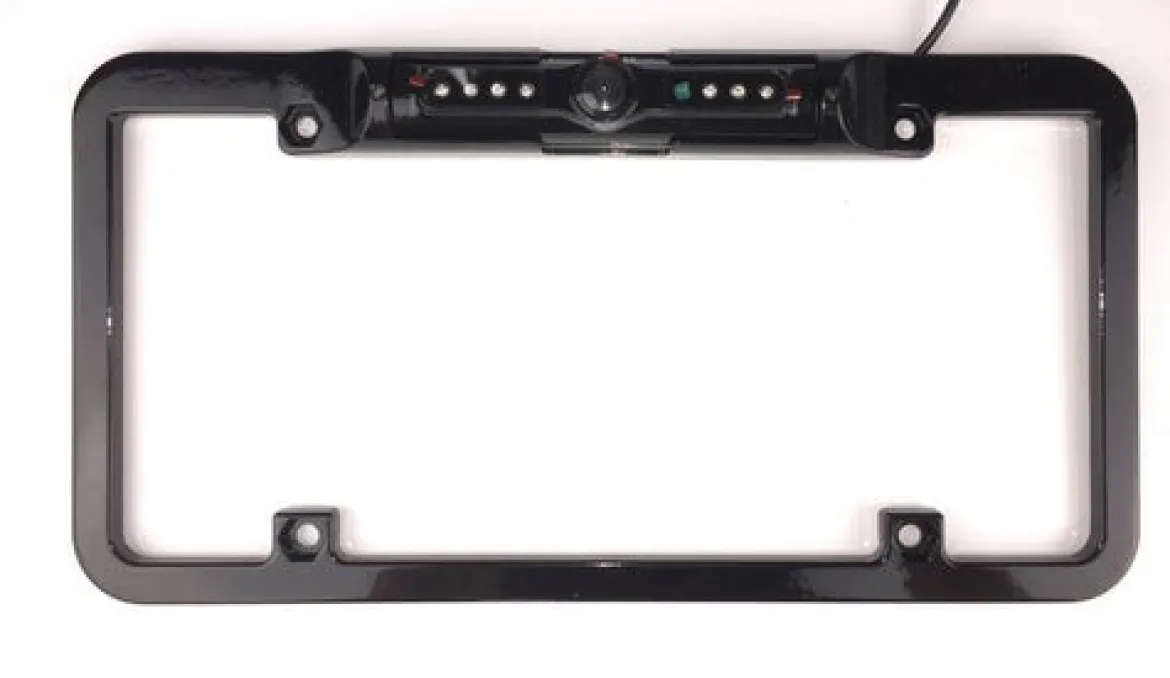

Boyo/Vision Tech Plate Backup Camera w/ Night Vision (BOYVTL300IRTJ)

The Boyo/Vision Tech Plate Backup Camera w/ Night Vision (BOYVTL300IRTJ) is an advanced full-frame license plate camera engineered to enhance reversing safety and precision for any vehicle. Built with a robust zinc metal frame, this camera integrates seamlessly into your license plate mounting area while remaining legal in all 50 U.S. states. It utilizes a high-sensitivity CMOS sensor to deliver video feed with accurate color reproduction.

KEY FEATURES AND BENEFITS:

• Active Park Assist Lines: Dynamic guidelines curve in real-time with steering input, providing precise trajectory for safe parking.
• Integrated Night Vision: Built-in Infrared (IR) sensors ensure visibility in complete darkness.
• Robust All-Weather Construction: Zinc metal frame with IP68 waterproof rating ensures full protection from dust, dirt, and water immersion.
• Wide View CMOS Sensor: High-sensitivity CMOS sensor captures a 140° diagonal view to minimize blind spots.
• Versatile Mounting and Display: Switchable reverse or normal imaging supports both rear and front mounting options.
• 50-State Legal Full Frame: Non-obstructive design fully compliant with license plate visibility laws in the United States.

SPECIFICATIONS:

• Model Number: BOYVTL300IRTJ
• Frame Type: Full-Frame License Plate Mount
• Frame Material: Zinc Metal
• Image Sensor: CMOS Image Sensor
• Resolution: 420 TV Lines (628×586)
• Viewing Angle: 140° (Diagonal)
• Waterproof Rating: IP68
• Operating Voltage: 12V DC
• Night Vision: Yes (Infrared Sensors)
• Parking Lines: Active Park Assist Lines (Dynamic)
• Image Type: Reverse Image Selectable
• U.S. Patent: US7,195,405

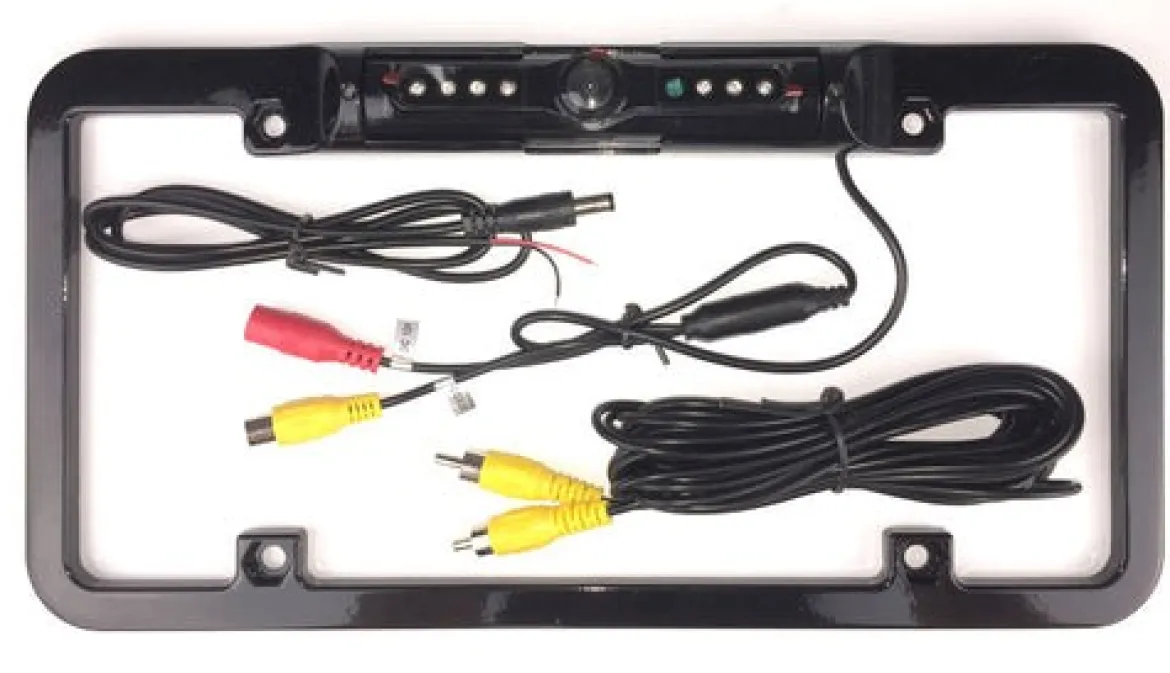

• Included in the Box: VTL300IRTJ Camera, Wiring Harness, Mounting Hardware, Extension Cable (approx. 20ft)

HOW TO USE:

1. Mount the Camera: Secure the full-frame license plate camera using the included hardware, ensuring proper alignment and positioning.
2. Route the Cable: Run the power and video cables into the vehicle interior (through trunk grommet if applicable) toward the monitor location.
3. Connect the Power: Attach the power wire to the positive reverse light circuit and ground wire to a chassis ground point.
4. Connect the Video: Plug the RCA video cable into the monitor or compatible head unit input.
5. Verify Functionality: Shift the vehicle into reverse to check for proper image display and dynamic guidelines.
6. Adjust the Angle: Fine-tune the vertical swivel to optimize the field of view and ensure alignment with the ground.

BENEFITS OF USING BOYO/VISION TECH PLATE BACKUP CAMERA W/ NIGHT VISION (BOYVTL300IRTJ):

• Eliminates Rear Blind Spots: Wide-angle 140° lens ensures comprehensive coverage behind the vehicle.
• Parking Precision: Active Park Assist Lines improve accuracy in tight spaces and parallel parking.
• Reliable Low-Light Operation: Infrared night vision provides consistent clarity even in complete darkness.
• Long-Term Reliability: Rugged zinc frame and IP68 waterproofing ensure durability in all conditions.
• Maintains Vehicle Aesthetics: Full-frame design integrates discreetly without blocking license plate visibility.

FEATURES:

• Full-Frame Mount: Secure design fits around the license plate without obstruction.
• Durable Zinc Construction: Scratch-resistant coated zinc body ensures longevity.
• True-Color CMOS Sensor: Provides accurate and vibrant video output.
• High Resolution: 420 TV Lines for clear video display.
• Selectable Image Mode: Switch between reverse and standard views as needed.
• Adjustable Camera Angle: Vertical swivel adjustment allows tailored viewing.
• Dynamic Guide Lines: Active trajectory lines respond to steering input for safer reversing.
• Weatherproof Protection: IP68 rating guarantees dustproofing and resistance to water immersion.
• Automatic White Balance: Maintains true colors under varying light conditions.
• Night Vision Capability: Infrared LEDs enhance visibility in low-light environments.
• Legal Compliance: Meets U.S. requirements for unobstructed license plate visibility.
