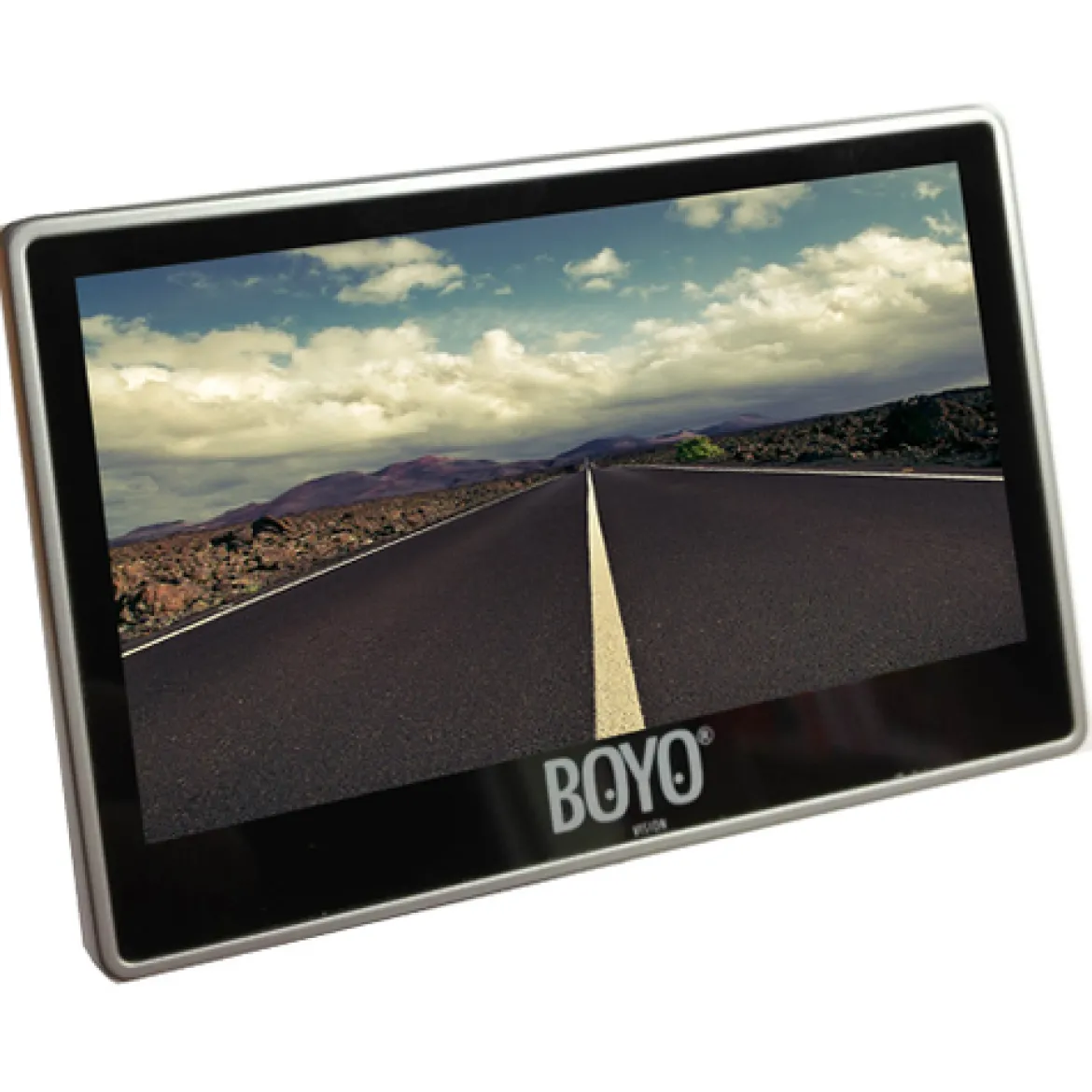

Boyo/Vision Tech 4″ TFT-LCD Backup Camera Monitor (BOYVTM4000)

The Boyo/Vision Tech 4″ TFT-LCD Backup Camera Monitor (BOYVTM4000) is engineered to provide a clear, dedicated display for your vehicle’s backup camera system, greatly enhancing rear visibility and parking safety.

KEY FEATURES AND BENEFITS:

• Dual-Mount Versatility: Comes with a Dual-Mount Solution, offering flexibility to install the monitor on your dashboard or windshield to achieve the optimal viewing angle.
• Two Video Inputs: Equipped with two video-in ports, allowing the user to connect a backup camera and a secondary camera (such as a front or side camera) to the same monitor, expanding vehicle awareness.
• Automatic Reverse Activation: The integrated Auto Reverse Trigger wire ensures the monitor instantly powers on and switches to the active camera feed the moment the vehicle is shifted into reverse gear, eliminating manual button pressing.
• Universal Compatibility: Supports both NTSC and PAL video signal systems, making it compatible with a wide array of aftermarket cameras available worldwide.
• Widescreen Display: The 16:9 display ratio is optimized for viewing video content, providing a wider, more natural field of view compared to older 4:3 monitors.
• Simplified Power: Operates directly on a standard DC 12V vehicle electrical system for straightforward integration into most cars, trucks, and vans.

SPECIFICATIONS:

• Model Number: BOYVTM4000
• Screen Type: Digital TFT-LCD
• Screen Size: 4 Inches
• Aspect Ratio: 16:9
• Video System: NTSC / PAL
• Video Inputs: 2 Composite Video Inputs
• Power Source: DC 12V
• Monitor Weight: 0.90 lbs
• Included in the box: Monitor Unit, Dual-Mount Accessories, Power Wiring Harness, Manual

HOW TO USE:

1. Monitor Installation: Using the provided Dual-Mount accessories, securely place the monitor on your vehicle’s dashboard or windshield in a location that does not obstruct your view of the road.
2. Camera Connection: Connect your backup camera’s RCA video cable to the Video 1 input on the monitor’s wiring harness. (If you have a second camera, connect it to Video 2).
3. Power Connection: Connect the monitor’s power wiring harness to your vehicle’s 12V power supply (often to an ignition-switched source).
4. Reverse Trigger Wiring: Connect the dedicated “Auto Reverse Trigger” wire to the positive wire of your vehicle’s reverse light circuit.
5. Automatic Operation: When the vehicle is shifted into Reverse, the monitor will automatically power on and display the camera feed.
6. Manual Operation: Use the monitor’s button to view the secondary camera feed when not in reverse.
7. Adjusting Display: Use the control buttons to fine-tune brightness and contrast for optimal viewing.

BENEFITS OF USING BOYO/VISION TECH 4″ TFT-LCD BACKUP CAMERA MONITOR (BOYVTM4000):

• Improved Parking Confidence: Provides a clear, dedicated visual aid that reduces guesswork when maneuvering in tight spots.
• Enhanced Safety: Allows the driver to see potential hazards, children, or pets directly behind the vehicle.
• Flexible Integration: Functions as a universal display compatible with any composite video (RCA) camera.
• Quick Activation: The automatic reverse trigger ensures instant display of the rear view when needed.
• Minimal Footprint: Compact 4-inch size prevents dashboard clutter and activates only when required.

FEATURES:

• Dual-Camera Support: Handles two separate video feeds for enhanced monitoring.
• Worldwide Compatibility: Works with NTSC and PAL video standards across global markets.
• Priority Backup View: Automatically switches to the backup camera feed when in reverse gear.
• Adjustable Display Settings: User controls allow customization of brightness and contrast.
• Image Flip Function: Can mirror or flip the displayed image to match real-life orientation.
• Vehicle-Ready Power: Designed for seamless operation with standard 12V vehicle systems.
