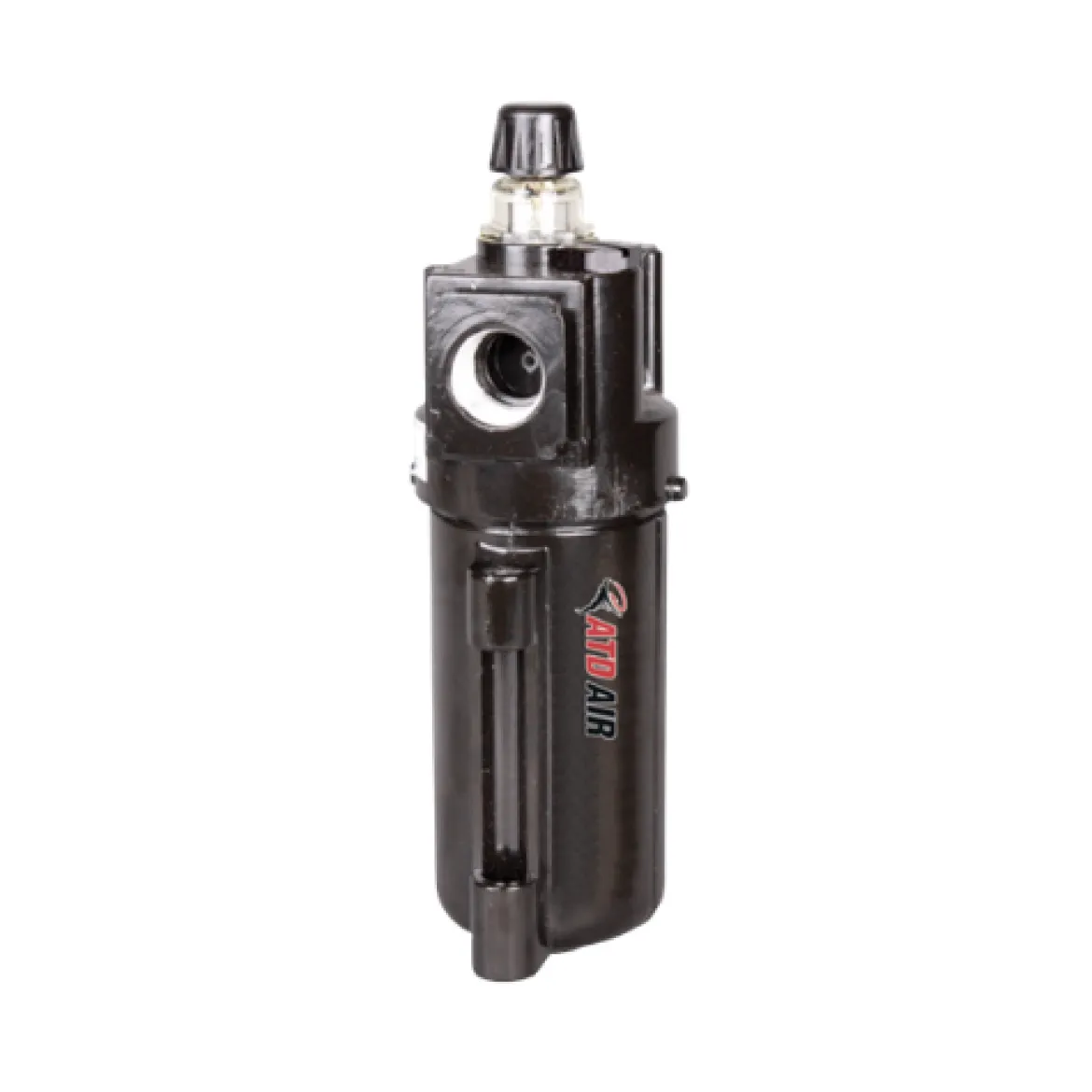

ATD Tools 7850 Lubricator

Pipe Size: 1/2″ Bowl Type: metal; Operating Temperature: 40°-160° F; Maximum Flow Pressure: 200 psig. 142 SCFM maximum; 6 oz. bowl capacity; 2 SCFM required to operate. Injects a fine stream of oil into the air stream to automatically lubricate air operated tools and other devices. Extends life of downstream components. Precise control of oil feed with needle valve adjustment knob. Adds minimal pressure drop to the air system. Features three position non-rising knob?push to lock, pull to adjust, detach to make tamper resistant. Most pneumatic system components and air tools require oil lubrication for proper operation and long service life. Too little oil can cause excessive wear and premature failure. Too much oil is wasteful and can contaminate, particularly when carried over with the air exhaust. Pneumatic equipment can be lubricated by the use of an air line lubricator. Filtered and regulated air enters the lubricator and is mixed with oil in an aerosol mist. The air is then routed to the operating system. To remove water, dirt and debris from air prior to oiling your pneumatic tools, always use a general purpose filter before the lubricator.
