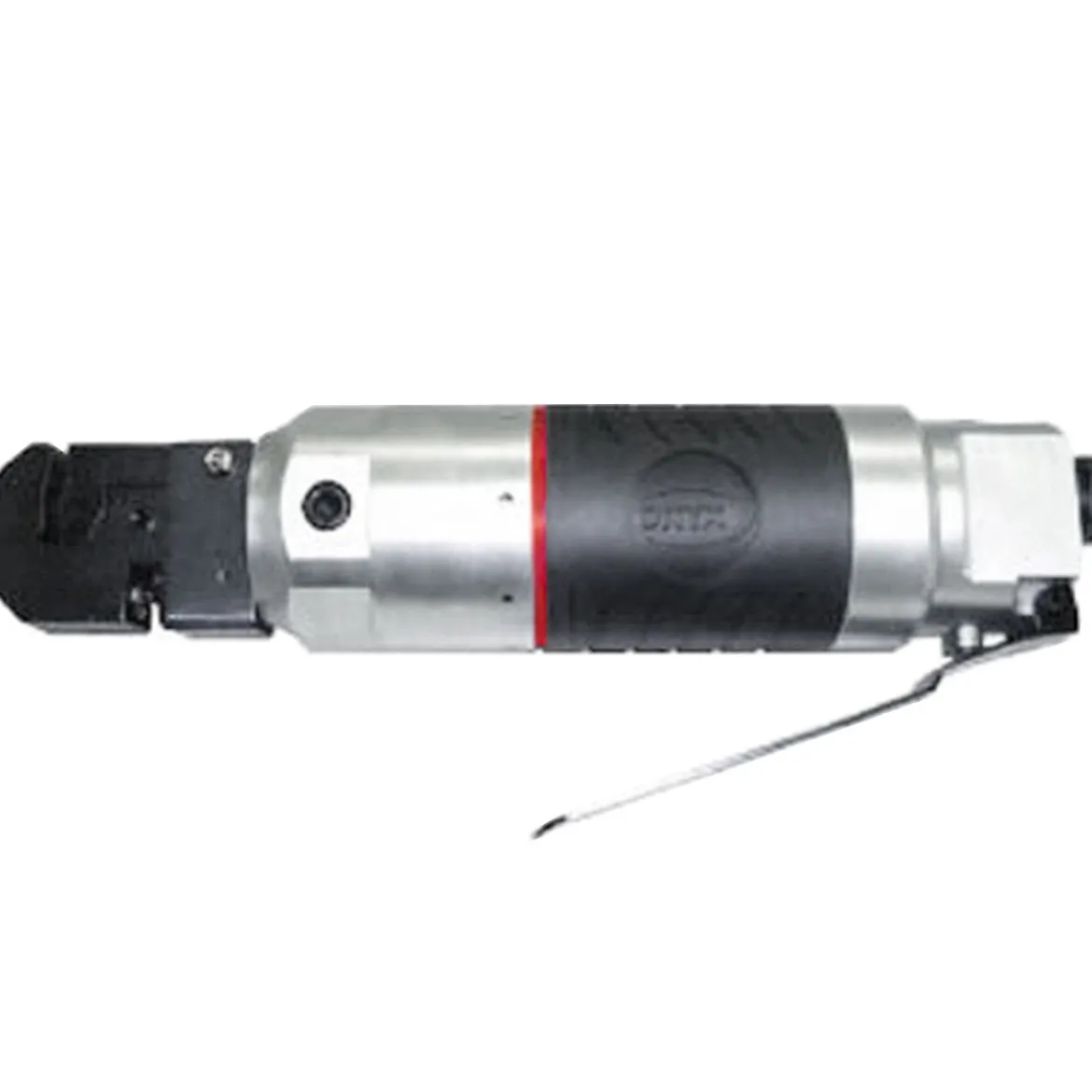

Astro Pneumatic ONYX Straight Punch Flange Tool with 5.5mm Punch Durable (605ST)

Astro Pneumatic ONYX Straight Punch Flange Tool with 5.5mm Punch Durable (605ST) is designed to deliver precise hole punching and panel crimping with minimal effort. Its rotating head offers easy use, and each lever pull delivers a single punch or flange crimp with precision control.

This punch flange tool is lightweight and durably constructed, reducing metal fabrication time by half. The 5.5mm punch is easy to replace, and the tool’s ergonomic design ensures comfortable operation for extended use. This 5.5mm punch flange tool guarantees efficient and accurate results in any metalworking project.

• Specifications and Dimensions
  • Punch Diameter: 5.5mm (7/32″)
  • Punch Capacity: 1.6mm (1/16″)
  • Crimping Capacity: 1.6mm (1/16″)
  • Piston Stroke: 5/32″ (4mm)
  • Overall Length: 9.84″ (250mm)
  • Net Weight: 2.6 lbs. (1.18 kg)
  • Air Inlet Thread NPT: 1/4″
  • Air Hose I.D. Size: 3/8″ (10mm)
  • Avg. Air Consumption: 4 cfm
  • Air Pressure: 90-120 psi
• Key Features and Benefits
  • Easy replacement of 5.5mm punch
  • Performs precise hole punching and panel crimping
  • Rotating head for convenient use
  • Lightweight and durable construction
  • Reduces metal fabrication time by half
  • Offset crimped edge for no-bump lap welds
