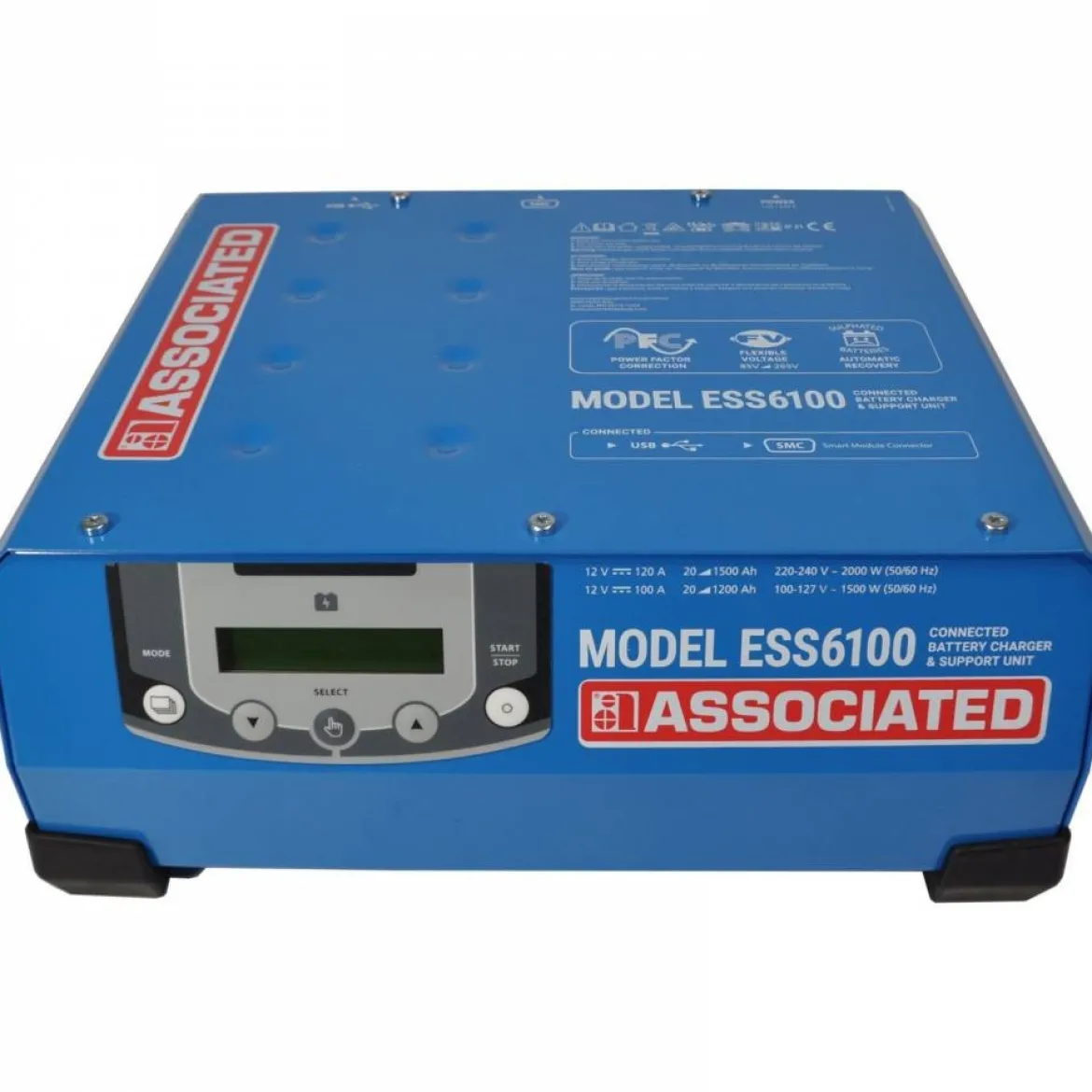

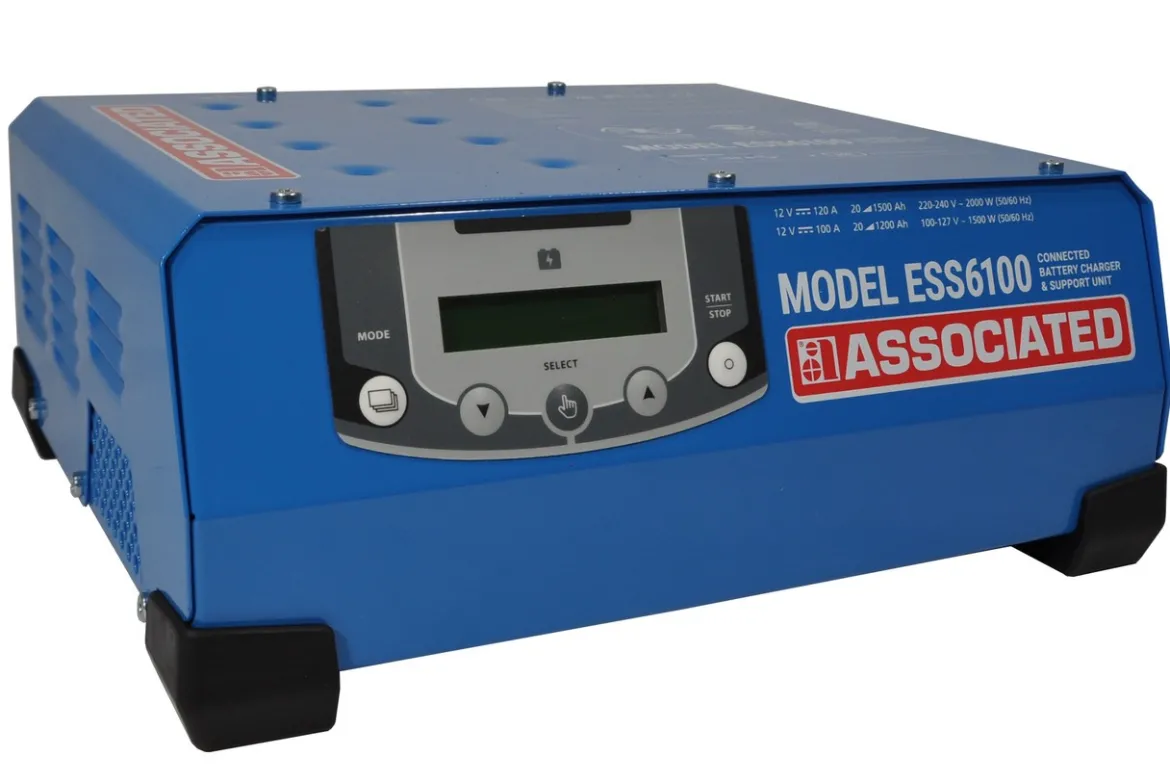

Associated ESS6100 Lead Acid & Lithium Battery Charger (ESS6100)

The Associated ESS6100 Lead-Acid / Lithium Battery Charger and Diagnostic Support is a cutting-edge high-power smart charger designed with inverter technology. This versatile charger is essential for maintaining and optimizing performance. During diagnostic phases, it keeps your battery at a perfectly stabilized voltage, ensuring reliable performance for the most advanced vehicles on the market. The ESS6100 is OE-approved and comes equipped with four operational modes, making it a valuable addition to any maintenance workshop.

Specifications:

4 Operating Modes:

• Charging: For 12 V lead or lithium (LFP) batteries from 5 to 1500 Ah.
• Diagnostics: Supports up to 100 A for 12 V batteries in maintenance workshops.
• Showroom: Provides power compensation for electrical accessories in demo vehicles.
• Tester: Checks battery voltage and evaluates starter and alternator condition.

100% Connected:

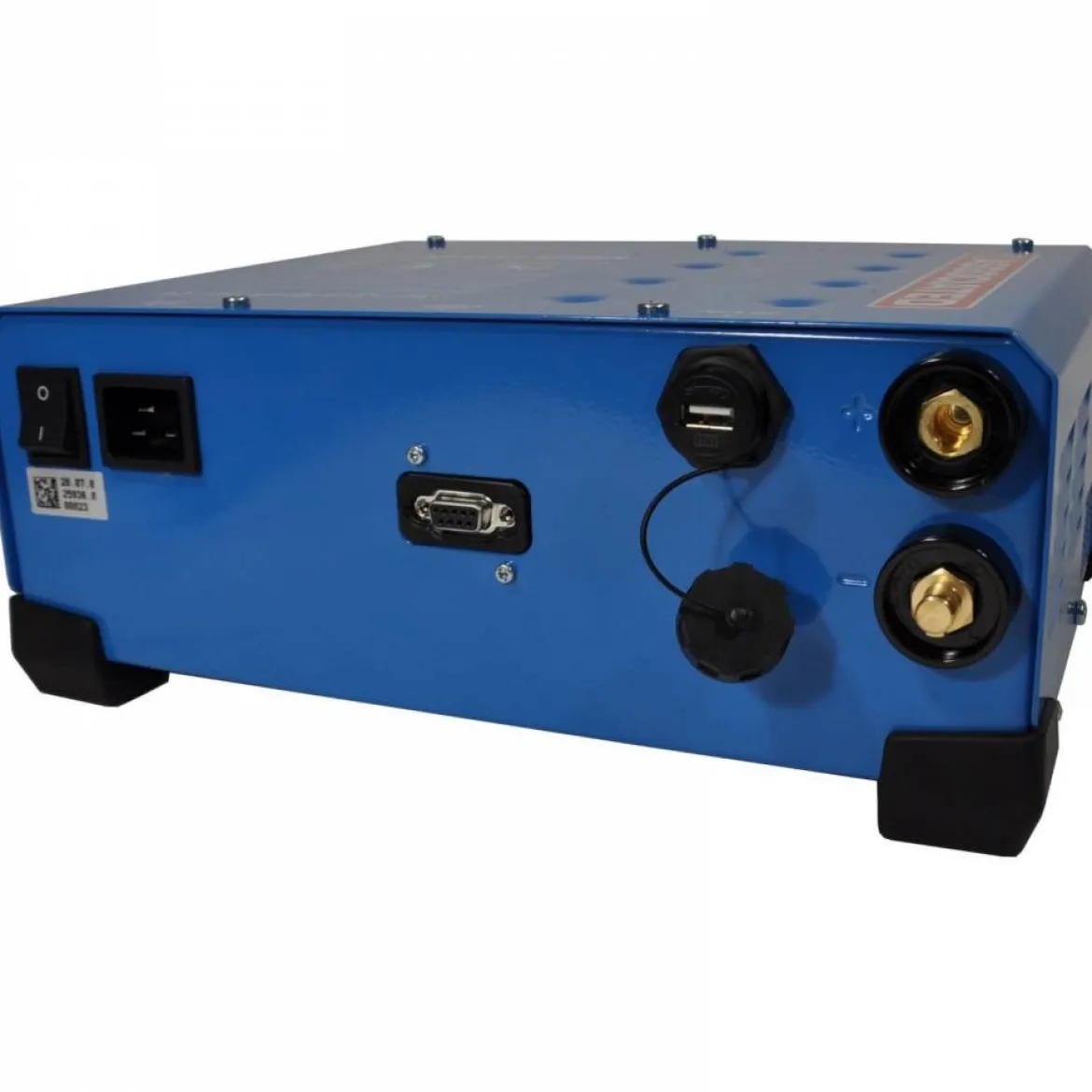

• Modify charging modes and profiles via USB.
• Import predefined configuration files.
• Retrieve charging history on a USB stick for data analysis.
• Connect additional modules (printer, barcode reader) via Smart Module Connector.

Automatic Charge:

• Extends life and performance of lead and lithium batteries.
• 8-step (lead) or 9-step (lithium) specific charging curves.
• Recover deeply discharged batteries (>2 V) with automatic SOS Recovery.

Advanced Functions:

• Operates with a supply voltage between 100 and 127 V AC.
• Auto-Detect function starts charging when a battery is connected.
• Auto-Restart function restores settings after power failure.
• Cable inspection and calibration features.
• Up to 12 available charging profiles, including an Easy profile.

Safety Features:

• Protects vehicle electronics from short circuits, polarity reversal, and overcharging.
• Spark prevention system and interchangeable fuses for safety.
• Temperature sensor to prevent overheating of internal electronics.
