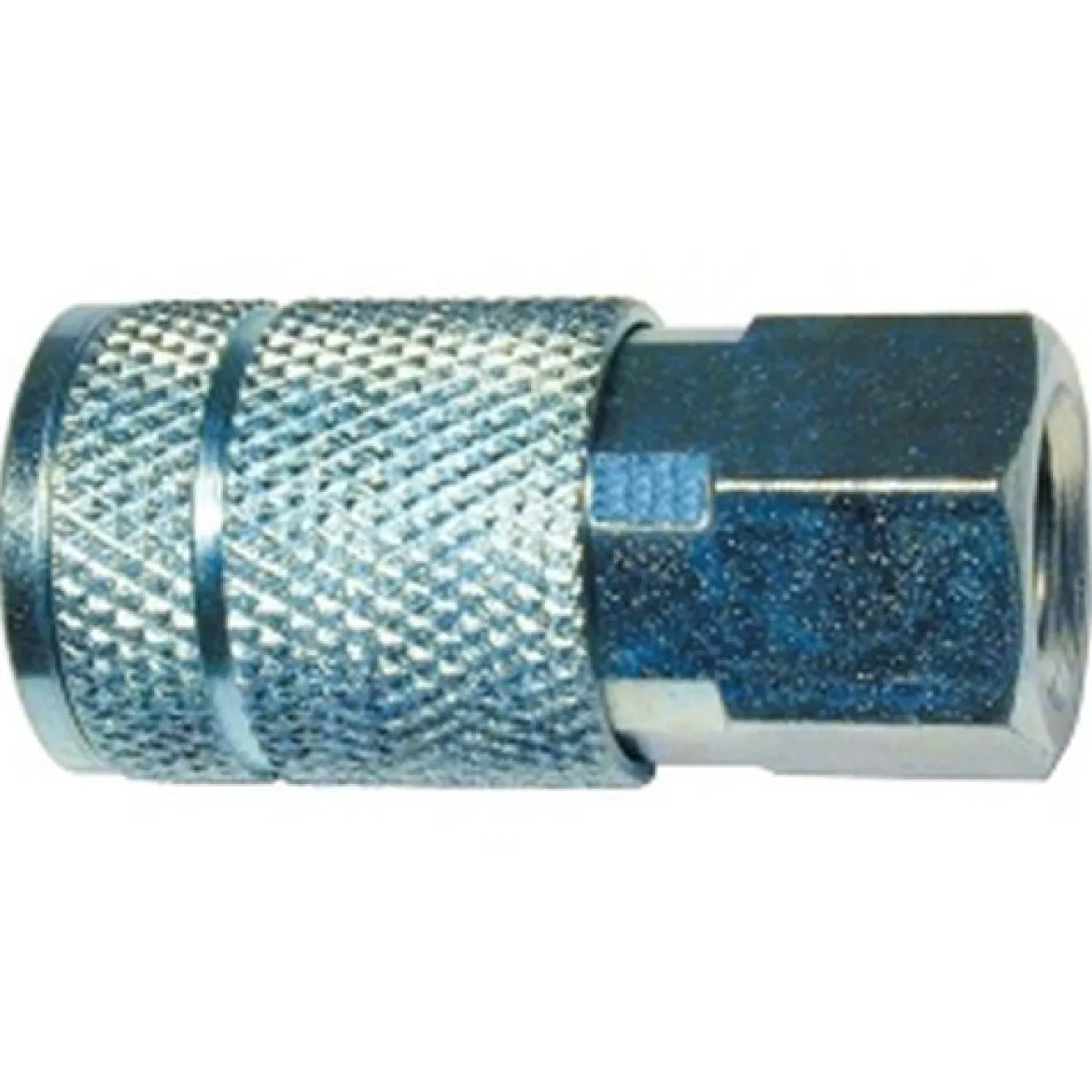

Amflo 1/4″ T Design x 1/4″ FNPT Steel Coupler (C2)

The Amflo 1/4″ T Design x 1/4″ FNPT Steel Coupler (C2) is an essential component for any compressed air system, providing a secure and efficient connection between air hoses and tools. Built from robust steel and designed to meet the Automotive Standard Series Type “C” specifications, this coupler ensures reliable performance in demanding environments. Its precise engineering prevents air leaks, maintaining consistent pressure for your pneumatic operations.

KEY FEATURES AND BENEFITS:

• Standard Compatibility: The 1/4″ Automotive Standard Series Type “C” design ensures broad compatibility with a wide range of existing air tools and hoses, simplifying integration into your current setup.
• Enhanced Durability: Constructed from plated steel, this coupler features hardened steel balls and stainless steel springs for increased resilience against wear and corrosion. Coupler plugs are heat-treated to significantly reduce wear on critical mating surfaces, extending the product’s lifespan.
• High-Pressure Reliability: With a maximum working pressure of 300 PSI, this coupler is designed to handle demanding pneumatic applications, providing a secure and leak-free connection under high pressure.
• Secure Connection: The T Design coupler ensures a firm grip on air plugs, preventing accidental disconnections during operation and maintaining consistent airflow.

SPECIFICATIONS:

• Style: T Design (Automotive Standard Series Type “C”)
• Body Size: 1/4″
• Thread Type: Female (FNPT)
• Thread Size: 1/4″
• Material: Steel (plated)
• Maximum Working Pressure: 300 PSI
• Included when purchased: 10 couplers per box

HOW TO USE:

• Prepare Your Air Line: Ensure your air hose and tool both have compatible 1/4″ NPT fittings (male for the tool/hose, or female for the coupler itself if connecting to a male NPT hose end).
• Attach to Air Hose: Thread the 1/4″ FNPT end of the Amflo C2 coupler onto the male NPT end of your air hose. Use a wrench to tighten firmly, but do not overtighten, to create an airtight seal.
• Connect Air Tool: Push back the collar (sliding sleeve) on the Amflo coupler.
• Insert Plug: Insert the male plug (nipple) from your air tool into the coupler opening.
• Secure Connection: Release the collar. The internal locking balls will engage the groove on the plug, creating a secure connection. A slight tug on the tool will confirm it’s locked in place.
• Disconnect: To disconnect, simply pull back the coupler’s collar and pull the air tool’s plug out. The coupler’s automatic shut-off valve will seal the air line.

BENEFITS OF USING AMFLO 1/4″ T DESIGN x 1/4″ FNPT STEEL COUPLER (C2):

• Dependable Connection: Provides a dependable and quick connection point for pneumatic tools and air lines.
• Efficient Workshop Operations: Contributes to a more efficient workshop by minimizing air leaks and maintaining system pressure.
• Long-Lasting Performance: Thanks to its robust steel construction and specialized heat-treated components.
• Enhanced Safety: Offers a secure connection that resists accidental disengagement.
• Simplified Tool Changes: Allows for seamless transitions between different air-powered equipment.

FEATURES:

• Interchangeable: Interchanges with Tru-Flate 10 and 100 type series for broad compatibility.
• Tubular Valve Design: For superior airflow and reduced pressure drop.
• Extra Locking Ball Bearings: For a tighter fit and precise alignment.
• Spring-Loaded, Air-Assisted Valve Design: Strengthens the seal as line pressure increases.
• Automatic Shut-Off Valve: Instantly seals the air line upon uncoupling.
• Corrosion Resistant: Due to its plated steel finish.
