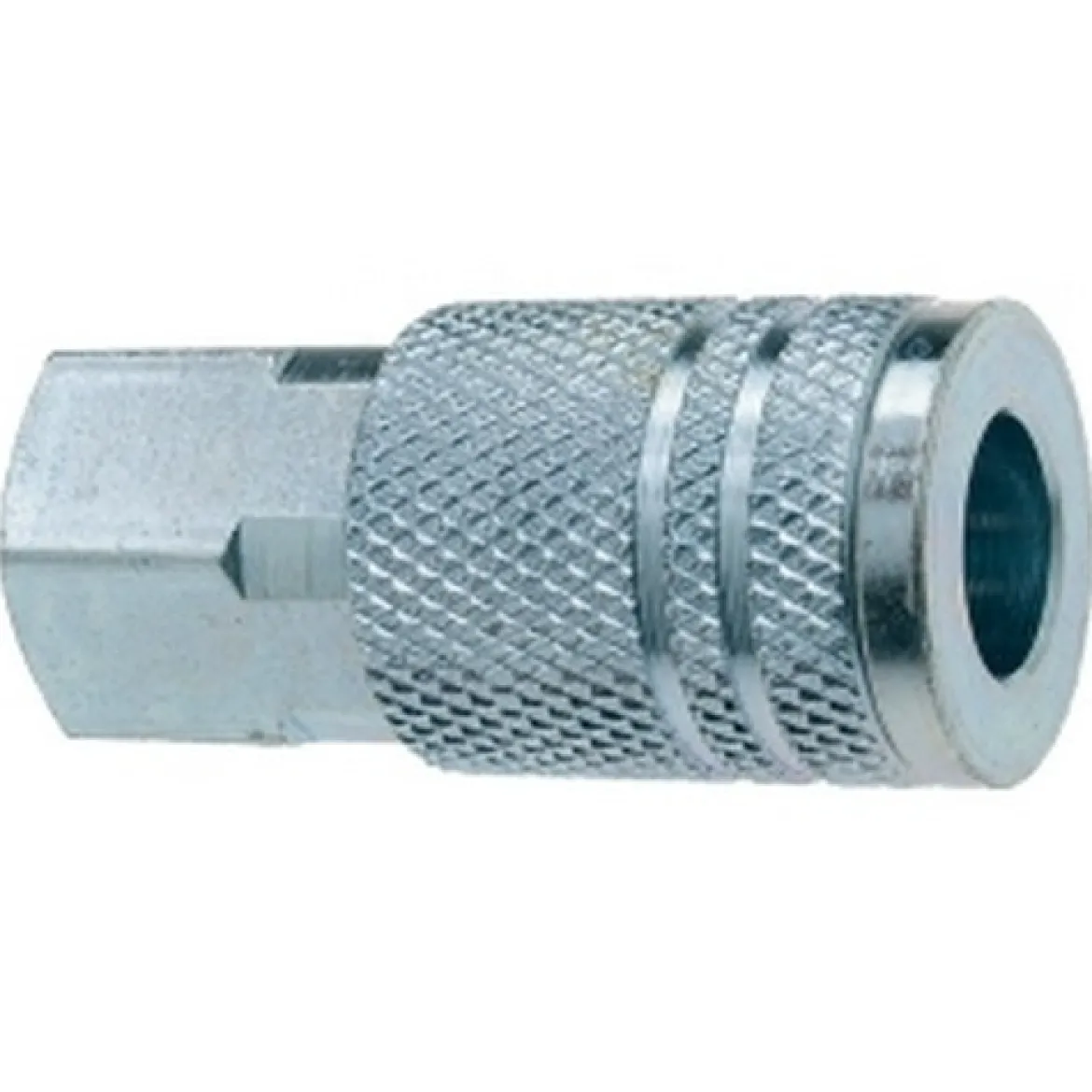

Amflo 1/4″ I/M Design x 1/4″ FNPT Steel Coupler (C20)

The Amflo 1/4″ I/M Design x 1/4″ FNPT Steel Coupler (C20) is a crucial component for any pneumatic system, designed to provide a secure and efficient connection between your air tools and air hoses. This coupler features the widely recognized Industrial/Milton (I/M) interchange design, ensuring broad compatibility with many existing air tool plugs and other fittings in your workshop. Manufactured from plated steel, the C20 coupler is built to withstand regular use in demanding environments. Its construction includes hardened steel balls and stainless steel springs, contributing to its operational consistency and longevity. The 1/4″ FNPT (Female National Pipe Taper) threaded end allows for a straightforward attachment to air hoses or other threaded pneumatic components. This coupler is an essential fitting for maintaining a reliable and high-performing compressed air setup, supporting various applications from automotive work to general shop tasks.

KEY FEATURES AND BENEFITS:

• Industrial/Milton (I/M) Design: Ensures broad compatibility with a wide range of existing air tool plugs and couplers from various manufacturers like Aro, Foster, and Milton.
• Plated Steel Construction: Provides resistance to wear and offers a stable connection point for pneumatic applications.
• Hardened Steel Balls and Stainless Steel Springs: Internal components are made to maintain connection integrity and provide consistent performance over time.
• Heat-Treated Coupler Plugs: The plugs designed to mate with this coupler are heat-treated to minimize wear on critical surfaces, contributing to the system’s longevity.
• 300 PSI Maximum Working Pressure: Capable of handling common workshop and industrial air pressures, ensuring a safe and effective connection.

SPECIFICATIONS:

• Style: I/M (Industrial/Milton)
• Body Size: 1/4″
• Thread Type: Female NPT (National Pipe Taper)
• Thread Size: 1/4″
• Material: Steel
• Included in Product: 10 couplers per box when purchased.

HOW TO USE:

• Prepare the Connection: Ensure your air hose has a male 1/4″ NPT fitting and your air tool has a male I/M plug.
• Attach to Air Hose: Thread the 1/4″ FNPT end of the Amflo C20 coupler onto the male 1/4″ NPT fitting of your air hose. Tighten securely with a wrench, taking care not to overtighten.
• Connect Air Tool: With the air supply off or depressurized, push the male I/M plug from your air tool firmly into the quick-connect end of the Amflo C20 coupler until it clicks into place.
• Verify Connection: Gently pull on the air tool to ensure the connection is secure and does not easily disconnect.
• Activate Air Supply: Turn on your air compressor or open the air line valve to begin using your pneumatic tool.
• Disconnect: To disconnect, pull back the collar on the Amflo C20 coupler and simultaneously pull the air tool plug out. Always depressurize the air line before disconnecting if possible.

BENEFITS OF USING AMFLO 1/4″ I/M DESIGN x 1/4″ FNPT STEEL COUPLER (C20):

• Dependable Connection: Provides a dependable and quick connection point for pneumatic tools and air lines.
• Efficient Workshop Operations: Contributes to a more efficient workshop by minimizing air leaks and maintaining system pressure.
• Long-Lasting Performance: Thanks to its robust steel construction and specialized heat-treated components.
• Enhanced Safety: Offers a secure connection that resists accidental disengagement.
• Simplified Tool Changes: Allows for seamless transitions between different air-powered equipment.

FEATURES:

• Interchangeable: Interchanges with common industrial interchange series “D” type plugs.
• Quick Connection and Disconnection: Designed for fast attachment and detachment of air tools.
• Leak-Resistant Seal: Provides a secure seal for pneumatic lines.
• Operational Wear Resistance: Ensures longevity due to material selection.
• Organized Tool Management: Facilitates efficient air tool management in a workspace.
