American Forge & Foundry Fuel Tank Adapter (3198)

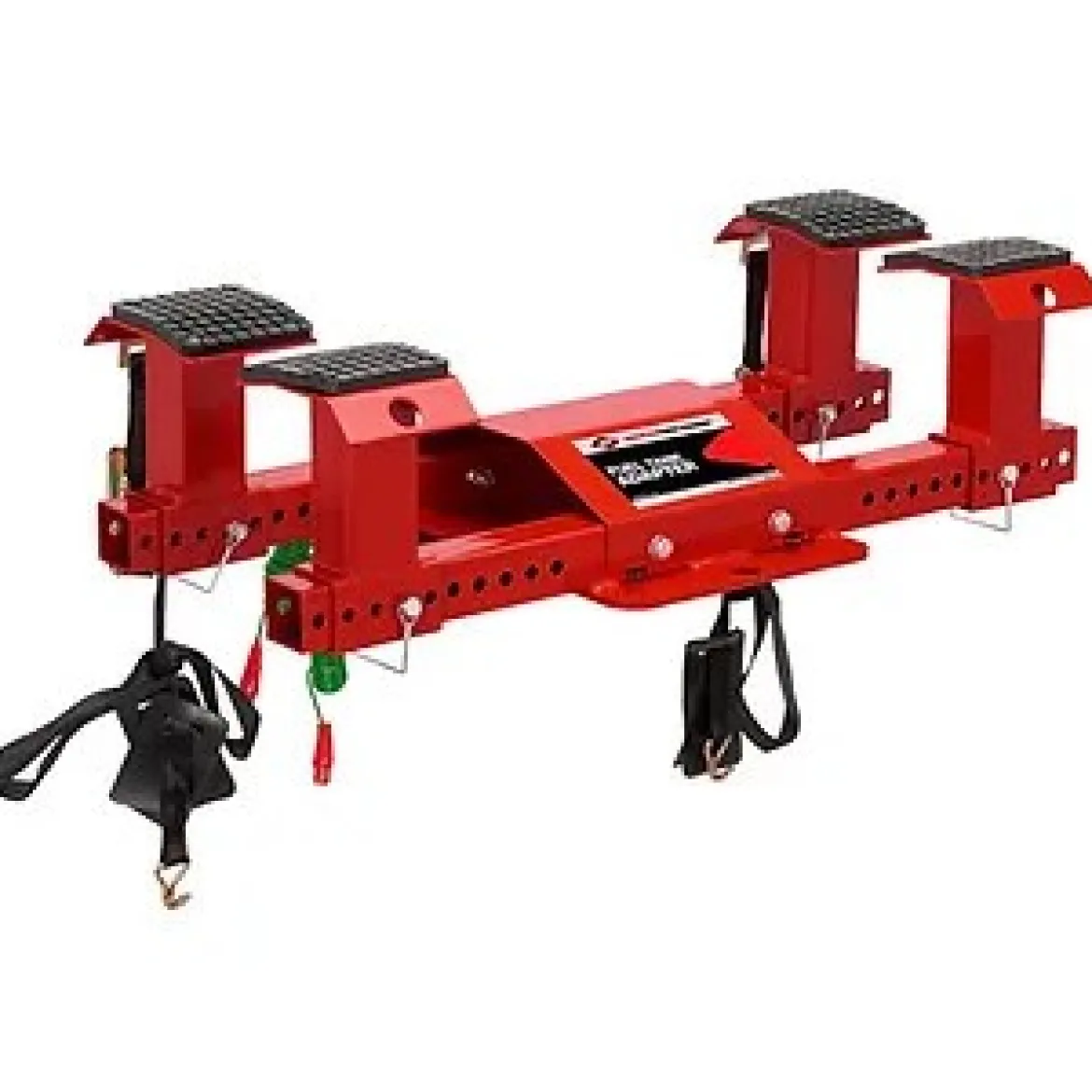

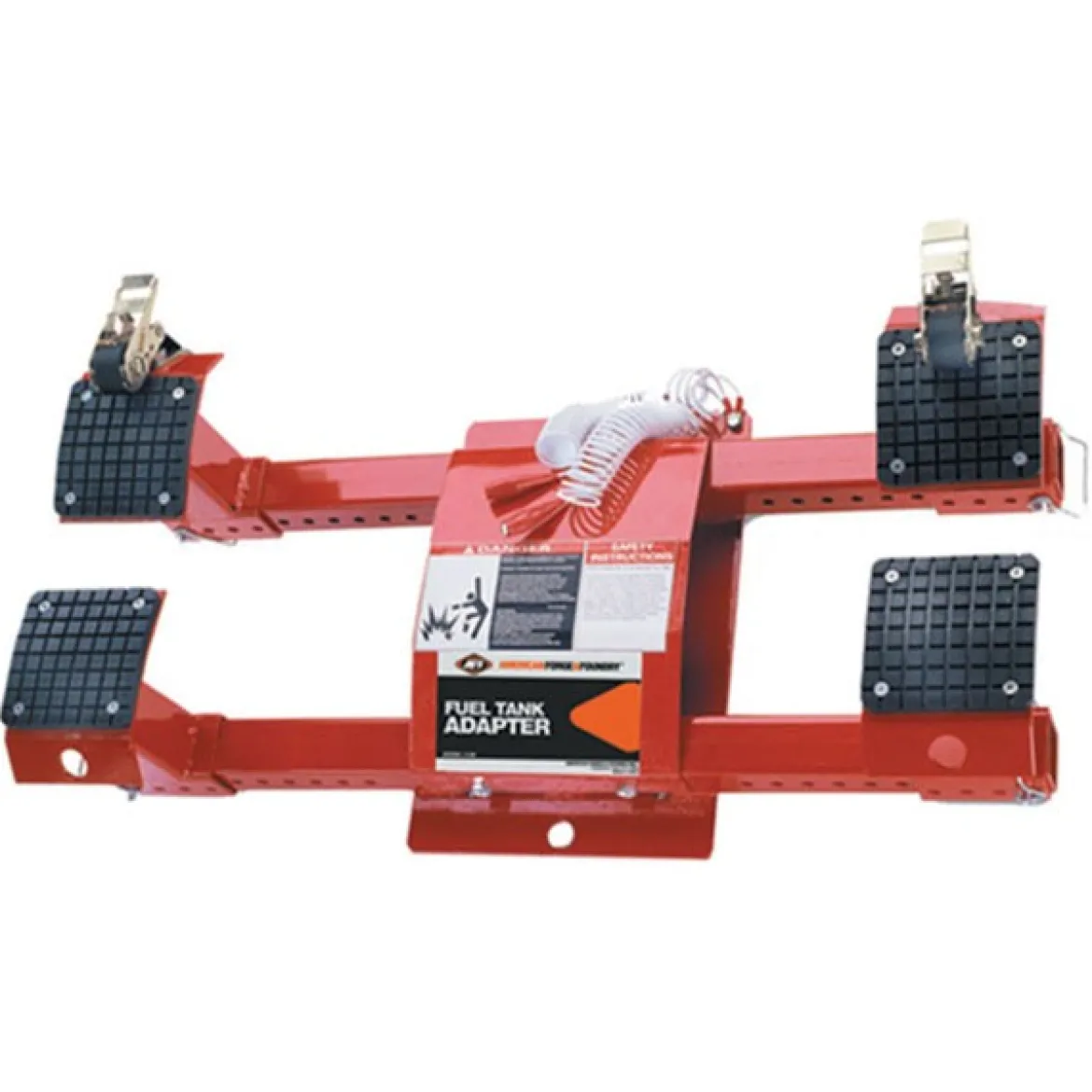

The American Forge & Foundry Fuel Tank Adapter (3198) is an indispensable accessory engineered to significantly enhance the functionality of compatible AFF heavy-duty transmission jacks. This adapter provides a dedicated and secure platform, allowing automotive professionals to efficiently and safely perform the critical task of removing and installing vehicle fuel tanks. Its design prioritizes stability and user safety, making it a valuable addition to any workshop dealing with fuel system service. Beyond fuel tanks, its adaptable nature also makes it suitable for handling other components such as trailer hitches and running boards.

KEY FEATURES AND BENEFITS:

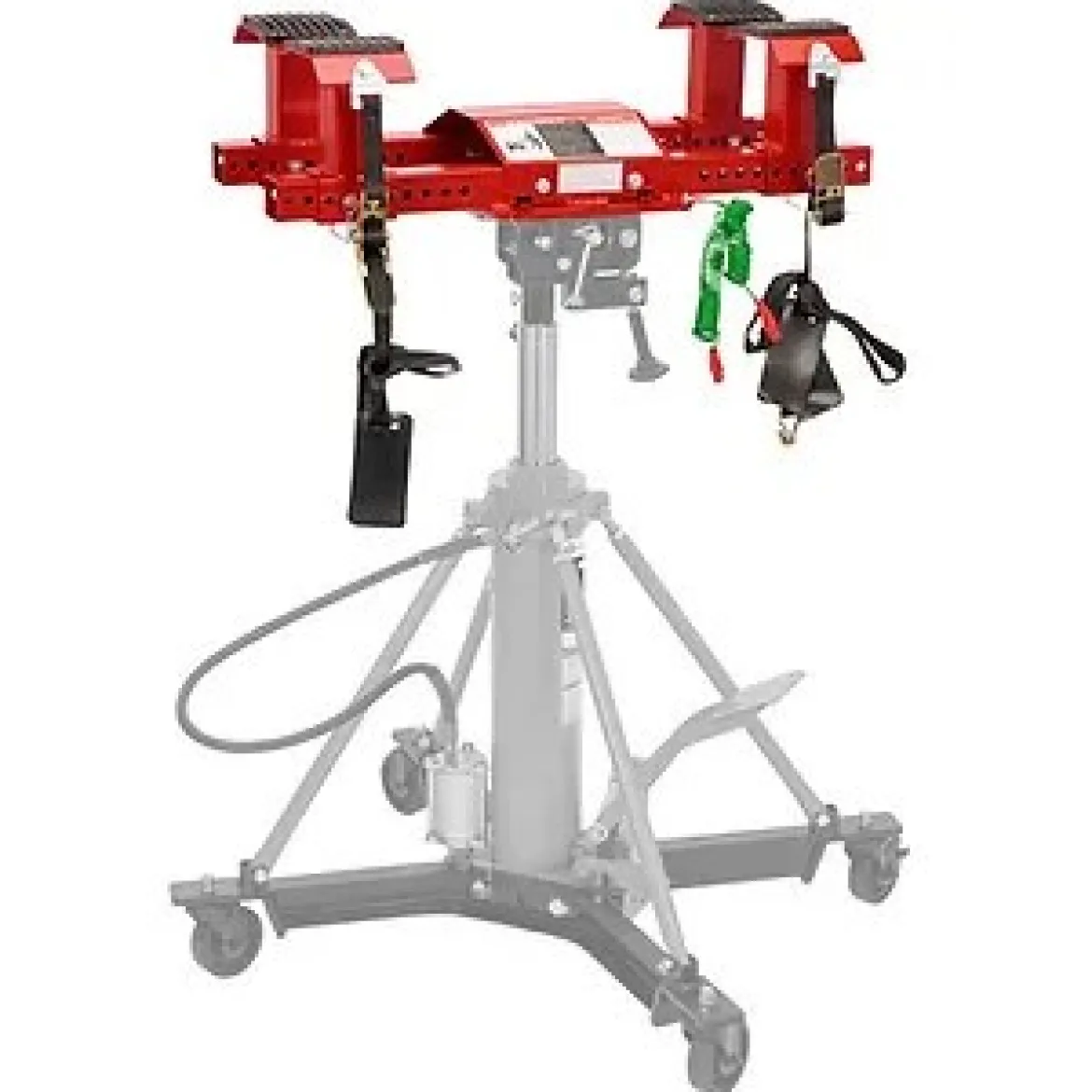

• Adapter Compatibility: Designed to transform AFF Models 3052, 3052A, 3102, and 3102A heavy-duty transmission jacks for safe fuel tank handling.

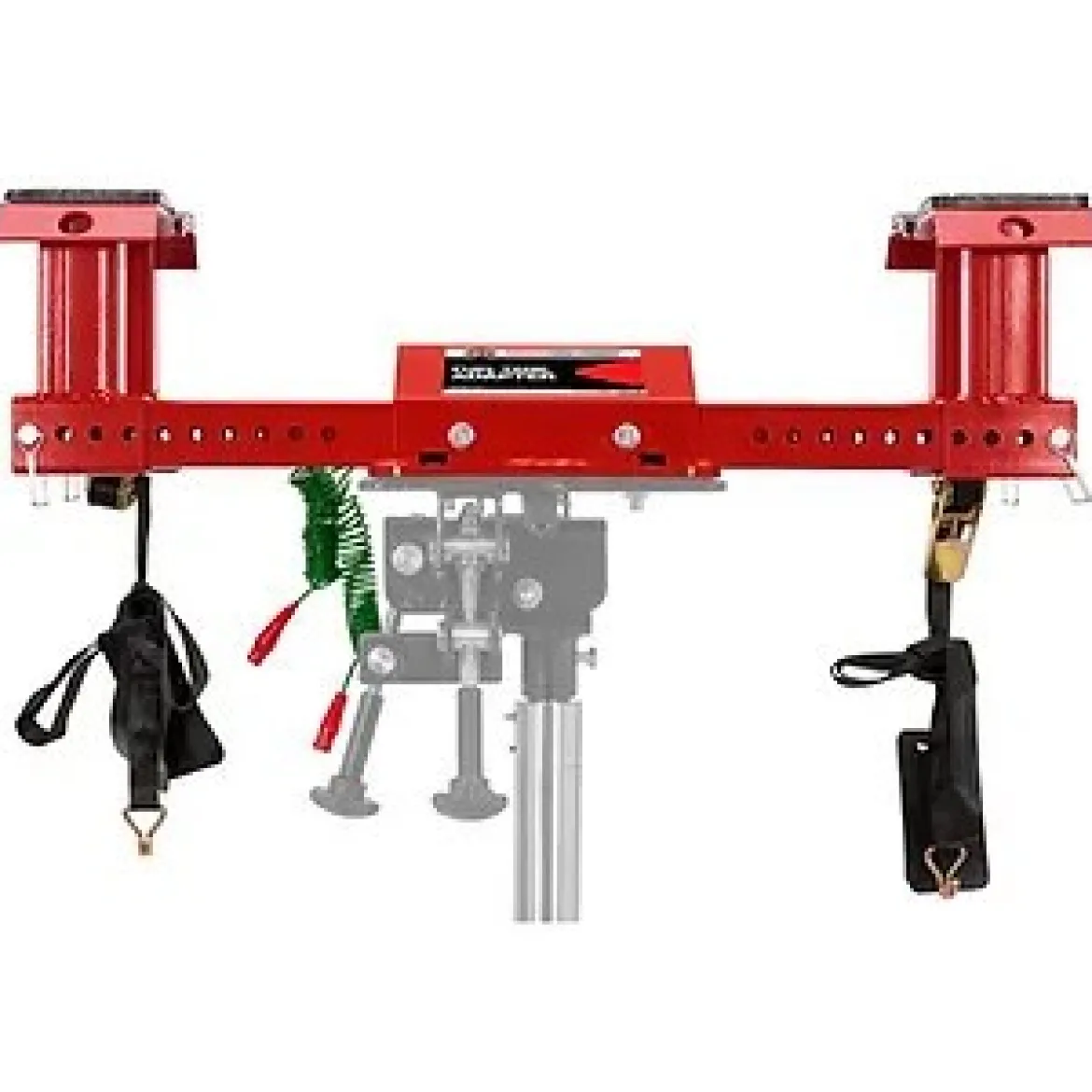

• Rubber Saddles: Features 4″ x 5.75″ diameter rubber saddles that grip securely and adjust vertically from 19.75″ to 31.75″.
• Safety Straps: Includes two safety straps to securely hold the fuel tank in place during lifting and transport.

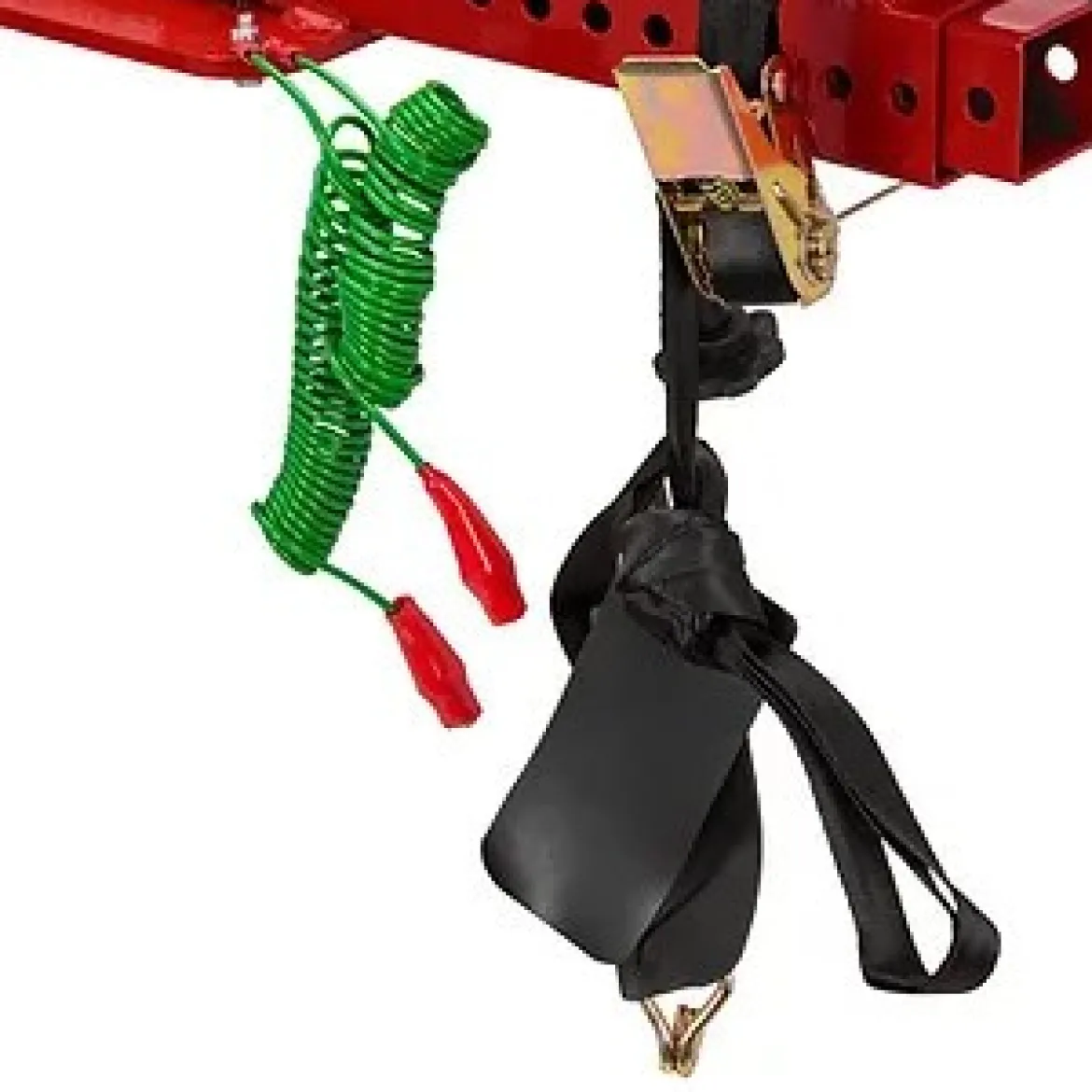

• Grounding Cables: Equipped with two grounding cables to prevent static electric discharge, especially important when handling metal fuel tanks.

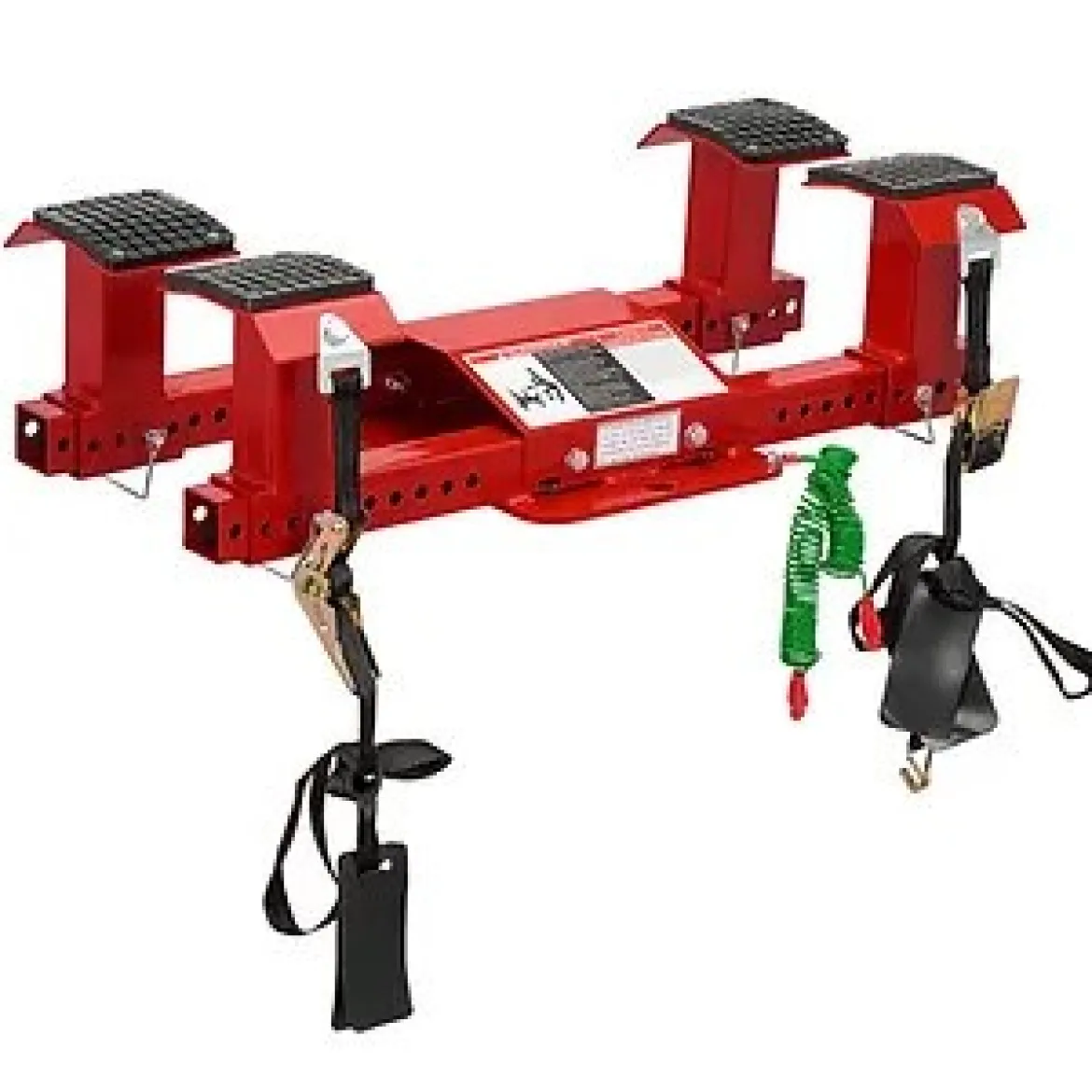

• Custom Fit: Four individually adjustable support risers allow precise contouring to fit a variety of fuel tank shapes for maximum stability.

SPECIFICATIONS:

• Model Number: 3198
• Manufacturer: American Forge & Foundry (AFF)
• Capacity: 80 lbs
• Saddle Size: 4″ x 5.75″ diameter
• Saddle Adjustment Range (Height): 19.75″ to 31.75″
• Base Length: 15.8 inches
• Base Width: 31.7 inches
• Ship Weight: 59 lbs
• Duty Level: Heavy Duty
• Standards: ASME PASE 2019 Safety Standard

HOW TO USE:

1. Prepare the Transmission Jack: Ensure your compatible AFF transmission jack (Models 3052, 3052A, 3102, 3102A, 3190B, 3192A, 2195A) is in good working order and on a stable, level surface.
2. Attach the Adapter: Securely mount the AFF Fuel Tank Adapter (3198) to the head of your transmission jack according to the jack’s specific instructions for accessory attachment.
3. Position the Vehicle: Raise and properly support the vehicle on a lift or jack stands to allow sufficient access to the fuel tank.
4. Adjust Saddles: Carefully position the transmission jack with the attached adapter beneath the fuel tank. Adjust the height of the adapter and individually adjust the four support risers to conform to the contours of the fuel tank, ensuring maximum contact and stability.
5. Secure the Tank: Once the tank is properly seated on the saddles, utilize the two provided safety straps to firmly secure the fuel tank to the adapter.
6. Attach Grounding Cables: If working with an older metal tank, connect the two grounding cables from the adapter to suitable grounding points on the vehicle and/or the tank itself to dissipate static electricity.
7. Lower/Raise Tank: Slowly and carefully operate the transmission jack to lower or raise the fuel tank as needed for removal or installation. Always maintain control and observe for any obstructions or instability.
8. Detach and Store: After the task is complete, carefully detach the fuel tank, remove the adapter from the transmission jack, and store it in a clean, dry place.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY FUEL TANK ADAPTER (3198):

• Safe Handling: Provides a safe and controlled method for handling heavy and often awkwardly shaped fuel tanks.
• Injury Prevention: Reduces the risk of injury to technicians and damage to vehicle components during fuel tank service.
• Improved Efficiency: Increases efficiency in the workshop by simplifying a challenging and time-consuming procedure.
• Versatile Usage: Offers a versatile solution that can also be utilized for other bulky undercarriage components like trailer hitches.
• Extended Tool Utility: Extends the functionality and utility of existing AFF heavy-duty transmission jacks, maximizing tool investment.

FEATURES:

• Converts specific AFF heavy-duty transmission jacks for fuel tank applications.
• Four rubber-padded saddles provide non-slip contact with the fuel tank.
• Saddle height adjusts to accommodate various vehicle clearances and tank depths.
• Individual riser adjustments allow for custom contouring to different tank designs.
• Includes a pair of robust safety straps to prevent load shifting during operation.
• Equipped with two static discharge cables for enhanced safety with metal tanks.
• Designed for a stable 80-pound lifting capacity for fuel tanks.
• Constructed from high-strength steel for longevity in demanding workshop environments.
