American Autowire 4-Window Power Reversing Relay Kit (AAW510962)

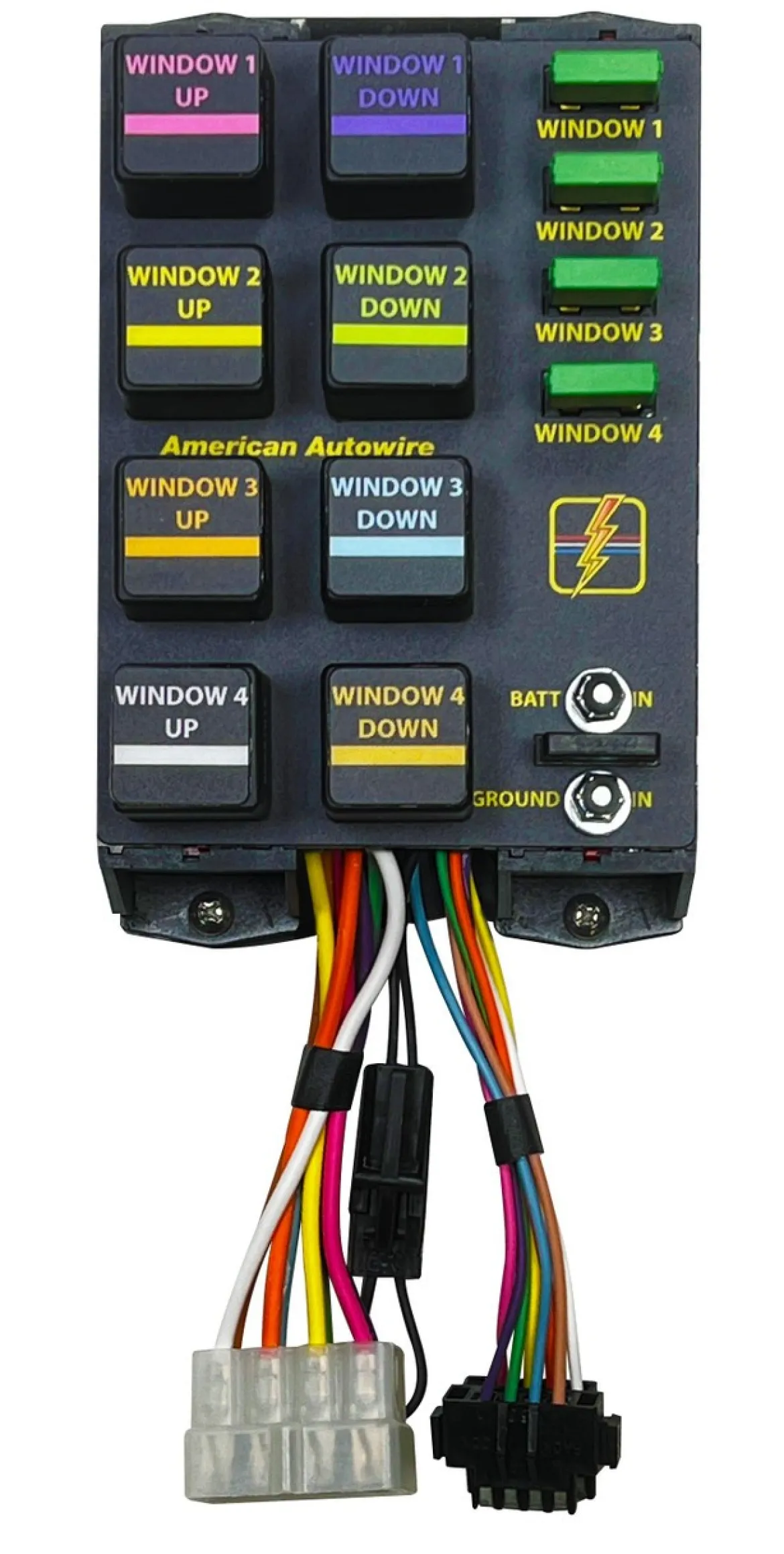

The American Autowire 4-Window Power Reversing Relay Kit (AAW510962) is designed to provide reliable reversing power for up to four power windows and other motor-driven accessories. Equipped with 40-amp relays and color-coded wiring, this kit simplifies installation while offering long 120-inch wire leads for flexible mounting options. It can function as a standalone system or integrate seamlessly with American Autowire Factory Fit and Street Rod Division harnesses, making it a versatile choice for a wide range of automotive applications.

KEY FEATURES AND BENEFITS:

• Provides reversing power for up to four power windows and other motor-controlled accessories.
• Equipped with 40-amp relays for reliable operation.
• Color-coded relays and wires simplify installation.
• Includes 120-inch wire leads for versatile mounting locations.
• Compatible for use as a standalone system or with American Autowire harnesses.

SPECIFICATIONS:

• Part Number: 510962
• Voltage: 12V
• Amperage: 40 amps
• Wire Material: GXL polyethylene cross-link
• Base Plate Material: G10 composite
• Included in the box:
• Relay panel
• MEGA Fuse Block & Cover Assembly
• Self-resetting circuit breakers
• Relays
• 10-gauge feed and ground wires
• Rubber sleeves and ring terminals
• Mounting hardware not included

HOW TO USE:

1. Select a Mounting Location: Mount the relay panel in a secure and accessible area inside the vehicle.
2. Install the Fuse Block: Mount the MEGA Fuse Block under the hood, close to the battery. Route the red 10-gauge feed wire from the relay panel to the fuse block.
3. Connect Power: Attach the red feed wire to the “Battery In” stud on the relay panel, then connect it to the MEGA Fuse Block and the battery.
4. Connect Ground: Secure the black 10-gauge ground wire to the “Ground In” stud on the panel and route it to a suitable chassis ground.
5. Wire the Switches and Motors: Connect the kit’s wires to the switches and motors according to the color-coded instructions, ensuring proper polarity reversing functionality.

BENEFITS OF USING THE AMERICAN AUTOWIRE 4-WINDOW POWER REVERSING RELAY KIT (AAW510962):

• Flexibility: Works with a variety of motor-driven accessories, not limited to power windows.
• Simplified Installation: Color-coded wires and long leads make wiring straightforward.
• System Protection: Includes self-resetting circuit breakers to safeguard the system against overloads.
• Versatility: Can be used as a standalone kit or integrated with American Autowire harnesses.
• Reliable Performance: 40-amp relays ensure consistent and dependable power delivery.

FEATURES:

• Compatible with both high- and low-amperage control switches.
• Durable G10 composite base plate ensures heat and electrical insulation.
• Relay labels and wires are color-coordinated for easy setup.
• Includes 120-inch wire leads for flexible mounting.
• Self-resetting circuit breakers provide built-in protection.
• Can function independently or integrate with American Autowire harnesses.
• Supports power windows, convertible tops, power seats, and antennas.
• Uses GXL polyethylene cross-link wires for durability and reliability.
