American Autowire 4-Position Banked Relay Panel (AAW510920)

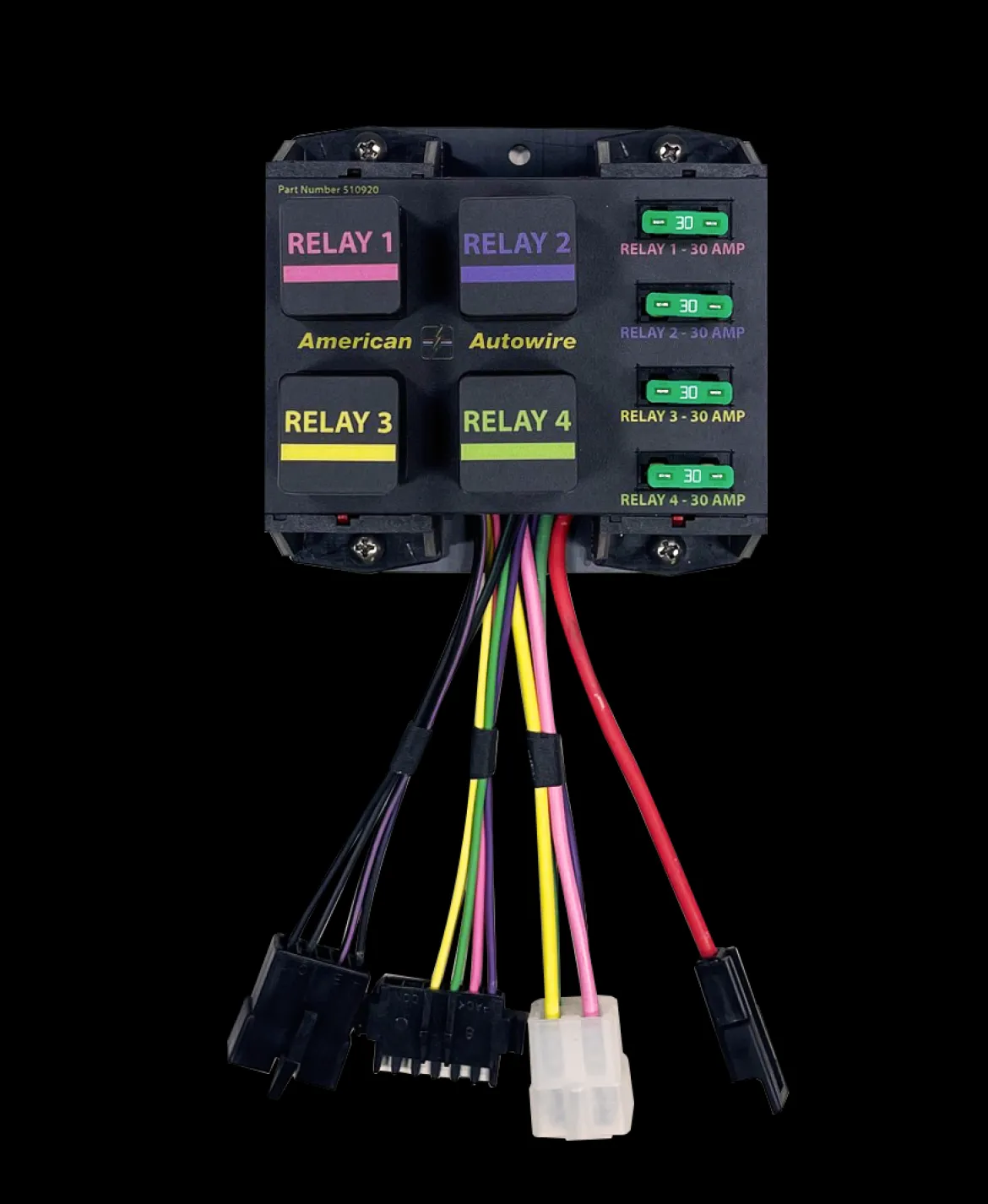

The American Autowire 4-Position Banked Relay Panel (AAW510920) is a complete and organized solution for managing your vehicle’s electrical accessories. Designed to streamline wiring for high-current components like electric cooling fans, fuel pumps, and auxiliary lighting, this panel provides a centralized hub for all your electrical needs. Its pre-assembled design, along with included hardware and wiring, ensures a straightforward installation that saves time and effort. Built with a non-conductive G10 composite base and heavy-duty 6-gauge bus bars, it delivers superior safety and performance while protecting your vehicle’s wiring from shorts and overloads.

KEY FEATURES AND BENEFITS:

• Centralized Control: Consolidates relays and fuses in one location for easy management of multiple electrical accessories.
• High Durability: Constructed with a G10 composite base and 6-gauge bus bars for long-lasting safety and strength.
• Time-Saving Installation: Pre-assembled panel includes wiring, relays, and hardware for quick setup.
• Versatile Use: Works well with high-current accessories like fans, pumps, and auxiliary lights.
• Clear Identification: Color-coordinated labels help organize and identify circuits quickly.

SPECIFICATIONS:

• Part Number: 510920
• Dimensions: 4.5 x 4.5 x 3.25 inches (L x W x H)
• Included in Kit:
  • Fully assembled relay panel
  • Four 30-amp relays
  • Fuses
  • 48-inch GXL wire lead
  • Color-coordinated labels
  • Detailed installation instructions
  • Mounting hardware

HOW TO USE:

• Mount the Panel: Choose a dry, secure location away from heat and moving parts. Use the included hardware to mount the panel.
• Connect the Power and Ground: Attach the 6-gauge power wire to a fused battery source and the ground wire to a chassis ground point.
• Wire the Accessories: Connect each accessory’s positive wire to an output terminal on the relay panel.
• Wire the Triggers: Attach the low-current trigger wires to the switches or sensors. Configure each relay for either 12-volt or ground activation as needed.
• Install Fuses and Relays: Place the provided 30-amp relays and fuses into the panel’s designated slots.
• Label and Test: Apply the color-coded labels to each circuit. Reconnect power and test each accessory to confirm proper operation.

BENEFITS OF USING AMERICAN AUTOWIRE 4-POSITION BANKED RELAY PANEL (AAW510920):

• Improved Organization: Combines all relays and fuses into one compact unit for a cleaner setup.
• Simplified Troubleshooting: Labeled circuits make it easy to check and diagnose issues in one central location.
• Enhanced Safety: Relays let low-current switches control high-current circuits, protecting factory wiring from damage.
• Professional Appearance: Pre-assembled components provide a neat, factory-like installation.
• Future Expansion: Offers a reliable foundation for adding new electrical accessories in the future.

FEATURES:

• Heavy-duty 6-gauge bus bar design supports high-current loads.
• Pre-assembled construction for quick installation.
• Non-conductive G10 composite base enhances safety and durability.
• Four relays configurable for either ground or 12-volt activation.
• Includes a 48-inch GXL wire lead resistant to heat and abrasion.
• Color-coded labels included for easy circuit identification.
• Universal design compatible with a wide range of automotive applications.
