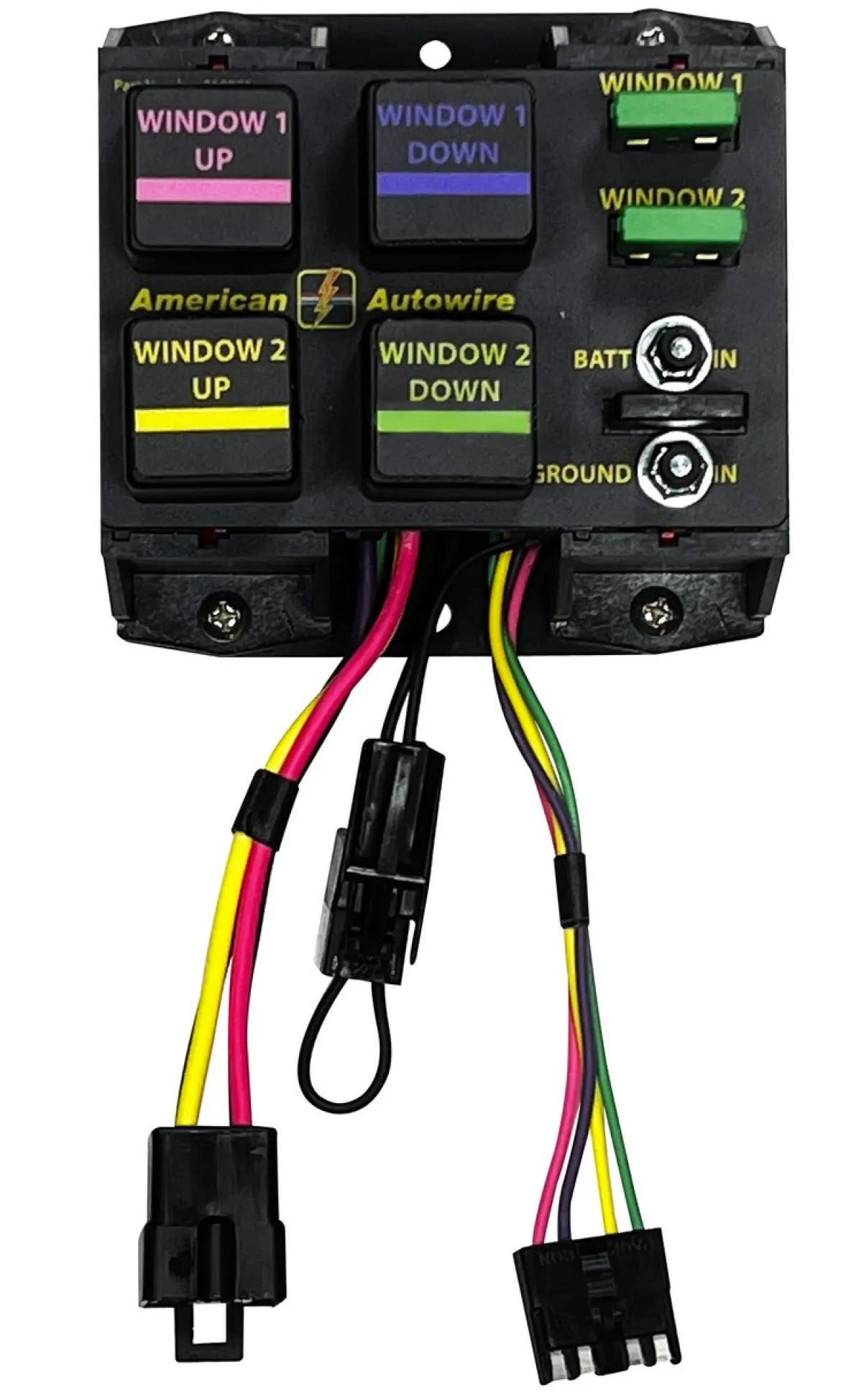

American Autowire 2-Window Power Reversing Relay Kit (AAW510961)

The American Autowire 2-Window Power Reversing Relay Kit (AAW510961) is a universal electrical solution designed to provide reliable reversing power for motor-controlled accessories in your vehicle. Most commonly used for power windows, it can also be applied to convertible tops, power seats, and antennas. Engineered to work as a standalone system or alongside other American Autowire harnesses, this kit features high-quality components that make installation straightforward for both professionals and enthusiasts.

KEY FEATURES AND BENEFITS:

• Reliable Performance: Equipped with four 40-amp relays to ensure strong and consistent power delivery for two motor-driven accessories.
• System Protection: Integrated self-resetting circuit breakers provide safer, more convenient protection compared to traditional fuses.
• Simple Installation: Color-coded relays and wires reduce guesswork and support both high- and low-amperage control switches.
• Flexible Mounting: Includes 120-inch wire leads for discreet or remote panel placement within the vehicle.

SPECIFICATIONS:

• Part Number: 510961
• Amperage Rating: 40 amps per relay
• Voltage: 12 V
• Wire Material: GXL polyethylene cross-link
• Base Plate Material: G10 composite
• Included in the Box:
  • Four 40-amp relays
  • G10 composite base plate
  • Pre-terminated wire leads
  • Self-resetting circuit breakers
  • Assorted butt splices, female terminals, and ring terminals
  • Rubber sleeves
  • Mounting hardware (screws/bolts not included)
  • Installation instructions

HOW TO USE:

• Disconnect the Battery: Always start by disconnecting the vehicle’s battery to prevent accidental shorts.
• Mount the Panel: Choose a suitable location inside the vehicle and mount the relay panel securely using screws or bolts.
• Connect Power and Ground: Route and attach the main power and ground wires to their appropriate sources as outlined in the instructions.
• Connect to Switches: Run the switch input wires to the vehicle’s power or ground-triggering switches, following the provided diagrams.
• Connect to Motors: Attach the motor leads from the panel to the power window motors or other accessories.
• Reconnect and Test: Reconnect the battery and test all functions to ensure proper system operation.

BENEFITS OF USING AMERICAN AUTOWIRE 2-WINDOW POWER REVERSING RELAY KIT (AAW510961):

• Simplifies complex wiring jobs with a complete, organized solution for power windows and other reversing motors.
• Durable GXL polyethylene cross-link wires offer superior resistance to heat and abrasion for long-lasting reliability.
• Self-resetting circuit breakers enhance safety and convenience, eliminating the need for fuse replacements.
• Universal design allows installation across a wide range of vehicles, from classics to custom builds.
• Comes with detailed instructions and access to American Autowire’s technical support for easier installation.

FEATURES:

• G10 composite base plate provides insulation and easy mounting.
• Universal design supports multiple applications in various vehicles.
• Wires made from durable GXL polyethylene cross-link material.
• Color-coded relays and leads simplify wiring and reduce errors.
• Integrated self-resetting circuit breakers improve safety.
• Compatible with both high-amperage and low-amperage control switches.
• Functions as a standalone system or with other American Autowire harnesses.
• 120-inch wire leads allow flexible panel mounting options.
• Accepts both positive- and ground-triggered signals from switches.
