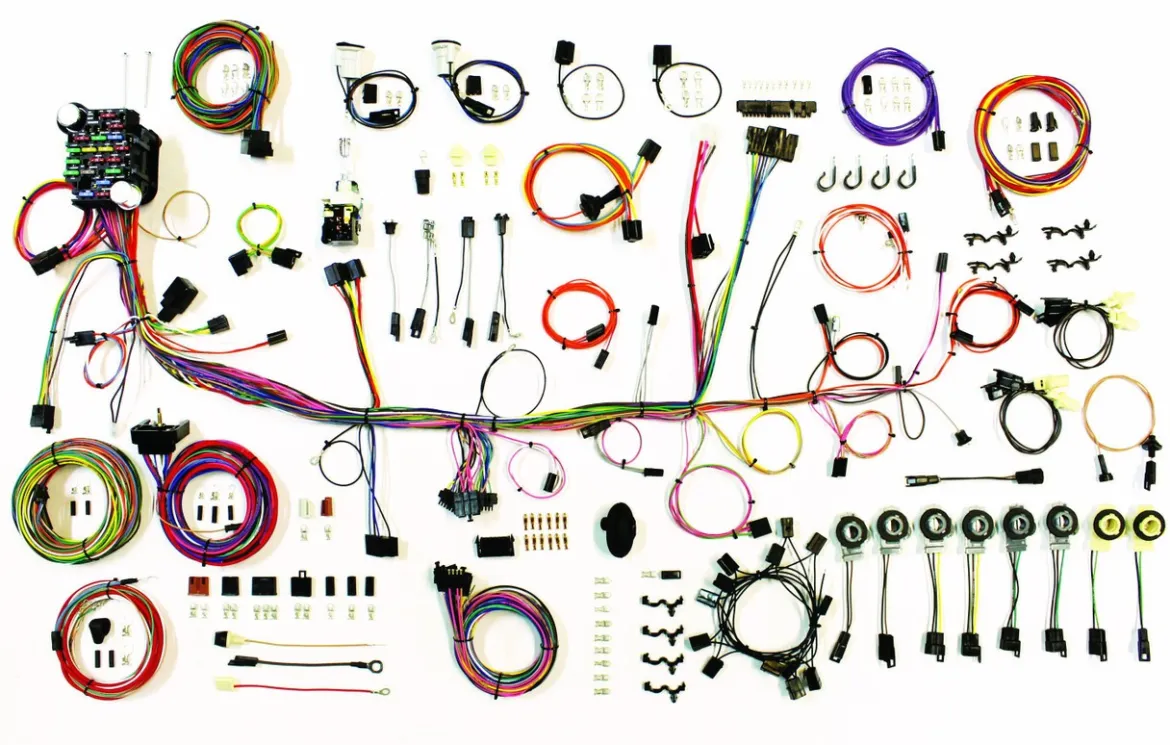

American Autowire 1979-80 Pontiac Firebird Update Kit (AAW510689)

The American Autowire 1979-80 Pontiac Firebird Update Kit (AAW510689) is a comprehensive wiring solution designed to replace and modernize the entire electrical system of your vehicle. Part of American Autowire’s “Classic Update” series, this kit is engineered for restoration and “resto-mod” projects that require more circuits and a robust system than the original factory harness. It provides a complete headlight-to-taillight wiring solution, ensuring a safe and reliable electrical foundation while accommodating modern components.

KEY FEATURES AND BENEFITS:

• Modernized Fuse Panel: Includes an ATC-style fuse panel and fuses for reliable, accessible circuit protection in the original location.
• Support for Aftermarket Components: Designed to accommodate EFI systems, aftermarket gauges, and modern A/C without splicing or custom wiring.
• Complete and Labeled Harnesses: Pre-built dash, engine, and rear body harnesses with wires labeled every few inches for easier installation and future troubleshooting.
• High-Output Charging System Support: 175-amp mega fuse kit and 6-gauge charge cable support modern high-output alternators.

SPECIFICATIONS:

• Wiring Material: GXL Automotive Wire
• Fuse Type: ATO (Blade-style)
• Main Dash Harness
• Engine and Front Light Harness
• Rear Body Wiring
• ATC Fuse Panel
• Headlight Switch with 26-amp circuit breaker
• New Floor Dimmer Switch
• 175-amp Mega Fuse Kit with 6-gauge charge cable
• Original-style bulkhead connectors
• Steering Column Connectors and Terminals
• Gauge Cluster Printed Circuit Board Connector and Terminals
• Hazard and Turn Signal Flashers
• Horn Relay

HOW TO USE:

• Prepare for Installation: Disconnect the battery and remove the old wiring harness. Lay out all new harness sections to familiarize yourself with components.
• Install the Dash Harness: Fit the pre-built dash harness in the original location. Use the gauge cluster disconnect system for easy connection to stock or aftermarket instruments.
• Install Engine and Front Light Harnesses: Route harnesses using original-style bulkhead connectors. Utilize extra-long leads for custom routing.
• Wire the Rear Body: Connect rear body wiring with extra-long leads to taillights, brake lights, and fuel sender unit.
• Connect Accessories and Power: Wire up EFI, aftermarket gauges, or charging system components. Connect the headlight switch, dimmer switch, and charging cable.
• Finalize Connections and Test: Double-check all wiring against schematics, reconnect the battery, and test lights, gauges, and all electrical functions.

BENEFITS OF USING AMERICAN AUTOWIRE 1979-80 PONTIAC FIREBIRD UPDATE KIT (AAW510689):

• Enhanced Reliability: Replaces brittle factory wiring with modern GXL wire and ATC fuse panel to reduce electrical failures and fire hazards.
• Simplified Installation: Vehicle-specific design, labeled wires, and pre-built sections save time and effort.
• Future-Proofing: Provides circuits and connectors for modern modifications, ensuring compatibility with future upgrades.
• Improved Safety: Built-in circuit breaker, fusible link protection, and modern fuse panel enhance safety and peace of mind.

FEATURES:

• Full 12-volt primary ignition feed for HEI and electronic ignition systems
• Extra-long leads on front and rear harnesses for custom routing
• Six-way power accessory plug for aftermarket items
• New horn relay mounted on the main dash harness
• New headlight switch with 26-amp internal circuit breaker
• Connectors and terminals compatible with original and many aftermarket gauges
• Full-color schematics and detailed instructions included
• Cluster harness disconnect system for easy service and assembly
• Switched trigger wire for electric fan relay
• Direct plug-in compatibility with most GM steering columns (1975-1980)
