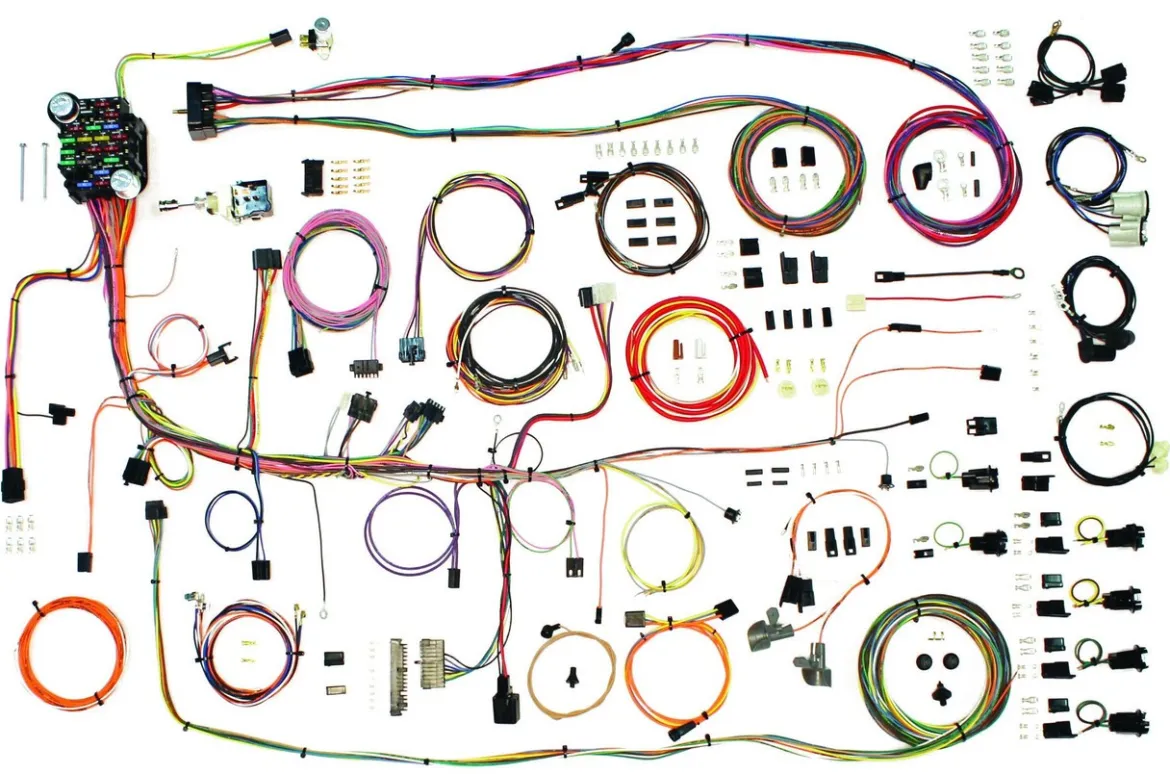

American Autowire 1969 Pontiac Firebird Classic Update Kit (AAW510622)

The American Autowire 1969 Pontiac Firebird Classic Update Kit (AAW510622) is a complete wiring upgrade designed to replace the factory harness in your classic Firebird. It provides additional circuits, modern electrical protection, and compatibility with aftermarket accessories, making it ideal for restoration or performance projects. From headlights to tail lights, this kit ensures reliable operation, safety, and support for modern components, all while maintaining a professional installation look.

KEY FEATURES AND BENEFITS:

• Comprehensive Wiring Solution: Provides a complete headlight-to-taillight harness, eliminating the risks associated with old, deteriorated wiring.
• Accommodates Modern Accessories: Designed with extra circuits for add-ons such as EFI, aftermarket gauges, A/C, and high-output charging systems.
• Simplified Installation: All GXL wires are labeled every 3–5 inches, with pre-built harnesses and a gauge cluster disconnect system for easier setup and service.
• Upgraded Safety and Reliability: Includes an ATC fuse panel with blade-style fuses and a 175-amp mega fuse kit to protect against shorts and overloads.

SPECIFICATIONS:

• Wire Type: GXL Automotive Wire
• Fuse Panel Type: ATC/ATO Fuse Panel
• Mega Fuse Rating: 175 amps
• Included in the Kit:
• Main dash harness
• Engine and front light harness
• Rear body wiring
• New headlight switch with 26-amp circuit breaker
• New floor dimmer switch
• 175-amp mega fuse kit with 6-gauge charge cable
• Original-style GM bulkhead connectors
• Original-replacement connectors, terminals, and lamp sockets
• Steering column connector for 69+ GM columns with mating connector for late-model columns
• Gauge cluster printed circuit board connector and terminals

HOW TO USE:

1. Remove the Old Harness: Disconnect and remove the original wiring harness from the dash, engine bay, and rear body, labeling any reusable parts.
2. Install the New Dash Harness: Mount the ATC fuse panel in the factory location and connect the labeled dash harness wires to switches and gauges.
3. Connect Engine and Front Lights: Route the engine and light harness through the bulkhead and connect to ignition, engine, and lighting components.
4. Install Rear Body Wiring: Run the rear harness to the back of the vehicle, connecting to tail lights, brake lights, license plate lamp, and fuel sender.
5. Finalize Connections: Secure all wiring, connect accessories as needed, and double-check connections before reconnecting the battery.

BENEFITS OF USING AMERICAN AUTOWIRE 1969 PONTIAC FIREBIRD CLASSIC UPDATE KIT (AAW510622):

• Safety: Replaces brittle, unsafe wiring with a modern system that meets current standards.
• Performance: Supports modern EFI, high-output alternators, and performance components.
• Reliability: Reduces the risk of shorts and failures with updated wire and fuse technology.
• Professional Finish: Uses original-style connectors for a clean, factory-like installation.
• Future-Proofing: Extra circuits ensure compatibility with future upgrades.

FEATURES:

• Updated ATO/ATC fuse panel with blade-style fuses.
• Modern GXL wire with clear function labels every 3–5 inches.
• Pre-built dash harness with gauge cluster disconnect system.
• Extra-long leads for engine and light harnesses to allow custom routing.
• Original-style bulkhead connectors included for a precise fit.
• Six-way accessory plug for additional power needs.
• Rear body harness with extended leads for flexible installation.
• 175-amp mega fuse kit with heavy-duty charge cable.
• Original-replacement connectors, terminals, and lamp sockets.
• New headlight switch with internal breaker and floor dimmer switch.
• Dash harness with 69+ GM steering column connector and late-model mating connector.
• Gauge cluster printed circuit board connector and terminals included.
