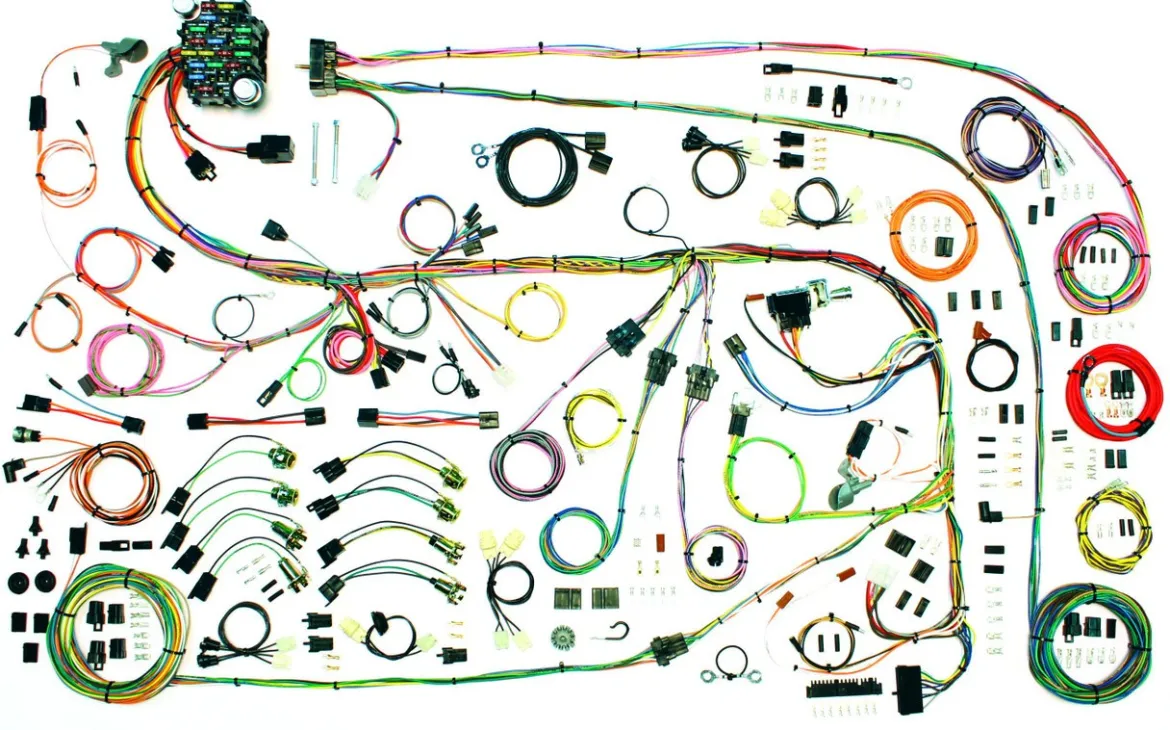

American Autowire 1967-75 Mopar A Body Classic Update Kit (AAW510603)

The American Autowire 1967-75 Mopar A Body Classic Update Kit (AAW510603) is a complete wiring solution for modern restoration and modified Mopar A-Body projects. It replaces the entire original electrical system, providing a safer, more reliable foundation that can handle the power demands of modern accessories and modifications. From headlights to taillights, this kit ensures your classic vehicle has a robust and versatile electrical network.

KEY FEATURES AND BENEFITS:

• Comprehensive Wiring Solution: Pre-built harnesses and labeled GXL wire simplify installation for the dash, engine, and rear body.
• Modern Fuse Panel: 21-circuit ATC (blade-style) fuse panel provides more circuits for contemporary electronics.
• High-Performance Support: Includes high-amp components like a 175-amp mega fuse kit and 6-gauge charge cable for high-output alternators.
• Compatibility with Modern Upgrades: Supports electronic fuel injection (EFI), aftermarket gauges, and other popular modifications.
• User-Friendly Installation: Labeled wires, gauge cluster disconnect system, and full-color schematics make installation straightforward.

SPECIFICATIONS:

• Fuse Panel: 21-circuit ATC (blade-style)
• Wire Type: Modern GXL wire
• Charge Cable: 6-gauge included
• Mega Fuse: 175-amp mega fuse kit included
• Pre-built dash harness with gauge cluster disconnect system
• Engine and front light harness
• Rear body harness
• Replacement headlight switch with circuit breaker
• New floor dimmer switch
• Original-replacement connectors, terminals, and lamp sockets
• Steering column adapter kit
• Printed circuit board connector and terminals
• Full-color schematics and detailed instructions

HOW TO USE:

• Disconnect the Battery: Ensure the battery is fully disconnected to prevent electrical shorts or injury.
• Remove Old Wiring: Carefully remove the existing harness, noting component locations.
• Install the New Fuse Panel: Mount the 21-circuit ATC fuse panel using the provided template if modifications are required.
• Install the Harnesses: Route the dash harness first, connecting it to the steering column, gauges, and switches.
• Connect Engine and Rear Harnesses: Route the engine/front light and rear body harnesses, connecting to the appropriate components.
• Finalize Connections: Secure all wires and ensure routing away from heat or moving parts.
• Reconnect Power and Test: Reconnect the battery and verify all electrical systems, including lights, horn, turn signals, and gauges.

BENEFITS OF USING AMERICAN AUTOWIRE 1967-75 MOPAR A BODY CLASSIC UPDATE KIT (AAW510603):

• Improved Safety: Replaces brittle, aging wiring with modern GXL wire and a reliable fuse panel.
• Supports Modern Accessories: Handles EFI, high-output alternators, and aftermarket electronics without overloading circuits.
• Complete Solution: Includes all necessary components for a full rewire from front to rear.
• Time-Saving Installation: Pre-built harnesses, labeled wires, and included instructions simplify the process.
• Reliable Performance: Provides a robust electrical foundation for both restoration and modification projects.

FEATURES:

• 21-circuit ATC fuse panel for modern electronics
• Labeled wires every 3-5 inches for easy identification
• Pre-built dash harness with gauge cluster disconnect system
• Engine and front light harness with extra-long leads for custom routing
• Six-way power accessory plug for add-on items
• Rear body harness with extra-long leads for flexible routing
• Replacement headlight switch with built-in 26-amp circuit breaker
• Steering column adapter kit compatible with stock or aftermarket columns
