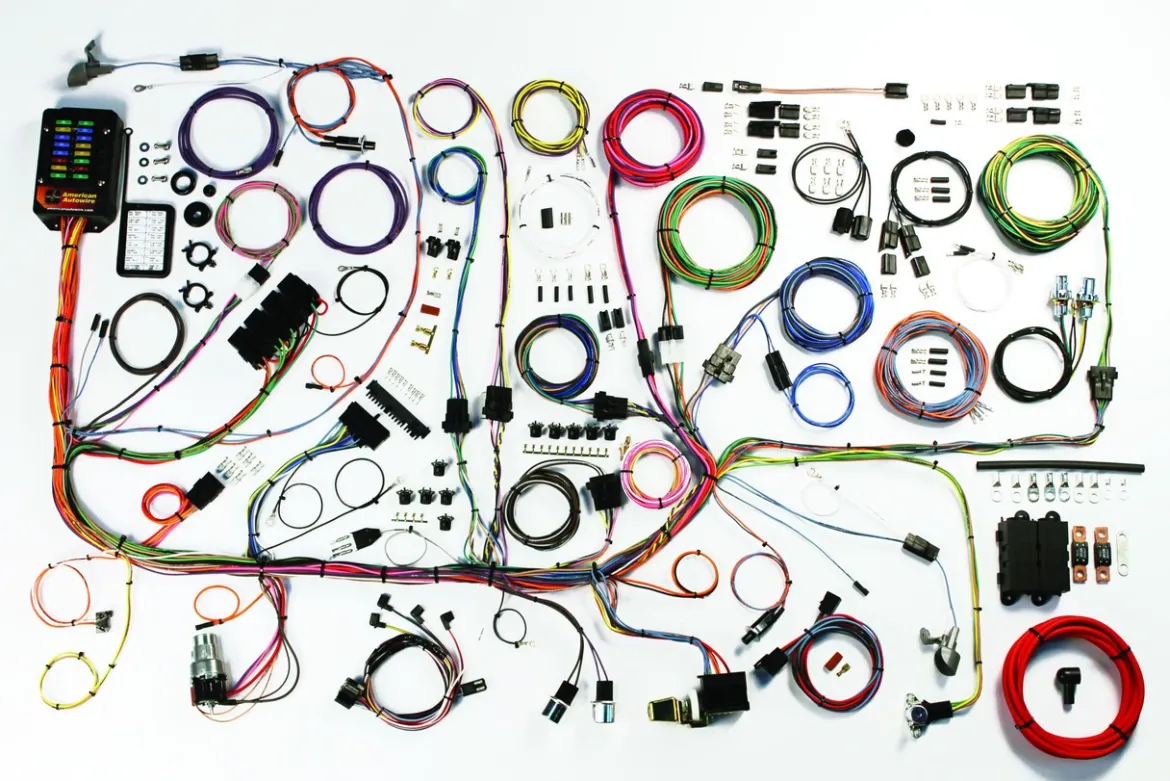

American Autowire 1967-68 Ford Mustang Classic Update Kit (AAW510055)

The American Autowire 1967-68 Ford Mustang Classic Update Kit (AAW510055) is a complete wiring solution designed to modernize and replace your Mustang’s entire electrical system. Engineered specifically for modified vehicles and restomod projects, this kit provides more circuits, higher capacity, and reliable performance compared to the original factory wiring. It ensures your classic Mustang can safely support today’s popular aftermarket upgrades, including electronic fuel injection, high-output alternators, power windows, and aftermarket gauges.

KEY FEATURES AND BENEFITS:

• All-in-One Solution: Provides every harness, connector, and component required to completely rewire your vehicle from front to back.
• Modern Fuse Panel: Includes an updated ATO fuse panel with more circuits for powering accessories like EFI, A/C, or power windows.
• Labeled Wiring: Modern GXL wires are clearly labeled every 3-5 inches, simplifying both installation and future troubleshooting.
• Gauge Cluster Disconnect: Pre-built dash harness includes a dedicated disconnect system for easier service of the instrument panel.
• Custom Routing: Extra-long leads on engine and rear body harnesses allow flexible routing options for a cleaner installation.
• High-Output Ready: Supports high-output alternators with included 175-amp mega fuse kit and 6-gauge charge cable.

SPECIFICATIONS:

• Part Number: AAW510055
• Application: 1967-1968 Ford Mustang (modified vehicles and restomods)
• Included Components:
  • New ATO fuse panel and fuses
  • Complete dash harness with gauge cluster disconnect system
  • Engine harness with extra-long leads
  • Front light harness with extra-long leads
  • Rear body harness with extra-long leads
  • Replacement headlight switch and floor dimmer switch
  • Replacement ignition switch
  • 175-amp mega fuse kit with 6-gauge charge cable
  • Headlight, fog light, and horn relays
  • Steering column adapter kit
  • Power accessory plug
  • Original-style connectors, terminals, and lamp sockets
  • Full-color schematics and detailed instructions

HOW TO USE:

1. Preparation: Disconnect the battery, remove all factory wiring, and review the included instructions and color schematics.
2. Mount the Fuse Panel: Secure the updated ATO fuse panel in the designated location on the firewall, away from heat ducts.
3. Install Harnesses: Connect the dash harness to the fuse panel, then install the engine, front light, and rear body harnesses using the supplied connectors.
4. Wire Components: Use the labeled wires to connect lights, alternator, ignition, gauges, and any aftermarket accessories. Extra-long leads allow for custom routing.
5. Finalize Connections: Crimp all terminals securely, install the mega fuse kit, reconnect the battery, and test all circuits to confirm functionality.

BENEFITS OF USING AMERICAN AUTOWIRE 1967-68 FORD MUSTANG CLASSIC UPDATE KIT (AAW510055):

• Improves safety by replacing old, brittle wiring prone to shorts and fire hazards.
• Ensures reliable performance with modern GXL wiring and updated circuit protection.
• Supports expansion with dedicated circuits for EFI, A/C, power windows, and aftermarket gauges.
• Enhances performance by supporting high-output charging and ignition systems.
• Simplifies installation and service with labeled wires and modular harness design.

FEATURES:

• Complete wiring replacement from headlights to taillights.
• Updated ATO fuse panel with modern circuit capacity.
• High-quality GXL wire with clear function labeling every 3-5 inches.
• Pre-built dash harness with gauge cluster disconnect system.
• Extra-long engine and rear harness leads for flexible installation.
• Power accessory plug for easy integration of add-ons.
• Built-in relays for headlights, fog lights, and horn.
• Replacement ignition switch, headlight switch, and dimmer switch included.
• 175-amp mega fuse kit with heavy-duty charge cable.
• Compatible with stock or aftermarket steering columns.
