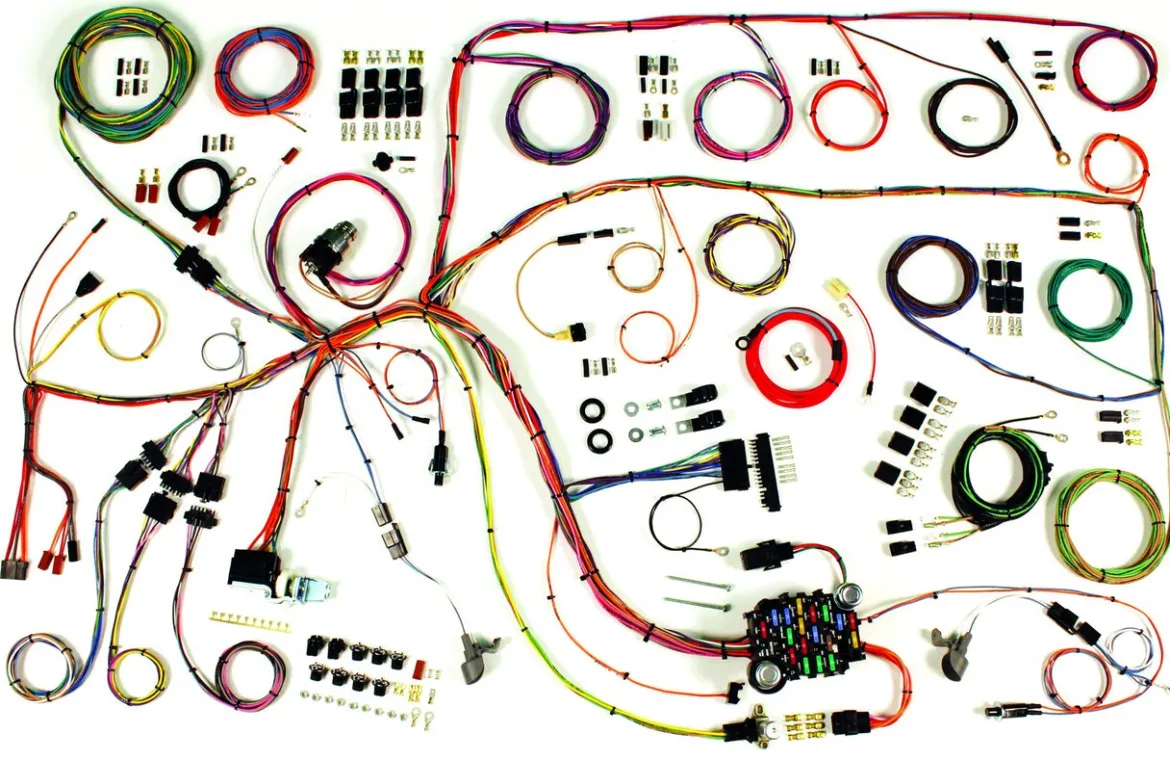

American Autowire 1965 Ford Falcon Classic Update Kit (AAW510386)

The American Autowire 1965 Ford Falcon Classic Update Kit (AAW510386) is a complete wiring solution designed to replace and modernize the electrical system of your classic vehicle. It is engineered for projects requiring more circuits than the original harness, making it ideal for modified cars and restomods. Covering the entire system from headlights to taillights, this kit provides a dependable electrical foundation that supports popular upgrades such as EFI, aftermarket gauges, air conditioning, and power windows.

KEY FEATURES AND BENEFITS:

• Modernization and Adaptability: Provides more circuits than factory wiring, allowing seamless integration of EFI and other aftermarket accessories.
• Ease of Installation: Wires are labeled every 3–5 inches, with detailed instructions and color schematics included.
• Comprehensive Coverage: Includes pre-built dash, engine, front light, and rear body harnesses for complete system replacement.
• Exclusive Gauge Cluster System: Features a disconnect system for easier service and compatibility with popular aftermarket gauge brands.
• High-Quality Components: Built with modern GXL wire and an updated ATC fuse panel for improved durability and reliability.

SPECIFICATIONS:

• Capacity: Complete vehicle harness made from modern GXL wire
• Included Components:
  • Updated ATC fuse panel and fuses
  • Pre-built dash harness
  • Engine and front light harness with extra-long leads
  • Rear body harness with extra-long leads
  • New headlight switch with 26-amp internal circuit breaker
  • New floor dimmer switch
  • Replacement ignition switch
  • 175-amp mega fuse kit with 6-gauge charge cable
  • Original-style connectors, terminals, and lamp sockets
  • Steering column adapter kit
  • Six-way power accessory plug
  • New door jamb switches and leads
  • Separate under-dash courtesy lamp assemblies
  • Detailed installation instructions and color schematics

HOW TO USE:

1. Preparation: Disconnect the battery and remove the old harness, documenting connections for reference.
2. Mount the Fuse Panel: Install the updated ATC fuse panel securely under the dash.
3. Install the Harnesses: Start with the dash harness, then route the engine/front light and rear body harnesses using the extra-long leads.
4. Connect Accessories: Use the provided diagrams to connect wiring to headlights, taillights, sensors, switches, and aftermarket components.
5. Final Checks and Power-Up: Verify all connections against the schematics, reconnect the battery, and test every circuit.

BENEFITS OF USING AMERICAN AUTOWIRE 1965 FORD FALCON CLASSIC UPDATE KIT (AAW510386):

• Boosts reliability with modern, heat- and abrasion-resistant wiring.
• Supports modern upgrades like EFI, power windows, and high-output audio systems.
• Enhances safety with built-in circuit protection and high-capacity fusing.
• Reduces installation difficulty with labeled wires and pre-built harnesses.
• Allows custom routing with extra-long wire leads for a clean and professional finish.

FEATURES:

• Updated Fuse System: Includes an ATC-style fuse panel with modern fuses for safer performance.
• Pre-Built Harnesses: Dash, engine, front light, and rear body harnesses are included with extended leads.
• Gauge Cluster Serviceability: Exclusive disconnect system for simplified cluster maintenance.
• Accessory Integration: Six-way power plug makes it easy to add aftermarket devices.
• Essential Components: Comes with headlight switch, dimmer switch, and replacement ignition switch.
• Compatibility: Works with HEI, EFI, and both stock or aftermarket steering columns.
• Labeled Wiring: Every wire is printed with its function for quick installation and troubleshooting.
• Durable Construction: Harness built with GXL wire for superior resistance to heat and wear.
