American Autowire 1953-56 Ford Truck Classic Update Kit (AAW510303)

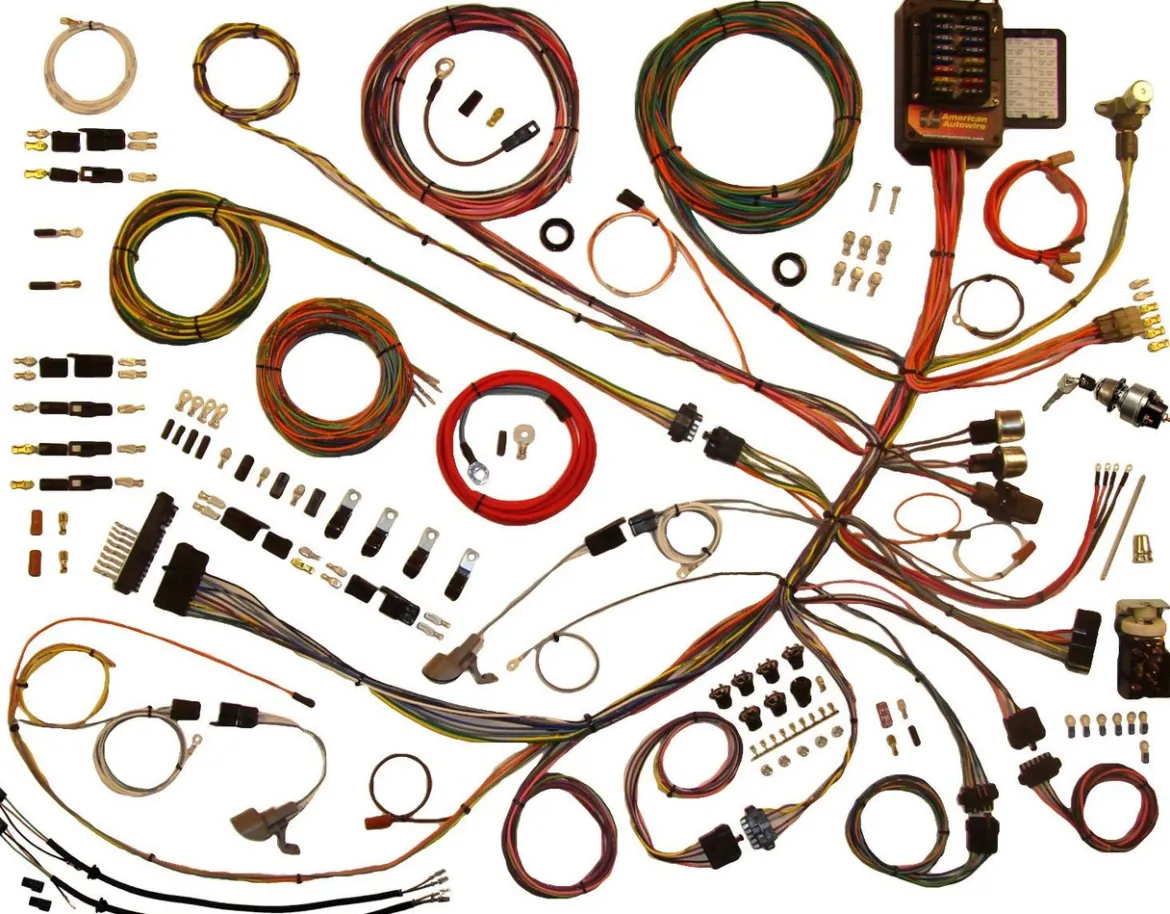

The American Autowire 1953-56 Ford Truck Classic Update Kit (AAW510303) is a complete wiring solution designed to replace the factory harness in your classic Ford F-Series truck. Covering everything from headlights to taillights, this kit provides a reliable and modern electrical foundation capable of supporting today’s aftermarket accessories. It ensures safety, simplifies installation, and maintains a professional, factory-like appearance while enhancing functionality for restorations and modifications alike.

KEY FEATURES AND BENEFITS:

• Modern Electrical Upgrade: Replaces the outdated factory harness with a modern system built for safety and reliability.
• Labeled ATO Fuse Panel: Fully labeled panel identifies all circuits and fuse ratings for easy troubleshooting and maintenance.
• Gauge Cluster Disconnect: Exclusive system simplifies installation and service of both stock and aftermarket gauges.
• High-Output Support: Includes heavy-gauge alternator feed and 175-amp mega fuse kit to handle high-output charging systems.
• Labeled Wiring: All GXL wires are clearly labeled every few inches for simple circuit identification.
• Upgraded Switches: New headlight switch with integrated circuit breaker and a new floor dimmer switch are included.

SPECIFICATIONS:

• Part Number: AAW510303
• Application: 1953-1956 Ford F-Series Trucks (F-100, F-250, F-350, and Panel Trucks)
• Fuse Style: ATO/ATC Blade Fuses
• Wire Type: Modern GXL
• Included Components:
  • Main dash harness with pre-installed fuse panel
  • Engine and front light harness
  • Rear body wiring harness
  • New headlight switch with circuit breaker
  • New floor dimmer switch
  • New ignition switch with dash bezel
  • Standard turn signal flasher
  • Hazard flasher
  • Horn relay
  • Gauge cluster disconnect system
  • 175 amp mega fuse kit
  • Steering column adapter kit
  • Door jamb switches
  • Courtesy lamp assemblies
  • All necessary terminals and connectors

HOW TO USE:

1. Preparation: Disconnect the truck’s battery and remove the old wiring. Review the included full-color schematics and instructions to understand the circuit layout.
2. Mounting: Install the new ATO fuse panel under the dash in a clean, accessible location.
3. Dash Harness Installation: Connect the main dash harness to switches and gauges. The gauge cluster disconnect simplifies service and installation.
4. Forward Harness Installation: Route the engine and front light harness through the firewall, then connect headlights, signals, alternator, engine sensors, and related components.
5. Rear Harness Installation: Run the rear body harness along the chassis to connect taillights, license plate lamp, and fuel tank sender.
6. Final Connections: Reconnect the battery and test all circuits including lights, gauges, and accessories.

BENEFITS OF USING AMERICAN AUTOWIRE 1953-56 FORD TRUCK CLASSIC UPDATE KIT (AAW510303):

• Eliminates common issues of aging wiring such as shorts, intermittent failures, and fire hazards.
• Provides additional circuits to support modern upgrades like EFI, air conditioning, and sound systems.
• Ensures a safe, reliable, and professional-quality electrical system.
• Saves time and effort by supplying all necessary harnesses, switches, and connectors in one kit.
• Simplifies installation with clear labeling, full-color schematics, and direct-fit components.

FEATURES:

• Full-length leads on front and rear harnesses for flexible custom routing.
• Includes a six-way power accessory plug for convenient add-ons.
• Compatible with stock and aftermarket gauges using provided connectors and terminals.
• Heavy-duty wiring supports electric choke and fan relays.
• Fully compatible with HEI and EFI engine swaps.
• Labeled wires every 3-5 inches simplify circuit identification.
• Includes a new ignition switch with bezel for a refreshed factory appearance.
• Direct plug-in compatibility with most aftermarket steering columns.
