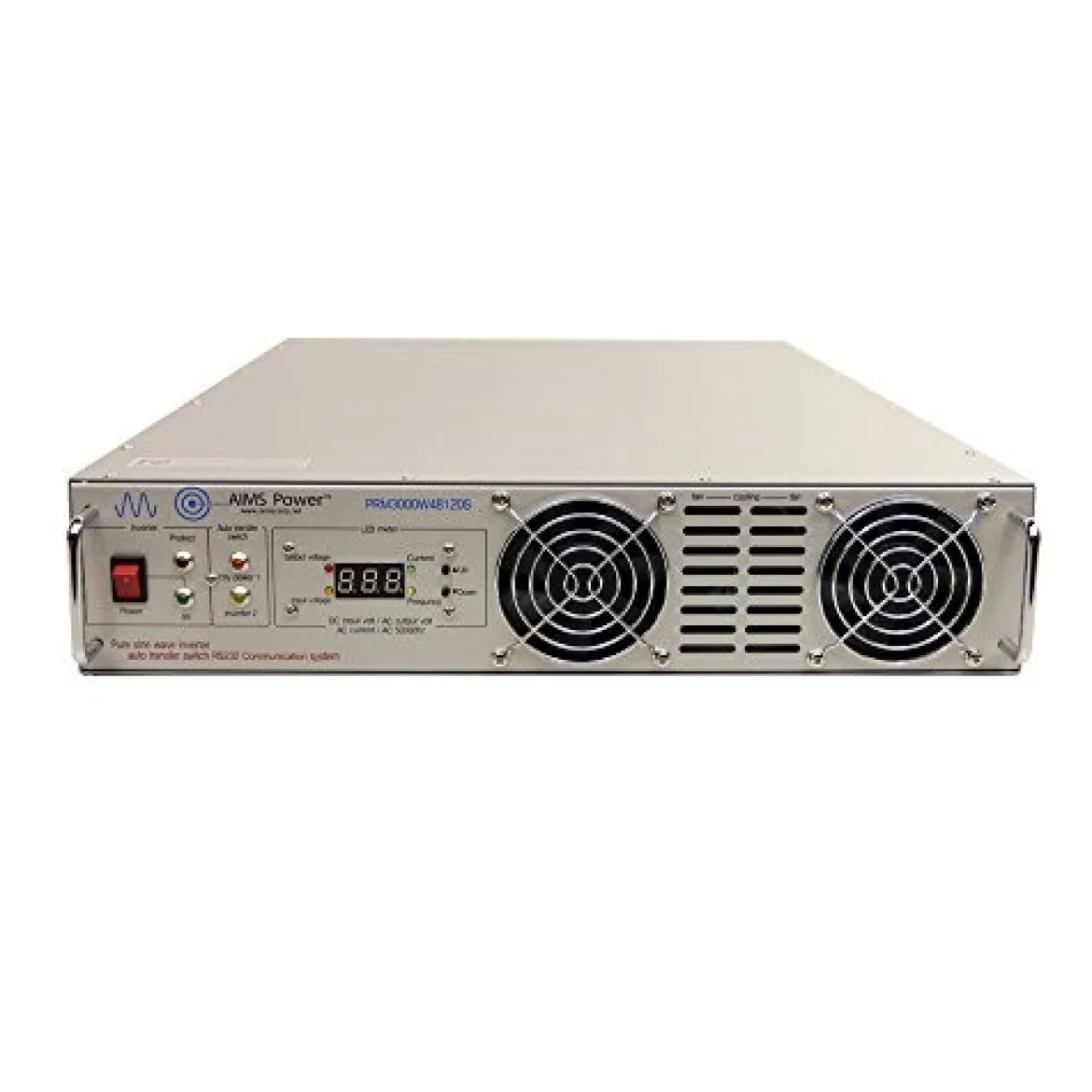

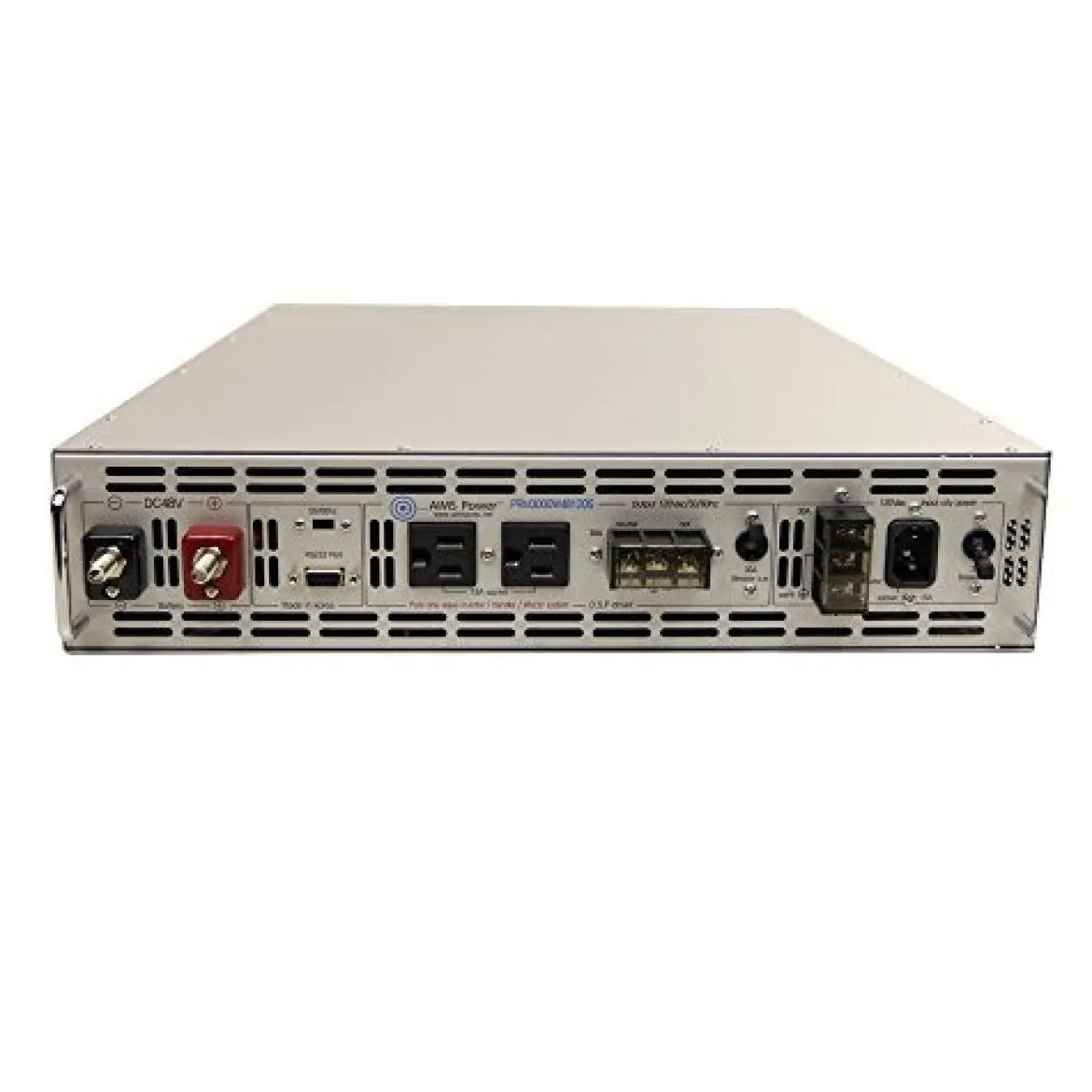

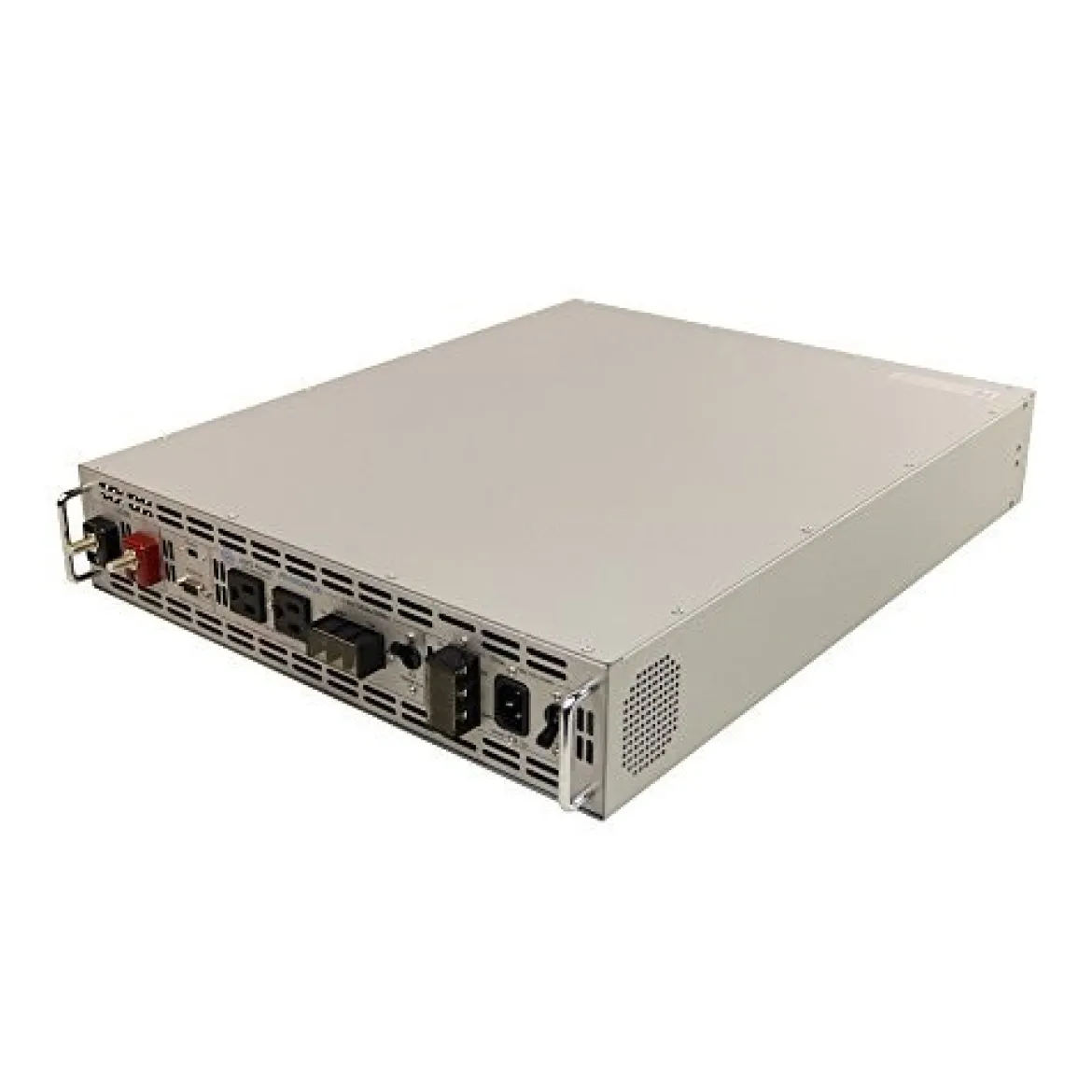

AIMS Power Rack Mount Inverter 3000W Continuous Power (PRM3000W48120S)

The AIMS Power Rack Mount Inverter 3000W Continuous Power (PRM3000W48120S) is designed to deliver reliable, efficient power conversion with a pure sine wave output. This inverter is ideal for various applications, providing continuous power and surge capability. Advanced features such as an automatic transfer switch, overload protection, and a thermal-based fan ensure safe and stable performance in various conditions. Additionally, the built-in RS232 communication port allows for monitoring via PC, and the digital status display provides at-a-glance operational information. It is FCC Class B compliant, ensuring minimal electromagnetic interference.

Specifications:

• Continuous output power: 3000 Watts
• Surge power capability (peak power): 6000 Watts
• DC input operating voltage: 41.0 to 60.0 Volts
• Output voltage: 120 Volts AC
• Output waveform: Pure sine wave
• Output frequency: 60 Hz
• Low battery voltage shutdown: 40.6 Volts
• Low battery voltage recovery: 42.5 Volts
• High battery shutdown: 61 Volts
• High battery power return: 59 Volts
• No load power consumption: 0.30A DC (Fan Off), 0.42A DC (Fan On)
• Efficiency: 91%
• Over temperature protection low: -4°F ± 5°F
• Over temperature protection high: 172°F ± 5°F
• Transfer switch time: 16-18 msec
• Operating temperature recovery: 136°F (automatic shutdown) ± 5°F
• AC output socket type: Dual Type 2, 3-prong
• AC output and bypass protection: 34A breaker
• FCC Class B compliance: F690501/RF-EMC000377(H)
• Unit weight: 27.6 lbs.
• Unit dimensions: 20.9 x 16.5 x 3.5 inches

Key Features:

• Pure sine wave output for stable power
• 48V DC to 120V AC conversion
• RS232 communication for PC monitoring
• Dual AC receptacles with 34A breaker protection
• Automatic transfer switch and utility power bypass
• Overload, short circuit, and over-temperature protection
• Thermal and load-based fan for cooling
• Digital status display for easy monitoring
• 1-year warranty with free tech support
